    20AWG Hook-Up Wire, UL1015, 600V, 2000 ft

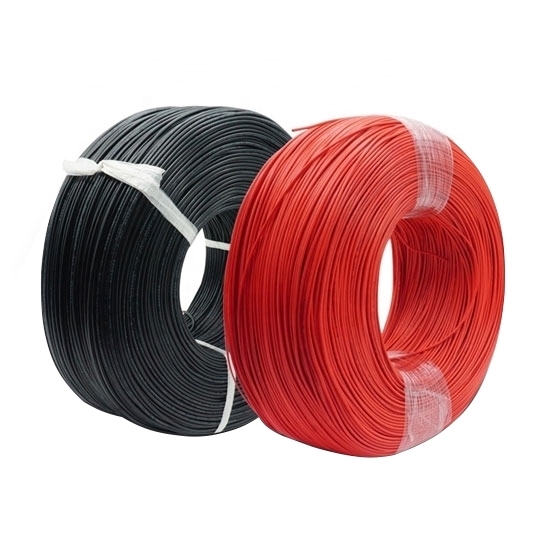

    Picture of 20AWG Hook-Up Wire, UL1015, 600V, 2000 ft
    Picture of 20AWG Hook-Up Wire, UL1015, 600V, 2000 ft

    20AWG Hook-Up Wire, UL1015, 600V, 2000 ft

    5 out of 5 based on 2 reviews | Write a review
    $216.39
    Electric stranded hook-up wire with economical price, 22AWG, 600V rated voltage, 2000 ft/ roll, meets UL 1015 standard for tinned copper wire, selectable different colors of insulated PVC outer cover.
    *
    SKU: ATO-UL1015-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1015-20
    UL Style 1015
    Size 20 AWG
    Rated Voltage 600V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 105 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005） NO. 21/ 0.18mm
    Conductor Resistance 20℃ 36.70 Ω/km
    Conductor Diameter 0.95mm
    Insulation PVC
    Insulation Thickness Nom. 0.80mm
    Min. 0.69mm
    Overall Diameter Average 2.55mm
    Tolerance ±0.10mm
    Package 2000 ft/roll
    Weight 7kg

    Details

    Details of UL1015 20AWG Isulated Copper Wire

    Tips: What kinds of insulated wires are there?

    The insulated wire has PVC insulated wire, PVC insulated flexible wire, nitrile soft PVC compounds insulated wire, rubber insulated wire, PVC insulated nylon sheathed wire, electric power and lighting soft PVC insulated wire and so on.

    Existing reviews of 20AWG Hook-Up Wire, UL1015, 600V, 2000 ft
    Solid 20AWG hook-up wire
    If you're not practiced in soldering, this is very convenient as it lets you keep the iron on the wire longer without risk of melting the jacket. The colors on the 20AWG hook-up wires are bright and easy to distinguish.
    From: Chean | Date: 31/10/2022
    Was this review helpful? Yes No (0/0)
    Good wire for the money.
    Nice 20AWG 600V hook-up wire. It was exactly what I needed at a good price. I love this wire and will be buying more in multiple sizes.
    From: Franklin | Date: 14/03/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 20AWG Hook-Up Wire, UL1015, 600V, 2000 ft
    • Only registered users can write reviews
    • Bad
    • Excellent
