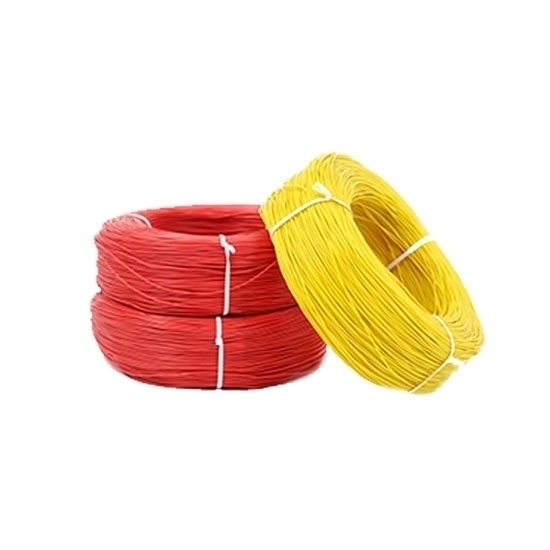

26AWG Hook-Up Wire, UL1007, 300V, 2000 ft

5 out of 5 based on 2 reviews | Write a review
$110.79
26AWG electrical insulated hook-up wire with low price, 300V rated voltage, 2000 ft. /roll. It meets UL 1007 standard for tinned cooper wire and PVC outer cover for insulation. Different colors for your choices.
*
SKU: ATO-UL1007-26
30-day Returns
Free Shipping
Delivery date: 6-12 days

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model ATO-UL1007-26
UL Style 1007
Size 26 AWG
Rated Voltage 300V
Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature 80 ℃
Conductor Tinned/ Bare Copper
Conductor Type Stranded
Conductor Size (±0.005) NO. 7/ 0.16mm
Conductor Resistance 20℃ 150 Ω/km
Conductor Diameter 0.48mm
Insulation PVC
Insulation Thickness Nom. 0.40mm
Min. 0.33mm
Overall Diameter Average 1.28mm
Tolerance ±0.1mm
Package 2000 ft/roll
Weight 4kg

Details

Details of UL1007 26AWG Isulated Copper Wire

Tips: Difference between UL1007 wire and UL1571 wire

  1. Different pressure and temperature
    The rated voltage of UL1007 wire is 300V, the rated temperature is 80℃. The rated voltage of UL1571 wire is 600V, the rated temperature is 105℃.
  2. Different insulation thickness
    UL1571 wire is thicker than UL1007 wire.
  3. Different wire diameter
    UL1007 wire is thinner than UL1571 wire in outer diameter.
Existing reviews of 26AWG Hook-Up Wire, UL1007, 300V, 2000 ft
Flexible 26AWG hook-up wire
This 26AWG hook-up wire is pretty great. Very flexible, I haven't noticed any desire to retain a shape, which is perfect. Super easy to twist-braid into a twisted pair, which stays super flexible.
From: Glack | Date: 01/06/2022
Was this review helpful? Yes No (0/0)
Would buy again
10 colors of PVC insulated 26AWG hook-up wires are available from this seller. The connecting cords are a must-have for your workbench, these items even come in bright-colored. I am very happy with the quality of all the items included. I would buy it again.
From: Poythress | Date: 30/05/2022
