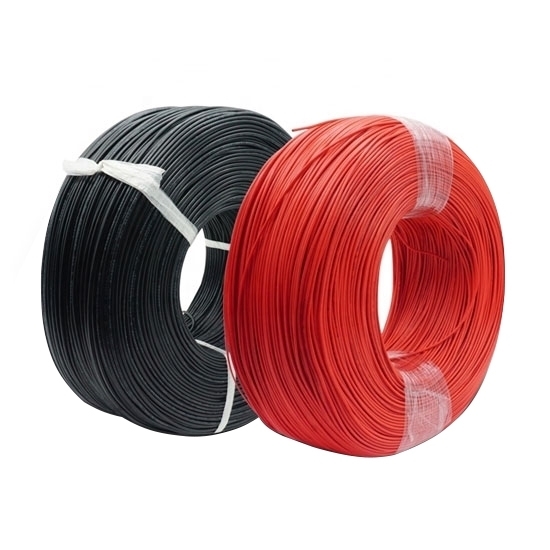

    22AWG Hook-Up Wire, UL1015, 600V, 2000 ft

    $177.49
    22AWG stranded hook-up wire meets UL 1015 standard for tinned copper wire, 600V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.
    SKU: ATO-UL1015-22
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1015-22
    UL Style 1015
    Size 22 AWG
    Rated Voltage 600V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 105 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005) NO. 17/ 0.16mm
    Conductor Resistance 20℃ 59.40 Ω/km
    Conductor Diameter 0.76mm
    Insulation PVC
    Insulation Thickness Nom. 0.80mm
    Min. 0.69mm
    Overall Diameter Average 2.36mm
    Tolerance ±0.10mm
    Package 2000 ft/roll
    Weight 6kg

    Details

    Details of UL1015 22AWG Isulated Copper Wire
