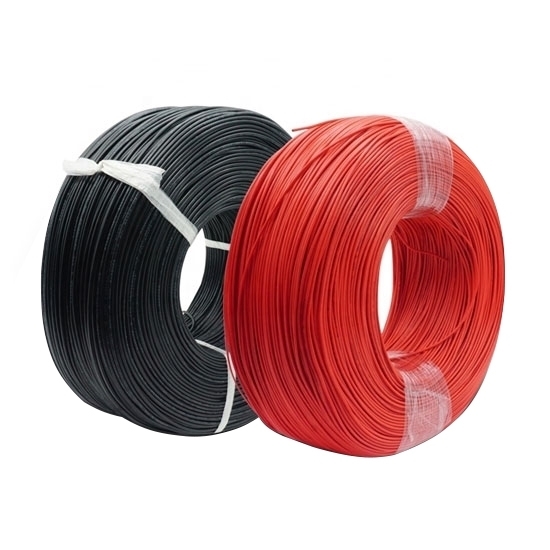

    16AWG Hook-Up Wire, UL1015, 600V, 1000 ft

    $238.29
    Affordable price 16AWG stranded hook-up wire, 600V, 1000 ft., with different color PVC outer cover for insulation, meets UL 1015 standard for tinned or bare copper wire. Electric Insulated cable is suitable for use in wiring appliances and electronics.
    SKU: ATO-UL1015-16
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1015-16
    UL Style 1015
    Size 16 AWG
    Rated Voltage 600V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 105 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005) NO. 26/ 0.254mm
    Conductor Resistance 20℃ 14.60 Ω/km
    Conductor Diameter 1.50mm
    Insulation PVC
    Insulation Thickness Nom. 0.80mm
    Min. 0.69mm
    Overall Diameter Average 3.10mm
    Tolerance ±0.10mm
    Package 1000 ft/roll
    Weight 7kg

    Details

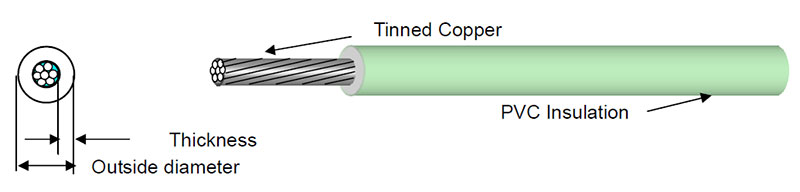

    Details of UL1015 16AWG Isulated Copper Wire

    Tips: How to prevent damage and aging of UL wires?

    Wires and cables are very important in daily production and life environment, they directly determine whether the whole electricity environment to achieve more security and stability of the standard. If the quality of the wire is poor or it is damaged, it will lead to electricity environment severely affected, even may appear unexpected circumstances. Therefore, how can we prevent the damage of wire and cable aging?

    • Determine the safe carrying capacity of the wire
      The use of electrical appliances should pay attention to the safe current carrying capacity of the wire in the circuit, the current seriously exceeds the safe current carrying capacity of the wire, which is easy to affect the service life. Although there is no change in a short time, but for a long time it is easy to trip and short circuit, but also easy to lead to accelerate aging of the wire and cause danger.
    • Regular maintenance must be carried out
      If you want to better prevent aging of wires, you need to check them regularly. Only in this way can we ensure the safety of the power lines. Any small problems can be found in advance, and they can be repaired in time to avoid affecting the normal use of the circuit.

    Through these ways, which can avoid wire always appear in the process of application of accidental damage and aging condition, ensure the quality of the use of wire and cable is more stable, make electrical wiring of the use function fully display, achieve more safe and efficient use of effect.
