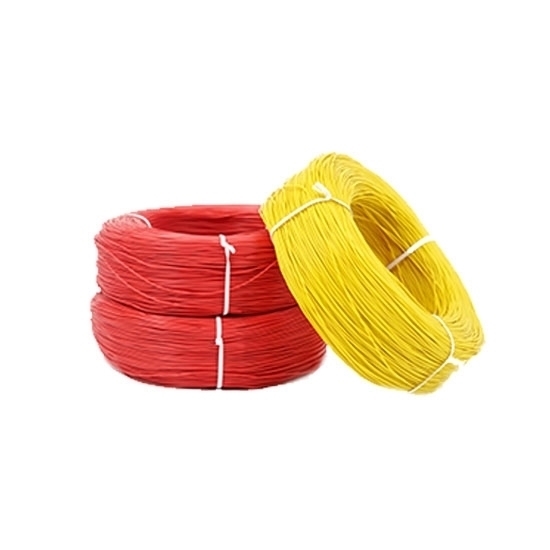

24AWG Hook-Up Wire, UL1007, 300V, 2000 ft

5 out of 5 based on 2 reviews | Write a review

$128.99

24AWG stranded hook-up wire meets UL 1007 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.

Color *

SKU: ATO-UL1007-24

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

ATO hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

Model		ATO-UL1007-24
UL Style		1007
Size		24 AWG
Rated Voltage		300V
Color (Optional)		White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature		80 ℃
Conductor		Tinned/ Bare Copper
Conductor Type		Stranded
Conductor Size (±0.005）		NO. 11/ 0.16mm
Conductor Resistance 20℃		94.20 Ω/km
Conductor Diameter		0.61mm
Insulation		PVC
Insulation Thickness	Nom.	0.40mm
	Min.	0.33mm
Overall Diameter	Average	1.41mm
	Tolerance	±0.1mm
Package		2000 ft/roll
Weight		5kg

Details

Details of UL1007 24AWG Isulated Copper Wire

Existing reviews of 24AWG Hook-Up Wire, UL1007, 300V, 2000 ft

Nice hook up wire

It's very flexible. This is the best hook-up wire I have ever used. Use it in a prototype circuit that is easy to strip for connections. These insulated wires are great for hooking up wires and short distances for power and signals.

From: Raden | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

flexible hook-up wire

This 24AWG hook-up wire is pretty great. Very flexible, I haven't noticed any desire to retain a shape, which is perfect. Super easy to twist-braid into a twisted pair, which stays super flexible.

From: Nguyen | Date: 25/05/2022

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 24AWG Hook-Up Wire, UL1007, 300V, 2000 ft
