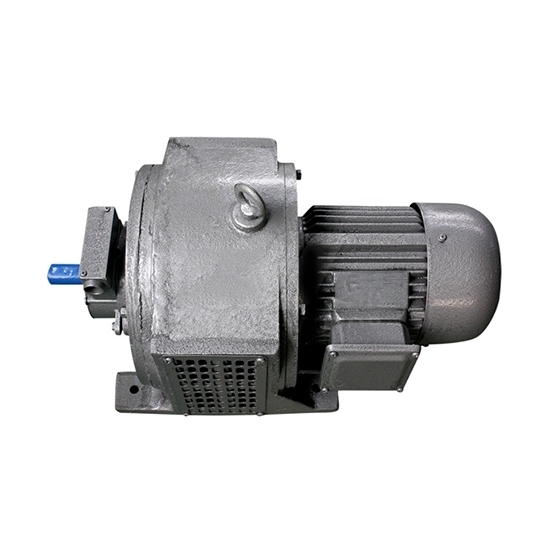

1hp (750W) 3-Phase Asynchronous Motor with Clutch

5 out of 5 based on 1 reviews | Write a review

$1,097.53

4-pole asynchronous motor with clutch, three phase, with rated power of 1 hp or 750W, working voltage 380V 50Hz, available with the speed adjustable range 1250-125r/min. Low price, high reliability and simple operation.

With Controller *

SKU: ATO-AMWC-750W

Qty:

30-day Returns

Delivery date: 10-20 days

Overview
Related Video

1 hp (750W) 3-phase asynchronous motor with clutch features 1250rpm of rated speed, rated torque 4.9Nm It can widely used in textile, chemical, metallurgy, building materials, food mining, paper making, plastic and other industries.

1hp (750W) Asynchronous Motor Specification

Model	ATO-YCT112-4B
Capacity	1hp (750W)
Rated Torque	4.9Nm
Speed Adjustable Range	1250-125r/min
Speed Changing Rate	3%
Rated Voltage	380V
Installation	B3
Frequency	50Hz
Phase	3 phase
Certification	CE, CCC, IS9001, IS2008
IP Grade	IP21
Efficiency	IE1/IE2/IE3
Frame	Cast Iron or aluminum
Weight	55kg
Ambient temperature	-15℃~40℃
Altitude	not exceeding 1000 Meters
Duty	Continuous running
Insulation Grade	B
Warranty	1 year
Cooling Method	IC411

1hp (750W) 3-phase Asynchronous Motor Dimensions

Model	YCT112-4B
Mounting Dimension & Tolerance (mm)	A	Basic Size	190
	A/2	Basic Size	95
	WB	Basic Size	210
	WC	Basic Size	40
	WC	Limit Size	±1.5
	D	Basic Size	24
	D	Limit Tolerance	+0.009 -0.004
	E	Basic Size	40
	E	Limit Tolerance	±0.31
	F	Basic Size	6
	F	Limit Tolerance	-0.030
	G	Basic Size	15.5
	G	Limit Tolerance	-0.1
	H	Basic Size	112
	H	Limit Tolerance	0
	K	Basic Size	12
		Limit Tolerance	±0.43
		Position Tolerance	Φ 1.0 Ⓜ
Mounting Dimension & Tolerance (mm)	AB	240
	AC	260
	AD	150
	HD	280
	L	490

Details

750w Asynchronous Motor with Clutch Details

Tips: The Features of 1hp (750W) 3-Phase Asynchronous Motor with Clutch.

High speed rotation of over 10,00r/min is easily achieved.
High operating efficiency at high speed and low torque.
High torque at low speed, and wide speed control range.
High reliability (robustness).
Low manufacturing cost.
Simplicity of control devices.

Three-phase Motor to Single-phase (380V to 220V)
If a frequency converter is beyond your budget or availability, one way to run a three-phase motor from single-phase power is to use capacitors. In this tutorial, the step-by-step process of adapting a motor for single-phase operation is demonstrated by showing the correct capacitor sizing and wiring configuration.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of 1hp (750W) 3-Phase Asynchronous Motor with Clutch

Clutch Feature

The inclusion of a clutch adds versatility to the motor's functionality. It allows for disengaging the motor when needed, which is handy for tasks that require intermittent operation.
