1 hp Non-Enclosure VFD, 1ph Input, 3ph Output

5 out of 5 based on 5 reviews | Write a review

$142.46

Cheap price 1 hp non-enclosure VFD, 208V to 240V single phase input variable frequency drive, single phase 220v to three phase output, compact board VFD with high quality performance, ideal for integrate system solutions.

SKU: GK3300-2S0007

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video
Documents

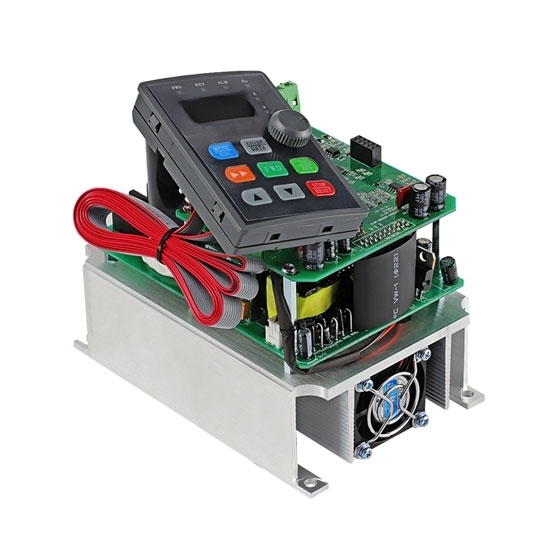

Affordable 0.75 kW single phase VFD, non shell design, single phase 220V/230V input, single phase to three phase output, for 1-phase and 3-phase motor speed adjustment.

Specification:

Basics	Model	GK3300-2S0007
	Capacity	1 hp (0.75 kW)
	Shipping weight	887 g
	Dimension (LWH)	15098114 mm
I/O Feature	Rated current	4.7 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Why need to oversize the single phase VFD
The variable frequency drive supplied by ATO.com can operate with single phase input. However, to provide three phase power to the AC motor when only single phase input power is obtained, for this application, the internal components of the 1-phase VFD must be enlarged, otherwise the load must be decreased. Either way, VFDs in 1 phase applications must be oversized to withstand the increased bus voltage ripple and increased input current. If you do not oversize variable frequency drive for the motor in a single phase application, what is waiting for you will be continuous failures.

This video includes three parts: 1. What is customized equipment? 2. Difference between non-enclosure and standard VFDs. 3. Pratical operation of ATO non-enclosure VFD. All above explains the features, functions and working of non-enclosure VFD.

In this video, ATO will show you the vfd basic troubleshooting guide.

This video will show you how to measure electrical circuit using digital multimeter.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

How to control multiple VFDs via Modbus

ATO VFD supports multi-unit linkage. In a short time, you don't have to turn on each VFD. You can start/stop/modify parameters at the same time with one key.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

VFD Troubleshooting Guide
