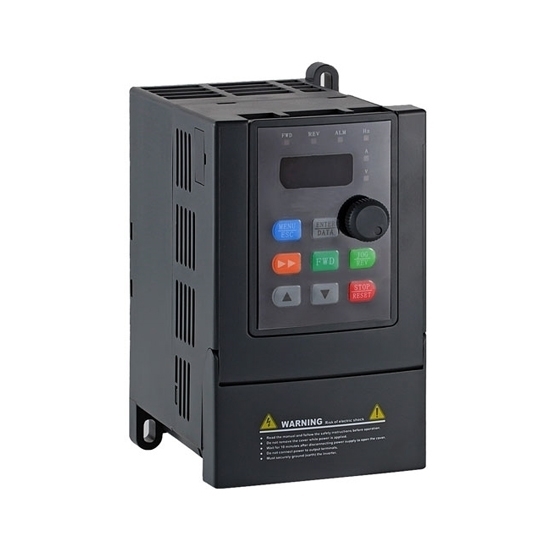

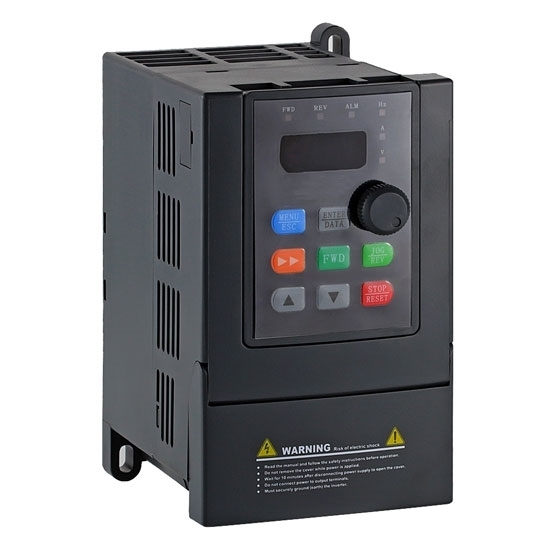

    1 hp (0.75 kW) VFD, Single Phase Input & Output

    $185.82
    Affordable 1 hp VFD, 1 phase for single phase AC induction motor, 220V - 240V 7 amps, manufacturer direct sale.
    SKU: GK3000-1S0007
    Free shipping
    Delivery date: 6-12 days

    1 hp variable frequency drive, 0.75 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

    Specification:

    Basics Model GK3000-1S0007
    Capacity 1 hp (0.75 kW)
    Shipping weight 1.2 kg
    Dimension 124.8*78*148.4 mm
    I/O Feature Rated current 7 A
    Input voltage single phase AC 220V±15%
    Input frequency 47~63Hz
    Output voltage 0~rated input voltage
    Output frequency V/f control: 0~3000Hz
    Over load capacity 150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
    Control Features Control mode V/f control
    Operation command mode Keypad control, Terminal control, Serial communication control
    Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
    Starting torque 1 Hz/150%
    Speed adjustment range 1:50
    Carrier frequency 1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
    Frequency accuracy Digital setting: 0.01Hz
    Analog setting: Maximum frequency * 0.05%
    Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0%
    V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
    Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
    DC braking DC braking when starting and stopping
    DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
    Jog operation Jog operation frequency: 0.0Hz~maximum frequency
    Jog acceleration/deceleration time: 0.1s~3600.0s
    Simple PLC & multi-step speed operation It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
    Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
    Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
    Control Function Common DC bus Common DC bus for several VFDs, energy balanced automatically
    Torque control Torque control without PG
    Torque limit "Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
    Wobble frequency control Multiple triangular-wave frequency control, special for textile
    Timing/length/counting control Timing/length/counting control function
    Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
    Fault protection function Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
    Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI:
    AI1: 0~10V or 0/4~20mA
    A12: 0~10V or 0/4~20mA
    Output terminals 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
    2 relay output
    2 analog output: 0/4~20mA or 0~10V
    Communication terminals Offer RS485 communication interface, support MODBUS-RTU communication protocol

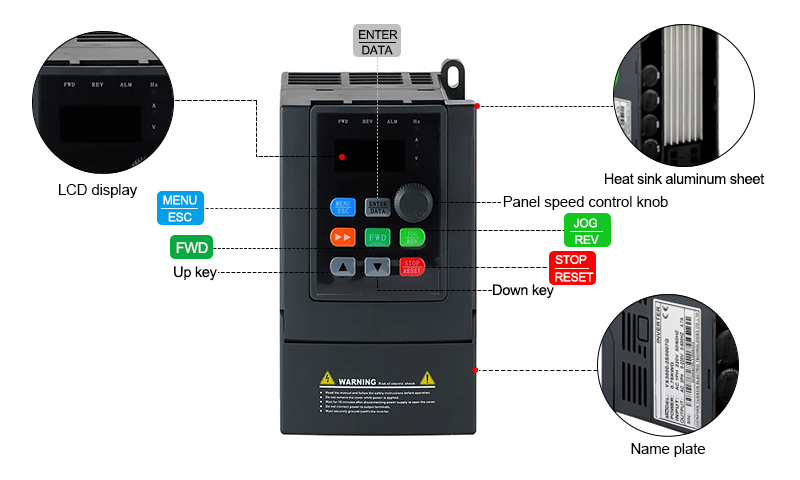

    Human machine interface LED display Display frequency setting, output frequency, output voltage, output current, etc.
    Multifunction key QUICK/JOG key, can be used as multifunction key
    Environment Ambient temperature -10℃~40℃, derated 4% when the temperature rise by every 1℃ (40℃~50℃).
    Humidity 90%RH or less (non-condensing)
    Altitude ≤1000M: Output rated power, >1000M: Output derated
    Storage temperature -20℃~60℃

    Tips: Variable frequency drive applications

    1. Air conditioner load
      Office buildings, shopping malls, supermarkets and some factories have central air conditioner. In the summer electricity peak, large city air conditioner power consumption accounted for more than 40% of peak power. Therefore, using variable frequency drive to drag the air conditioning system, refrigeration pumps, cold water pumps and fans is a very good energy-saving technology.
    2. Crusher load
      Metallurgical mines and building material industry use a lot of crushers and grinding mills, these machineries have significant effect using variable frequency drive.
    3. Large furnace calciner furnace load
      Metallurgy, building materials, caustic soda and other large industrial rotary kiln uses DC motor, commutator motor, slip motor, cascade speed control and medium frequency unit speed control before. Because of these speed control mode or a slip ring have low efficiency, in recent years, many companies use frequency control, the effect is excellent.
    4. Compressor load
      Low-pressure compressors are widely used in various industrial sectors, high-pressure high-capacity compressors has more applications in steel, mining, fertilizer, ethylene industries. Using frequency control will bring low starting current, energy saving, optimizing equipment and other advantages.
    5. Rolling mill load
      The metallurgical industry uses AC-DC-AC VFD, and the multi-rack aluminum rolling unit uses general-purpose VFD to meet the low-frequency load starting. The variable frequency drive has advantages of inter-rack synchronous operation, constant tension control, simple and reliable operation.
    6. Winding engine load
      Iron mill blast furnace hoist equipment requires smooth boot and brake, balance speed adjusting and high reliability. These machineries use cascade, DC or rotor string resistance speed mode with low efficiency and poor reliability before. But, using VFD instead of the old speed control mode can achieve the desired results.
    7. Revolving furnace load
      Using AC variable frequency drive to replace DC unit in revolving furnace will get simple, reliable and stable operation.
    8. Roller load
      Roller load is mostly used in the iron and steel metallurgy industry. Using AC motor frequency control can improve equipment reliability and stability.

    ATO GK3000 VFD wiring instruction for single phase induction motor
    Single phase induction motor has specific wiring requirements in connecting with ATO single phase VFD to enable your single phase motor running properly, please follow below instructions step by step:
    VFD wiring instruction for single phase motor
    Step 1: Single phase motor has one or two capacitors, disassembly them. The VFD output can't have capacitor.
    Step 2: VFD Common Terminal: Running the VFD at 50Hz without connecting loads, measuring the output voltages of U-V, U-W, and V-W, two of three voltage values are the same, their common port is VFD's common terminal. Usually the default common terminal is V phase. (The output voltage is a bit higher for the non-common terminal)
    Step 3: Single phase motor has 3 windings and 6 taps. Base on the measuring results of the resistance by a multimeter, the biggest resistance is the secondary winding (Z1, Z2), the smaller resistance is the main winding (U1, U2), the smallest resistance (conducting) is centrifugal switch (V1, V2).
    Step 4: The Coupling End of the single phase motor secondary winding (Z2) and main winding (U2) is connected to the VFD's output common terminal (V phase).
    Step 5: The Coupling End of the single phase motor main winding (U1) and centrifugal switch (V1) is connected to the VFD's U phase. The Coupling End of the secondary winding (Z1) and capacitor is connected to the VFD's W phase. In case of the induction motor running in reverse, please exchange the VFD's U phase and W phase.
    ATO VFD wiring instruction for single phase motor without disassembling capacitors
    Connecting the single phase motor input lines (L, N) to ATO VFD's V, U or W terminals. Generally V Phase should be connected, U or W is optional. Refer to below wiring picture:
    VFD wiring instruction for 1 phase motor with capacitors
