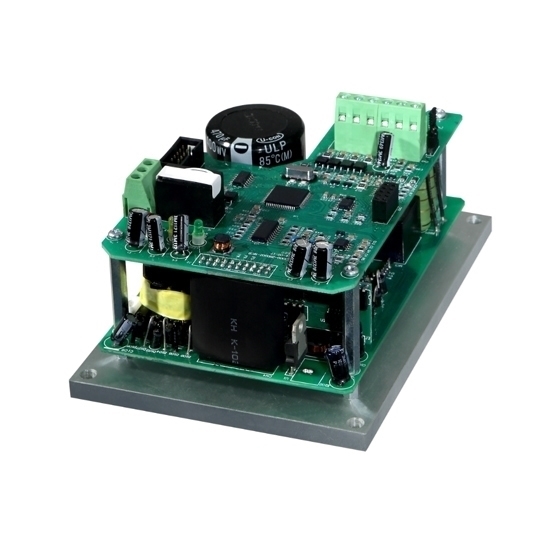

1/2 hp Non-Enclosure VFD, 1ph Input, 3ph Output

5 out of 5 based on 4 reviews | Write a review

$137.68

Factory direct sale 1/2hp 0.4kW VFD, custom-made non enclosure frequency inverter, compact and lightweight, multiple drives can be housed in a cabinet, single phase 220V/230V input, three phase 220v-240v output.

SKU: GK3300-2S0004

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Low cost 1/2 hp (400w) non enclosure variable frequency drive, single phase 220V ±15% input, convert single phase to 3 phase, 3 amps, wide range speed adjustment.

Specification:

Basics	Model	GK3300-2S0004
	Capacity	1/2 hp (0.4 kW)
	Shipping weight	665 g
	Dimension (LWH)	15110473 mm
I/O Feature	Rated current	3 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: A lot of money can be saved through VFD
Turning off only 10% of the fans and water pumps can save up to 25% of energy costs. In most systems, reducing its speed by 50% will result in a 75% reduction in energy consumption.
VFD helps your business operate more efficiently by using only the energy needed.
VFD extends the service life of equipment by reducing wear. Maintenance costs are also reduced.

This video includes three parts: 1. What is customized equipment? 2. Difference between non-enclosure and standard VFDs. 3. Pratical operation of ATO non-enclosure VFD. All above explains the features, functions and working of non-enclosure VFD.

In this video, ATO will show you the vfd basic troubleshooting guide.

This video will show you how to measure electrical circuit using digital multimeter.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

How to control multiple VFDs via Modbus

ATO VFD supports multi-unit linkage. In a short time, you don't have to turn on each VFD. You can start/stop/modify parameters at the same time with one key.

Existing reviews of 1/2 hp Non-Enclosure VFD, 1ph Input, 3ph Output

To what terminals can I do that?

I need to setup a pump dry float that will turn off the VFD. To what terminals can I do that?

From: Farrah | Date: 01/03/2023

Was this review helpful? Yes No (0/0)

ATO Responded

If your dry float has a normally open dry contact (NO), you can connect this dry contact to the X1 and COM terminals of the VFD. When the dry float has a signal, the normally open contact is closed, connecting the X1 and COM terminals, and the VFD stops. (Please set P4.00=11, define X1 terminal as stop signal)

I want to know some information about VFD

Hello, I have a drive EM15-SP1S1 input 120V single phase and output 240V 3 phases. I need to know the parameter to adjust the overcurrent protection and the detection time of overcurrent protection. Thank you.

From: Angelak | Date: 06/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

It is a pity that the overcurrent protection of this model is based on the hardware design (more than 2 times the rated current), so it cannot be set on the software. You can use it normally first. If there is any problem, please let us know.

According to our needs, you can buy your VFD?

We have a 5hp deep well pump. I would like soft start capabilities. Supply is 1 phase 220. If I purchase your single phase to 3 phase unit, can it be used with 3 phase input as just a vfd? If so, do any capabilities change.

From: Rlbrignac | Date: 24/08/2021

Was this review helpful? Yes No (0/0)

ATO Responded

If your motor is rated at 3-phase, 208/220/230V, and its rated current is less than 20A, then you can use our 7.5hp drive, of model: GK3000-2S0055G.

Full information sent by 1/2hp non enclosure VFD

The 1/2hp non enclosure VFD information sent by ATO.com customer service is complete. I have sent you the relevant information about the 1/2hp non enclosure VFD that I want to buy. I will place an order this spring.

From: Wallace | Date: 10/03/2021

Was this review helpful? Yes No (0/0)
