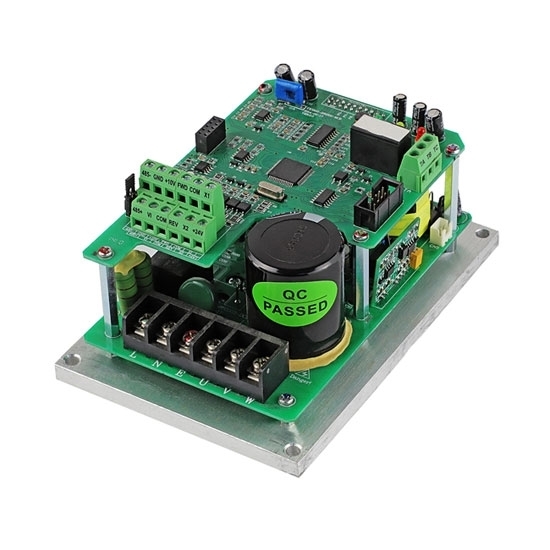

    1/4 hp Non-Enclosure VFD, 1ph Input, 3ph Output

    1/4 hp Non-Enclosure VFD, 1ph Input, 3ph Output

    5 out of 5 based on 5 reviews | Write a review
    $129.89
    Customized no shell single phase VFD for sale, 1/4 hp (200 W) capacity variable speed drive, convert single phase 208~240v to 3ph, high torque output, high accurate control, suitable for various motor speed controls.
    SKU: GK3300-2S0002
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1/4 hp single phase VFD without enclosure, 0.2 kW, 220V single phase to 3 phase 220 volt output variable frequency drive, sale by manufacturer directly.

    Specification:

    Basics Model GK3300-2S0002
    Capacity 1/4 hp (0.2 kW)
    Shipping weight 665 g
    Dimension (L*W*H) 151*104*73 mm
    I/O Feature Rated current 1.6 A
    Input voltage 1 phase 220~240V AC
    Input frequency 50Hz/ 60Hz
    Output voltage 3 phase AC 0~input voltage
    Output frequency 0Hz~1000Hz
    Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
    Control Feature Control mode V/F control;
    Sensorless vector control;
    Communication RS485
    Speed regulation 1:100
    Start torque 150% of rating torque at 1 Hz
    Speed control accuracy ≤±0.5% of rating synchronous speed
    Frequency precision Digital setting: max frequency x± 0.01%;
    Analog setting: max frequency x± 0.2%
    Frequency resolution Analog setting: 0.1% of max frequency;
    Digital setting: 0.01Hz
    Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
    Interior PID controller Be convenient to make closed-loop system
    Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
    Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
    Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
    Environment Enclosure rating IP 20
    Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
    Humidity 5%-95%, without condensation
    Altitude ≤1000m; VFD will be derated if above 1000m
    Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
    Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

    Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

    Tips: The application usually determines the control mode of the VFD
    Volts per Hertz (V/F)
    V/F controls the ratio between voltage and frequency to change the motor flux, thereby providing the motor with operating torque. The V/F drive works well for most applications such as fans and water pumps.
    Sensorless vector
    Sensorless vector VFDs are known for their precise speed control over a wide speed range without encoder feedback, because they work well in open loop. The closed loop VFD uses encoder feedback to perform precise speed control by monitoring the actual motor speed and slip information. Sensorless vector and closed-loop VFD have excellent speed regulation, providing accurate speed control for paper mills, printing presses and other conversion applications.

    This video includes three parts: 1. What is customized equipment? 2. Difference between non-enclosure and standard VFDs. 3. Pratical operation of ATO non-enclosure VFD. All above explains the features, functions and working of non-enclosure VFD.

    In this video, ATO will show you the vfd basic troubleshooting guide.

    This video will show you how to measure electrical circuit using digital multimeter.

    In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

    How to control multiple VFDs via Modbus

    ATO VFD supports multi-unit linkage. In a short time, you don't have to turn on each VFD. You can start/stop/modify parameters at the same time with one key.

    How to call different VFD ports to enable different speeds

    The above video is also called multi-speed operation. Similarly, we can use PLC or relay to control the speed of VFD at different stages.

    How to control VFD with 0-10V (CI port)

    This is port CI usage method for 0~10V to control the frequency of ATO GK3000 upgrade version. It is suitable for 1-phase, 1-phase to 3-phase, and 3-phase VFD.

    VFD analog input 0-10V frequency control (VI port)

    ATO GK3000 VFD uses external voltage analog to control the frequency so as to achieve the purpose of motor speed regulation.

    VFD analog input 0-10V frequency control (VI port)

    ATO GK3000 VFD uses external voltage analog to control the frequency so as to achieve the purpose of motor speed regulation.

    Control VFD with potentiometer & button (VI port)

    ATO GK3000 vector VFD supports control of synchronous motors, and supports external potentiometer and button control.

    Existing reviews of 1/4 hp Non-Enclosure VFD, 1ph Input, 3ph Output
    delivery in india
    Can it be delivered in india ?
    From: Rajat | Date: 03/05/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, it can.
    Has this VFD been approved?
    Is this VFD CSA approved? And what is the max amperage input, recommended breaker (2hp VFD 120V single phase input-220V 3 phase output).
    From: Dana | Date: 03/12/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. CE approved only.
    2. Input Current: 14A, Breaker Rating: Not less than 20A.
    How to start and run 1/4hp non enclosure VFD?
    Is there a way to use the one we have in the field?
    The amperage is close enough if we raise or drop the voltage or bypass anything in the system to get it to work in the interim? It is installed and anything we can do to get it up and running right now?
    From: Mrhaynes | Date: 02/09/2021
    Was this review helpful? Yes No (1/0)
    ATO Responded
    You can set the 1/4hp non enclosure VFD with the following parameters, and test again.
    The difference between variable frequency drive operation
    What is the difference between 5hp, and 7hp 1-phase to 3-phase drive if I use to run 9Amps at 230VAC motor?
    From: Fred | Date: 22/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The 2 driving models have the same performance durability, and for a VFD rated motor which draws no more than 9Amps at 230VAC, we recommend using the 5hp model (GK3000-2S0037).
    Great customer service
    I asked a question here about non enclosure VFD and they responded to me directly and gave me their email contact information. Thank you so much for wonderful customer service!!!
    From: Knives | Date: 23/02/2021
    Was this review helpful? Yes No (1/0)
