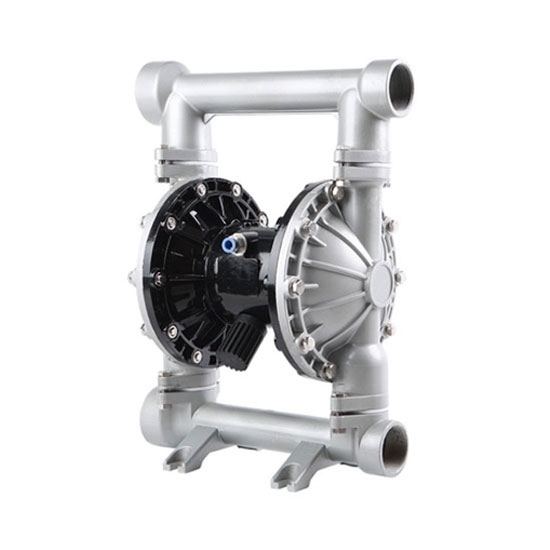

2" Air Operated Double Diaphragm Pump, 100 GPM

5 out of 5 based on 5 reviews | Write a review
$849.99
Factory price industrial pneumatic double diaphragm pump for sale, 2 inch fluid inlet and outlet, 1/2 inch air inlet, max. suction lift 18 ft., air consumption 32 SCFM, max. working pressure up to 120 PSI, selectable body material of stainless steel or aluminum alloy and non-metallic.
*
*
*
SKU: ATO-AODD-50
30-day Returns
Free Shipping
Delivery date: 6-12 days

Air operated double diaphragm pump is a pneumatic device that can pump a variety of toxic, flammable, volatile liquid, slurry, high viscosity fluids, corrosive liquids and paint. It also can be used for cleaning sediment contaminant in shaft, tunnels and sewers.

Features

  • Pneumatic dual diaphragm pump can transport high temperature media up to 130 ℃.
  • Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
  • It is designed with multiport to help you install it easily.
  • Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
  • It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model ATO-QBYK3-50
Max. Flow 100 GPM (387.5 LPM)
Max. Working Pressure 120 PSI (0.84 Mpa)
Fluid Inlet Size Cast Steel/Aluminum Alloy/Stainless Steel: 2 inch (DN50) NPT, Non-Metallic (Plastic): DN50 Flange or DN50 Flange+2" NPT Adapter
Fluid Outlet Size Cast Steel/Aluminum Alloy/Stainless Steel: 2 inch (DN50) NPT, Non-Metallic (Plastic): DN50 Flange or DN50 Flange+2" NPT Adapter
Air Inlet Size 1/2 inch NPT
Max. Suction Lift (Dry Suction) 18 ft. (5.48m)
Max. Permitted Grain 3/16 in. (4.8mm)
Max. Air Consumption 32 SCFM
Every Stroke Flow 0.5 gal. (1.9L)
Max. Reciprocating Speed 276 cpm
Body Structure Material Cast Iron/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic)
Diaphragm Material Butyronitrile (Default)/ Teflon (Customizable)
Weight 28kg/ 16kg/ 28kg/ 14kg

Dimensions (Unit: mm)

Dimension of 2 inch Air Operated Double Diaphragm Pump

Air Consumption Diagram

Air Consumption Diagram of 2 inch Air Operated Double Diaphragm Pump

Fluid Flow Diagram

Fluid Flow Diagram of 2 inch Air Operated Double Diaphragm Pump

Details

Details of 2 inch Air Operated Double Diaphragm Pump

1 Discharge outlet (top cover) 11 Sliding plate 21 Air valve chamber gasket
2 Sealing ball 12 Sliding plate gasket 22 Air valve chamber
3 Sealing seat 13 Plug 23 Muffler
4 Air valve cover gasket 14 Air valve chamber cover 24 Pitman shaft sleeve
5 Large slider aluminum piece 15 Auxiliary shaft cover 25 Colum
6 Piston 16 Auxiliary shaft O-ring 26 Outer clamp
7 V-Ring 17 Auxiliary shaft 27 PTFE diaphragm
8 Small slider 18 Pitman shaft 28 Poly rubber diaphragm
9 Large slider O-ring 19 V-Ring 29 Inner clamp
10 Large slider plastic ring 20 Piston sleeve 30 Baffle
31 Feed inlet (bottom cover)

Applications

Applications of Air Operated Double Diaphragm Pump

Tips: Air powered double diaphragm pump troubleshooting

The pneumatic diaphragm pump cannot start or moves slowly.

  • Check whether the filter, pressure regulating and lubricating device and the air inlet filter are blocked.
  • Check the spindle and "O" ring for scratches, abrasions and flattening marks, and replace them if they are damaged.

The pump is running but the flow is too low

  • Check the pump body for cavitation spots and adjust the inlet pressure of the compressed air. Reduce the running speed of the pump body to adjust the viscosity and concentration of the liquid.
  • Check whether the valve ball is stuck. If the conveyed liquid does not match the material of the valve ball. The valve ball will expand. Please replace the ball and seat with a suitable material.
  • Please check whether the inlet pipe is blocked.

There are a lot of bubbles in the outlet liquid

  • Please check whether the diaphragm is broken.
  • Check if the pump body and pipeline are leaking.

Liquid leaks from the outlet of the gas chamber

  • Please check whether the diaphragm is broken.
  • Check whether the diaphragm is correctly installed and locked.

Import and export leakage.

  • The screw is not tightened
  • the ball seat is deformed or the O-ring is damaged
  • The pump casings at both ends are not inclined to the upper hole position, causing the two discharge ports or feed ports to not be on the same plane.
Existing reviews of 2" Air Operated Double Diaphragm Pump, 100 GPM
Can this diaphragm pump deliver different kinds of oil products?
Another question, we want to use it to pump different kinds of oil products. Could this pump do the job for it?
From: cyril | Date: 19/07/2023
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, our Air Operated Double Diaphragm Pump can convey comparatively viscous liquid (Viscosity is less than
10000 centipoises), as long as your oil product viscosity is within this range.
I would recommend this AODD pump.
I use this air diaphragm pump to move waste engine oil into a storage container. I have only had it for a short time, doesn't seem to move 12 gallons per minute but still meets my needs. I would recommend this AODD pump so far.
From: Karlson | Date: 28/10/2022
Was this review helpful? Yes No (0/0)
Fast shipping and worked great.
I ordered this air operated diaphragm pump because a friend of mine has one and he raves about how great it is. I used it to pump the oil from the barrel into a waste oil heater. This AODD pump delivered on time and worked great. I highly recommend.
From: Vernon | Date: 26/05/2022
Was this review helpful? Yes No (0/0)
