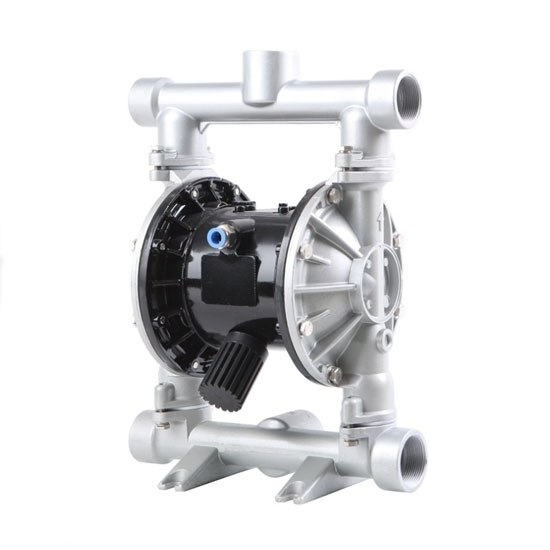

1-1/2" Air Operated Double Diaphragm Pump, 40GPM

5 out of 5 based on 9 reviews | Write a review
$544.69
Buy industrial air operated double diaphragm pump with 1-1/2 inch fluid inlet and outlet, 1/2 inch air inlet, air driven, selectable cast steel, aluminum alloy, stainless steel and non-metallic body material. This AODD pump at low price used for pumping slurry, high viscosity fluids, corrosive liquids and paint, manufacturer direct sale.
*
*
SKU: ATO-AODD-40
30-day Returns
Free Shipping
Delivery date: 6-12 days

Air driven dual diaphragm pump with high efficiency and high pressure, is powered by compressed air to pump a variety of toxic, flammable, volatile liquid, high viscosity fluids, acids, alkalis, corrosive liquids and paint.

Features

  • Pneumatic dual diaphragm pump can transport high temperature media up to 130 ℃.
  • Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
  • It is designed with multiport to help you install it easily.
  • Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
  • It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

Specification

Model ATO-QBYK3-40 ATO-QBY-G40
Max. Flow 40 GPM (151 LPM)
Max. Working Pressure 120 PSI (0.84 Mpa)
Fluid Inlet Size 1-1/2 inch (DN40) NPT
Fluid Outlet Size 1-1/2 inch (DN40) NPT
Air Inlet Size 1/2 inch NPT
Max. Suction Height (Dry Suction) 18 ft. (4.5m)
Max. Permitted Grain 1/8 in. (3.2mm)
Max. Air Consumption 23.66 SCFM
Every Stroke Flow 0.15 gal. (0.15L)
Max. Reciprocating Speed 276 cpm
Body Structure Material Option Cast Iron/Aluminum Alloy/Stainless Steel Non-Metallic (Plastic)
Diaphragm Material Butyronitrile (Default)/ Teflon (Customizable)
Weight 15.5kg/ 9kg/ 15.5kg 8kg

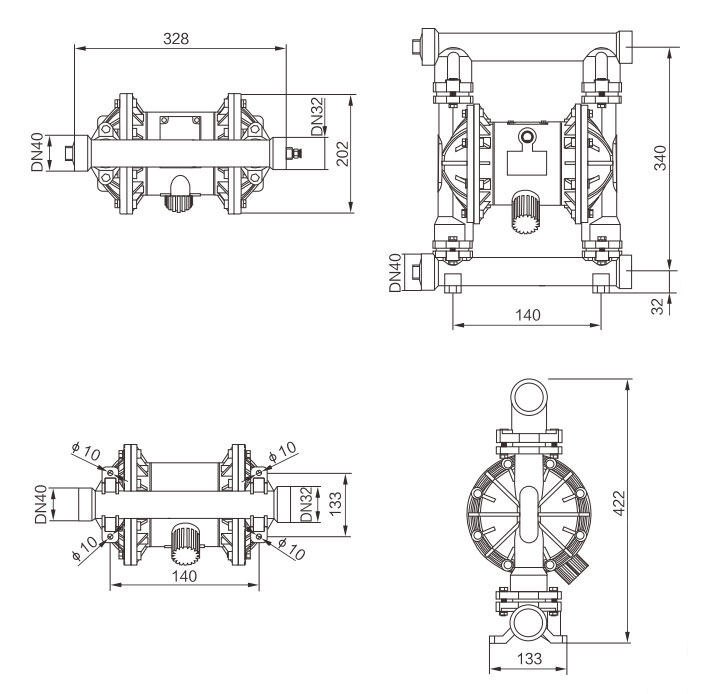

Dimensions (Unit: mm)

Dimension Drawing of 1-1/2 inch Air Operated Double Diaphragm Pump

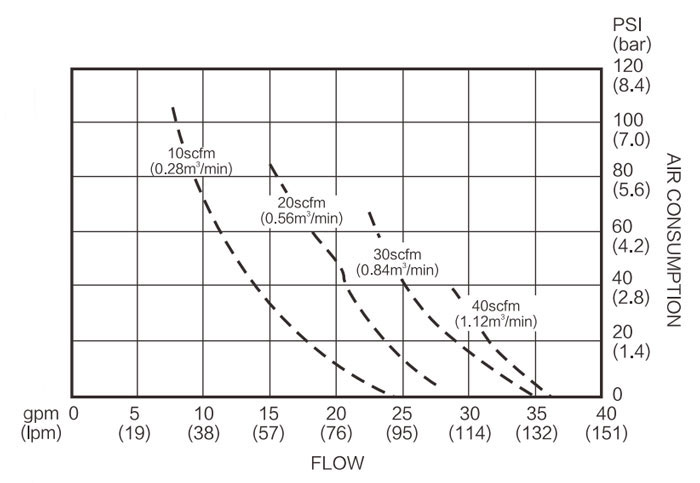

Air Consumption Diagram

Air Consumption Diagram of 1-1/2 inch Air Operated Double Diaphragm Pump

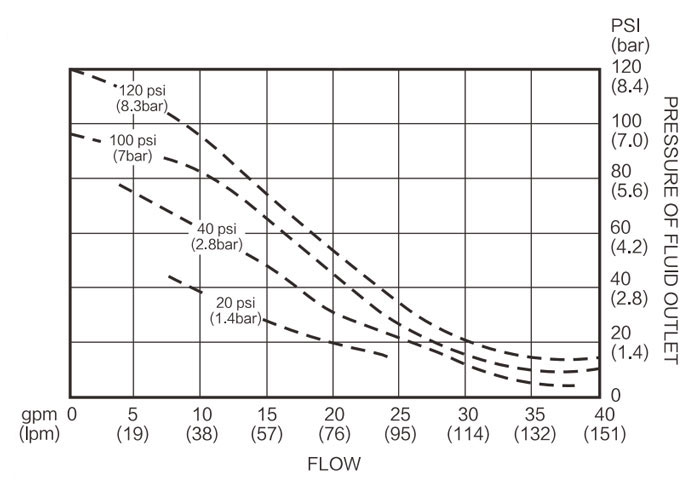

Fluid Flow Diagram

Fluid Flow Diagram of 1-1/2 inch Air Operated Double Diaphragm Pump

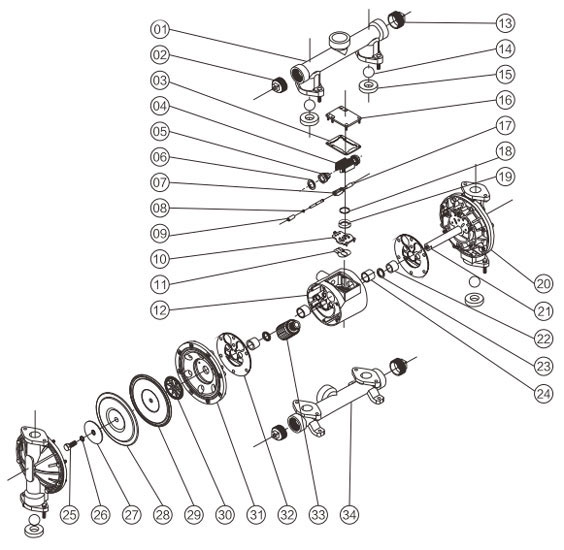

Details

Details of 1-1/2 inch Air Operated Double Diaphragm Pump

1 Discharge outlet (top cover) 13 Plug 24 Piston sleeve
2 Plug 14 Sealing ball 25 Clamp screw
3 Air valve cover gasket 15 Sealing seat 26 Clamp O-ring
4 Large slider aluminum piece 16 Air valve chamber cover 27 Outer clamp
5 Piston 17 Auxiliary shaft 28 PTFE diaphragm
6 V-Ring 18 Large slider O-ring 29 Poly rubber diaphragm
7 Small slider 19 Large slider plastic ring 30 Inner clamp
8 Auxiliary shaft O-ring 20 Colum 31 Baffle
9 Auxiliary shaft cover 21 Pitman shaft 32 Air valve chamber gasket
10 Sliding plate 22 Pitman shaft sleeve 33 Muffler
11 Sliding plate gasket 23 V-Ring 34 Feed inlet (bottom cover)
12 Air valve chamber

Applications

Applications of Air Operated Double Diaphragm Pump

Tips: How to maintain an air operated double diaphragm pump?

  • Air operated double diaphragm pump is no need for any lubricant before and during you use it. But after you disassemble the pneumatic dual diaphragm pump or when you reassemble it, it is better to fill some proper grease between pitman shaft and pitman shaft sleeve. When you install the diaphragm clamp, you also can coat a layer of grease for sealing easily.
  • If you need to install the air valve and guide valve, it is better to fill a small amount of grease for better lubrication.
  • Before you install the AODD pump, you need to clean all the inside parts, check whether all the sealing parts are well sealed.
  • Air valve cover gaskets and air valve chamber gaskets have two sides that can’t be installed reversely. The upper guide valve should be confirmed in place before tightening bolts, otherwise it will damage the thimble. Four bolts on the guide valve should be balanced and not over tight, otherwise the shell valve will be damaged.
Existing reviews of 1-1/2" Air Operated Double Diaphragm Pump, 40GPM
Interested in the 1-1/2” pump
Need stainless steel with heavy duty internal parts. Will be pumping sealer with sand? Teflon and stainless steel internal parts if possible. Thank You.
From: Alan | Date: 22/10/2023
Was this review helpful? Yes No (0/0)
ATO Responded
Our ATO-AODD-40 diaphragm pump can be customized with a stainless steel pump body, stainless steel screws and stainless steel diaphragm pressure plate.
We also need to know whether the sand you mentioned contains water or liquid? If it is pure dry sand, it can Not be pumped, but if it contains liquid, it can be pumped.
Can we run this Air operated double diaphragm pump at 10 GPM as well?
I'd like to know if we can control the flow GPM with air pressure. It says rated for 40 GPM, are we able to run it at 10 GPM as well?
From: Rebecca | Date: 27/06/2023
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, you can control the flow GPM. You only need to install a valve at the inlet or outlet (any port) to adjust the water in and out or the air motor's speed.
High quality air double diaphragm pump
I recently purchased my first AODD pump for transferring lubrication oil into an overhead tank.  So far it works well and has had no issues with leaking. Highly recommend it.
From: Rebecca | Date: 10/05/2023
