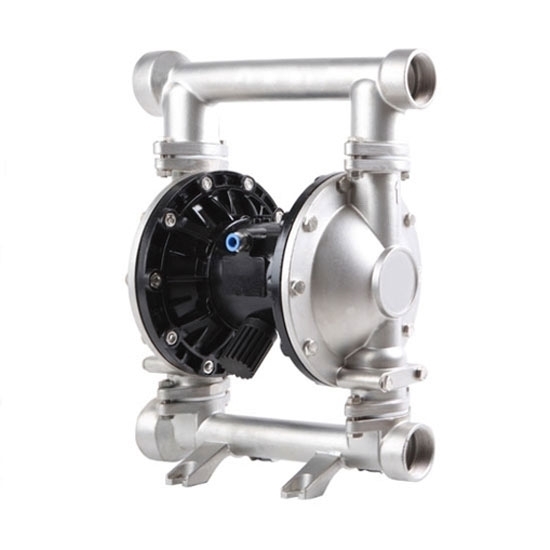

    2" Air Operated Double Diaphragm Pump, 100 GPM

    5 out of 5 based on 4 reviews | Write a review
    $849.99
    Factory price industrial pneumatic double diaphragm pump for sale, 2 inch fluid inlet and outlet, 1/2 inch air inlet, max. suction lift 18 ft., air consumption 32 SCFM, max. working pressure up to 120 PSI, selectable body material of stainless steel or aluminum alloy and non-metallic.
    SKU: ATO-AODD-50
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Air operated double diaphragm pump is a pneumatic device that can pump a variety of toxic, flammable, volatile liquid, slurry, high viscosity fluids, corrosive liquids and paint. It also can be used for cleaning sediment contaminant in shaft, tunnels and sewers.

    Features

    • Pneumatic dual diaphragm pump can transport high temperature media up to 150 ℃.
    • Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
    • It is designed with multiport to help you install it easily.
    • Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
    • It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.

    Specification

    Model ATO-QBYK3-50
    Max. Flow 100 GPM (387.5 LPM)
    Max. Working Pressure 120 PSI (0.84 Mpa)
    Fluid Inlet Size 2 inch (DN50) NPT
    Fluid Outlet Size 2 inch (DN50) NPT
    Air Inlet Size 1/2 inch NPT
    Max. Suction Lift (Dry Suction) 18 ft. (5.48m)
    Max. Permitted Grain 3/16 in. (4.8mm)
    Max. Air Consumption 32 SCFM
    Every Stroke Flow 0.5 gal. (1.9L)
    Max. Reciprocating Speed 276 cpm
    Body Structure Material Cast Steel/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic)
    Diaphragm Material Butyronitrile (Default)/ Teflon (Customizable)
    Weight 28kg/ 16kg/ 28kg/ 14kg

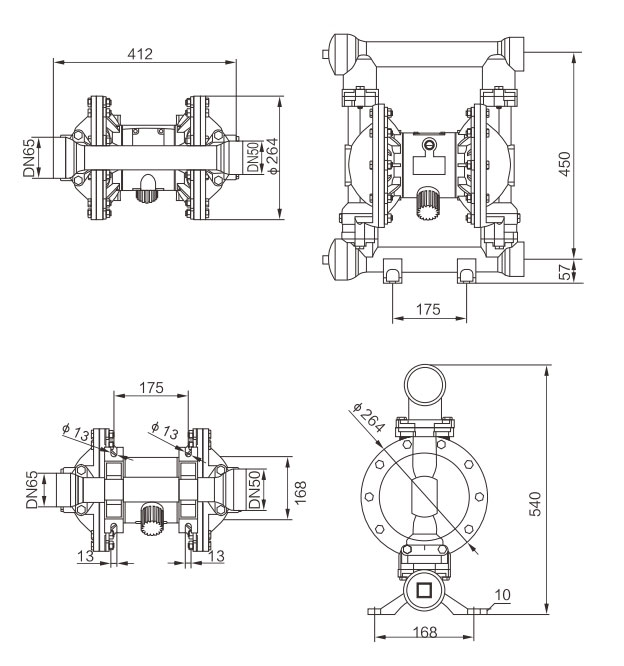

    Dimensions (Unit: mm)

    Dimension of 2 inch Air Operated Double Diaphragm Pump

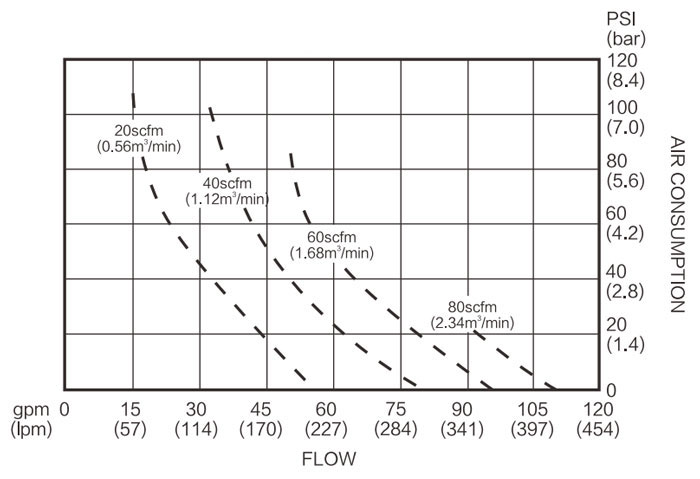

    Air Consumption Diagram

    Air Consumption Diagram of 2 inch Air Operated Double Diaphragm Pump

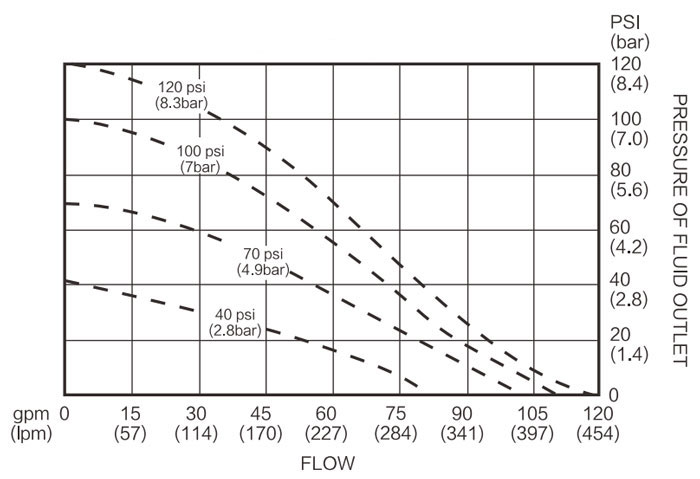

    Fluid Flow Diagram

    Fluid Flow Diagram of 2 inch Air Operated Double Diaphragm Pump

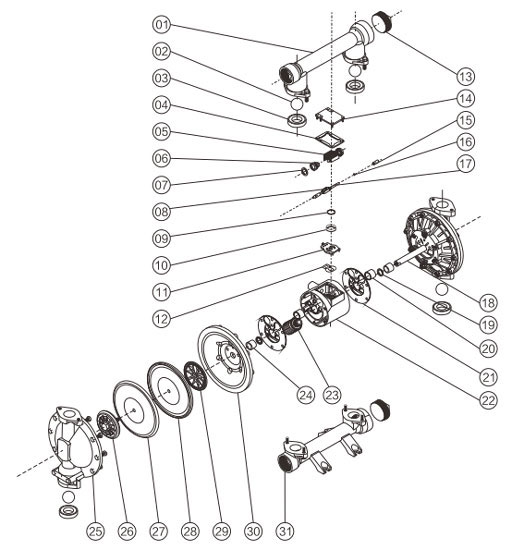

    Details

    Details of 2 inch Air Operated Double Diaphragm Pump

    1 Discharge outlet (top cover) 11 Sliding plate 21 Air valve chamber gasket
    2 Sealing ball 12 Sliding plate gasket 22 Air valve chamber
    3 Sealing seat 13 Plug 23 Muffler
    4 Air valve cover gasket 14 Air valve chamber cover 24 Pitman shaft sleeve
    5 Large slider aluminum piece 15 Auxiliary shaft cover 25 Colum
    6 Piston 16 Auxiliary shaft O-ring 26 Outer clamp
    7 V-Ring 17 Auxiliary shaft 27 PTFE diaphragm
    8 Small slider 18 Pitman shaft 28 Poly rubber diaphragm
    9 Large slider O-ring 19 V-Ring 29 Inner clamp
    10 Large slider plastic ring 20 Piston sleeve 30 Baffle
    31 Feed inlet (bottom cover)

    Applications

    Applications of Air Operated Double Diaphragm Pump

    Tips: Air powered double diaphragm pump troubleshooting

    The pneumatic diaphragm pump cannot start or moves slowly.

    • Check whether the filter, pressure regulating and lubricating device and the air inlet filter are blocked.
    • Check the spindle and "O" ring for scratches, abrasions and flattening marks, and replace them if they are damaged.

    The pump is running but the flow is too low

    • Check the pump body for cavitation spots and adjust the inlet pressure of the compressed air. Reduce the running speed of the pump body to adjust the viscosity and concentration of the liquid.
    • Check whether the valve ball is stuck. If the conveyed liquid does not match the material of the valve ball. The valve ball will expand. Please replace the ball and seat with a suitable material.
    • Please check whether the inlet pipe is blocked.

    There are a lot of bubbles in the outlet liquid

    • Please check whether the diaphragm is broken.
    • Check if the pump body and pipeline are leaking.

    Liquid leaks from the outlet of the gas chamber

    • Please check whether the diaphragm is broken.
    • Check whether the diaphragm is correctly installed and locked.

    Import and export leakage.

    • The screw is not tightened
    • the ball seat is deformed or the O-ring is damaged
    • The pump casings at both ends are not inclined to the upper hole position, causing the two discharge ports or feed ports to not be on the same plane.
    Existing reviews of 2" Air Operated Double Diaphragm Pump, 100 GPM
    Very pleased with this AODD pump.
    For the price this is a hell of a deal. I like the packaging and let me receive a perfect product. I’ve used this air operated diaphragm pump pretty heavily the last month and a half. No issues so far. I am very pleased with this pneumatic pump.
    From: Jonathan | Date: 28/04/2022
    Was this review helpful? Yes No (0/0)
    I recommend it.
    This air operated double diaphragm pump is heavy duty but relatively lightweight construction, which makes this an excellent choice for any application. Well made and quiet during operation. I recommend it.
    From: Mccurry | Date: 23/05/2022
    Was this review helpful? Yes No (0/0)
    Fast shipping and worked great.
    I ordered this air operated diaphragm pump because a friend of mine has one and he raves about how great it is. I used it to pump the oil from the barrel into a waste oil heater. This AODD pump delivered on time and worked great. I highly recommend.
    From: Vernon | Date: 26/05/2022
    Was this review helpful? Yes No (0/0)
    I would recommend this AODD pump.
    I use this air diaphragm pump to move waste engine oil into a storage container. I have only had it for a short time, doesn't seem to move 12 gallons per minute but still meets my needs. I would recommend this AODD pump so far.
    From: Karlson | Date: 28/10/2022
    Was this review helpful? Yes No (0/0)
