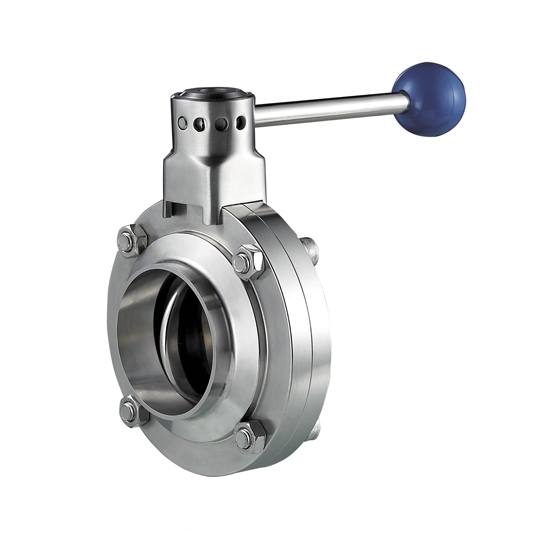

    2 inch Stainless Steel Sanitary Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    $99.29
    Hand operated SS sanitary butterfly valve is a hygienic valve with purity requirements for food and chemical industries. This 2 inch manual butterfly valve is made from 304 stainless steel and comes with welded end or tri clamp end, which is simple structure and high performance for flow control, throttling and steam service.
    SKU: ATO-BV-2I
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    In the food grade industry, the sanitary butterfly valve is a common hygienic valve which has better flow control characteristics. This high performance butterfly valve with welded or tri-clamp end is constructed from 304 stainless steel and EPDM or PTFE seat, which can be operated by actuator or handle.

    Specification

    Model ATO-BV-2I
    Type SS Sanitary Butterfly Valve
    Size 2 inch
    Connection Method (Optional) Welded End/ Tri Clamp End
    Drive Method Manual
    Body Material 304 Stainless steel (Default) / 316 stainless steel
    Washer and Gasket EPDM comforms to PFA 177.2600
    Handle AISI 304/ PP
    Surface Finishing Ra≤0.8
    Operating Torque 3Nm
    Operating Temperature -10℃~+120℃
    Max. Pressure 1MPa
    Min. Pressure 0.02MPa p.abs
    Nominal Pressure 5MPa
    Weight 2 kg
    Certificate PED97-23EC, FDA.177.2600

    Dimensions (Unit: mm)

    Dimensions of Welded End and Tri Clamp End Stainless Steel Sanitary Butterfly Valve

    Size Dn D D1 J H H1 A1 A2
    2 inch 47.8 50.8 64 133 52.5 47.5 52 76

    Tips for installing sanitary butterfly valve

    • It is best to install SS sanitary butterfly valves upright and vertically on the pipeline. A support frame should be added to the valve where the weight is large and there is vibration.
    • The body of the stainless steel sanitary butterfly valve should avoid excessive stress due to severely different shafts between the front and rear piping or the adjusted flange.
    • Flush the piping system before installing the regulating valve before the initial start of construction and after the maintenance is stopped. Or install a transition filter in front of the valve.
    • The sanitary BF valve must be installed in accordance with the arrow on the flow direction of the valve body in an environment where there is no severe corrosive gas.
