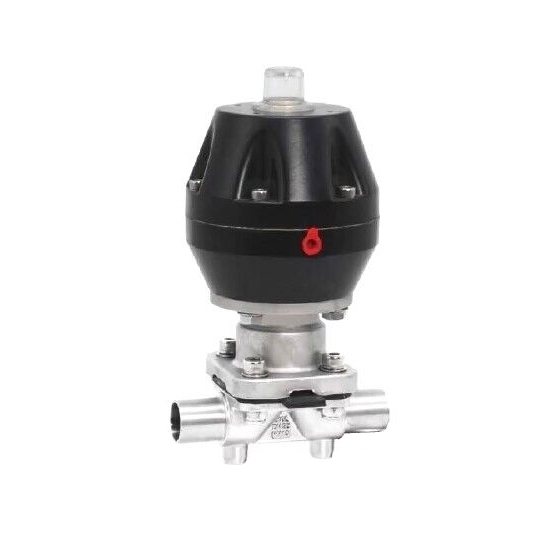

    2" Pneumatic Diaphragm Valve, Sanitary

    5 out of 5 based on 1 reviews | Write a review
    $590.29
    2" (DN50) pneumatic diaphragm valve for sale online. It is provided with an actuator that can precisely control fluid flow. Sanitary diaphragm valve, weir type, welding connection, ideal for cleaning or sterilizing processes.
    SKU: ATO-PDV-50
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Hot selling 2 inch (DN50) sanitary pneumatic diaphragm valve is suitable for pharmaceutical, food and beverage and biotechnology industries. Equipped with an actuator, the weir-type diaphragm valve can provide precise control of fluid flow.

    Specifications

    • Model: ATO-GMG661F/GMG6K61F/GMG6B61F-10RL
    • Size: DN50 (2 inch)
    • With Actuator: Yes
    • Actuator Type: Double Acting/Normally Open/Normally Closed
    • Function: Interception
    • Connection Form: Welding
    • Diaphragm Quantity: Double Diaphragm
    • Drive Mode: Pneumatic
    • Level: Sanitary Level
    • Type (Channel Position): Two-Way
    • Weight: About 12kg

    Dimensions (Unit: mm)

    Pneumatic diaphragm valve dimension

    DN L D d B C
    50 200 50.8 48 170 290


    Applications

    Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

    Pneumatic diaphragm valve applications

    Tips: Sanitary Diaphragm Valve Features

    Sanitary diaphragm valves are designed with a number of features that make them well-suited for use in hygienic applications. These include:

    • Smooth, crevice-free interiors that eliminate areas where bacteria can grow and multiply.
      Easy disassembly and cleaning, allowing for thorough cleaning and sterilization between uses.
    • Materials of construction that are compatible with the fluids and gases being processed, as well as the cleaning and sterilization agents used in the industry.
    • Seal materials that are food-grade and comply with industry standards for purity and safety.

    Sanitary diaphragm valves are commonly used in applications where strict hygiene standards are required, such as in the production of food and beverages, pharmaceuticals, and biotech products. They are often used in combination with other types of sanitary fittings and equipment, such as sanitary tubing, clamps, and gaskets, to create a complete hygienic processing system.
