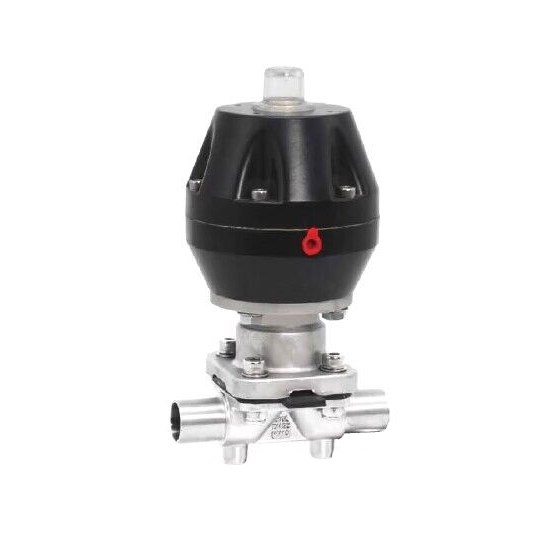

    1/2" Pneumatic Diaphragm Valve, Sanitary

    5 out of 5 based on 1 reviews | Write a review
    1/2" (DN15) inch diaphragm valve for sale online. Low price sanitary diaphragm valve is available with a pneumatic actuator, welded connection, and double diaphragm, typically used in the pharmaceutical, food and beverage and biotech industries.
    SKU: ATO-PDV-15
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a pneumatic diaphragm valve with an actuator at low price. 1/2 inch (DN15) sanitary diaphragm valve adopts a welding connection and controls the flow accurately, is an ideal choice for processes that require frequent cleaning or sterilization.


    • Model: ATO-GMG661F/GMG6K61F/GMG6B61F-10RL
    • Size: DN15 (1/2 inch)
    • With Actuator: Yes
    • Actuator Type: Double Acting/Normally Open/Normally Closed
    • Structure Type: Weir Type
    • Function: Interception
    • Connection Form: Welding
    • Diaphragm Quantity: Double Diaphragm
    • Drive Mode: Pneumatic
    • Level: Sanitary Level
    • Type (Channel Position): Two-Way
    • Weight: About 4kg

    Dimensions (Unit: mm)

    Pneumatic diaphragm valve dimension

    DN L D d B C
    15 108 12.7 16 110 195


    Pneumatic sanitary diaphragm valves are commonly used in applications that require precise control of fluid flow and hygienic conditions. These valves are frequently found in the pharmaceutical, food and beverage, and biotechnology industries.

    Pneumatic diaphragm valve applications

    Tips: What is a diaphragm valve?

    A diaphragm valve is a type of valve used to control the flow of fluid through a pipeline. It consists of a flexible diaphragm made of rubber or another elastomeric material that separates the valve body into two chambers. The diaphragm is attached to a compressor, which is responsible for moving the diaphragm up and down to regulate the flow of fluid through the valve. When the diaphragm is raised, it allows fluid to flow through the valve, and when it is lowered, it blocks the flow of fluid. Diaphragm valves are commonly used in a variety of industries, including pharmaceuticals, food and beverage, water treatment, and chemical processing.
