Single phase variac variable transformer for sale, rated current 6.4A, output voltage adjustable from 0 to 300V AC. The maximum rated power of 2000 VA. 2 kVA variac voltage regulator with overload protection makes it safer to use.
- Model: ATO-APS-2000VA
- Rated Power: 2 kVA
- Number of Power Phase: Single phase
- Input Voltage: 110V/220V
- Frequency: 50/60 Hz
- Rated Full Offset Current: 14.5A/6.4A
- Output adjustable voltage: 0-300V
- Actual Output Current: (actual output voltage * rated current) / maximum output voltage
- Weight: 8 kg
- Dimension: 203mm x 176mm x 180mm
- Certificate: CE

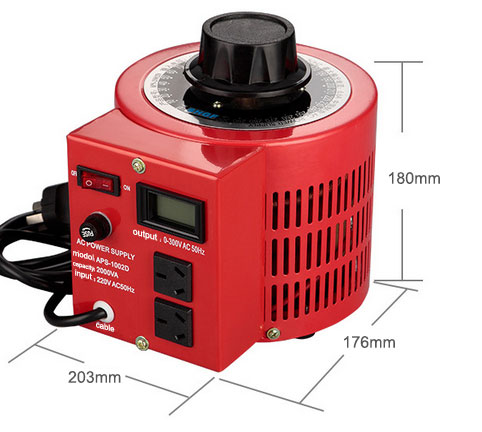

Dimension (Unit mm)
Variable transformers are widely used for applications such as temperature control, control lighting and testing of laboratory equipment under overvoltage and under-voltage conditions.
Tips: What is a single-phase voltage regulator?
Single-phase voltage regulators are generally used in research, experiments, testing, heating and insulation, soft start, etc. Single-phase voltage regulators provide different voltages to the load, and the voltage can be adjusted linearly in the case of energization. Small single-phase regulators are contacting, the capacity is generally below 30KVA, single-phase 220V input, 0-250V output; three-phase 380V input, 0-420 output. Large single-phase regulators are more types, and capacity, and specifications, can be designed and produced in accordance with the requirements. Like the most common regulator is a single-phase regulator, also often called an automatic single-phase regulator.
