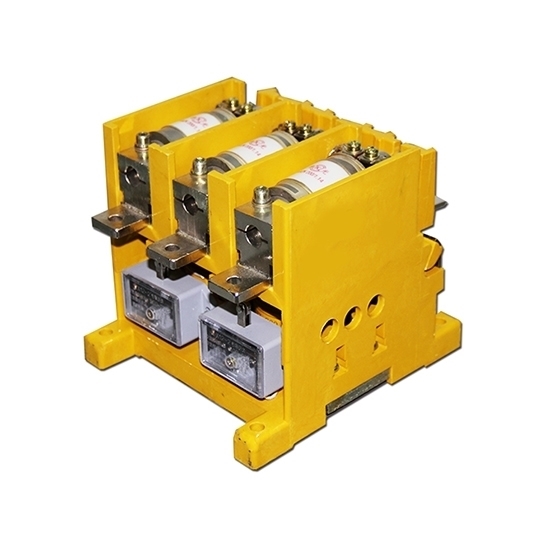

    3 Phase AC Vacuum Contactor, 200A, 1140V

    4.3 out of 5 based on 3 reviews | Write a review
    Rated 1140V, 200A ac vacuum contactor is used for frequently switch on and off the normal working current. 3 phase, 36 volt or 220 volt control circuit, 2±0.2 mm open distance, 80±20 N final power, 1500000 times electrical life.
    SKU: ATO-VCON-200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy best 4 pole contactor with vacuum tube at the lowest price on ATO. AC 50Hz or 60Hz, 4200 volt main circuit, 2500 volt auxiliary circuit, 2000 volt control circuit.


    Model ATO-CJZ-200
    Rated voltage Main circuit 1140V
    Control circuit (AC) 36V, 220V
    Rated current 200A
    Main contact parameter Open distance 2±0.2 mm
    Over distance >1 mm
    Final power 80±20 N
    Power frequency withstand voltage Main circuit 4200V
    Auxiliary circuit 2500V
    Control circuit 2000V
    Phase 3
    Number of Pole 4
    Frequency AC 50Hz or 60Hz
    Making capacity 10 le 100 times
    Breaking capacity 8 le 25 times
    Max making & breaking capacity (A) 2000 3 times
    Electric life AC3 600000 times
    AC4 60000 times
    Electrical life 1500000 times
    Function Device protection
    Electricity type Vacuum
    Ambient temperature -25℃ to 40℃
    Packaging details Standard package or according to customer's requirements
    Weight 6.5kg

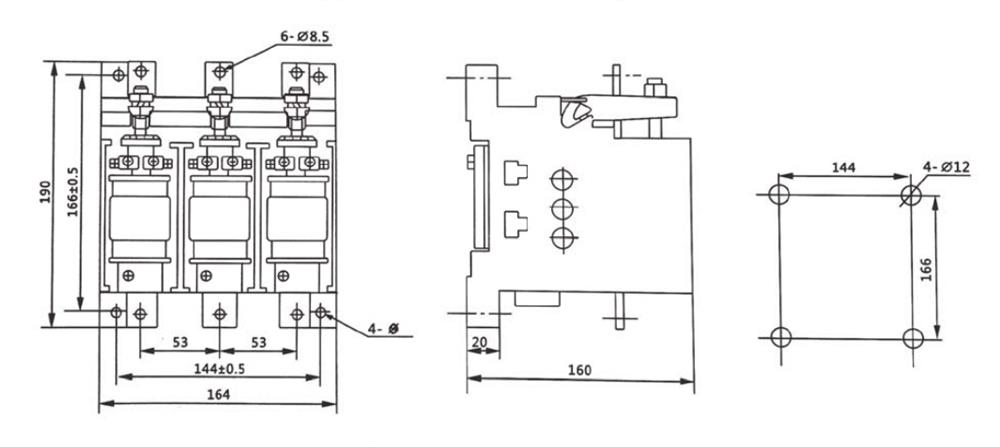

    AC vacuum contactor outline and installation dimension (Unit: mm)

    AC vacuum contactor outline and installation dimension

    Tips: Vacuum ac contactor troubleshooting

    Whether the vacuum ac contactor is faulty or not can be judged according to whether it can be closed and opened accurately and reliably and kept in the closing and opening positions. The failure of the main circuit can be found and eliminated from the routine inspection and maintenance of the vacuum ac contactor. The common failure analysis of vacuum ac contactor is as follows:

    • Inability to store energy: Inability to store energy is one of the common failures of vacuum contactors, especially the energy storage mechanism driven by ratchets and pawls has a higher probability of failure. The energy storage mechanism to complete the energy storage action mainly depends on the three links of the energy storage motor, the drive mechanism, and the positioning parts. Grasping these three links firmly, it is easy to find out the cause of the ac vacuum contactor failure.
    • No closing action: The fault here is mainly related to whether the closing electromagnet is closed, whether the energy storage is in place, and whether the positioning member is operating normally.
    • The ac vacuum contactor has a closing action but fails to close. When analyzing this type of failure, you should first analyze the lock, and then analyze whether it is related to the energy storage part.
    • The ac vacuum contactor does not open: It should be emphasized here that when the vacuum ac contactor refuses to move or closes, before analyzing and repairing the main body of the contactor, it is necessary to fully judge whether the reason is in the control and secondary components such as auxiliary switches, terminal blocks, etc., and then analyze and diagnose the contactor.
    Existing reviews of 3 Phase AC Vacuum Contactor, 200A, 1140V
    Durability needs to be improved
    I bought the 3-phase AC vacuum contactor and found it to be average. Even though it has a current capacity of 200A and a voltage of 1140V, I have had occasional minor problems with it. Sometimes there is a slight noise, which is not very loud, but still makes me feel a little uncomfortable. Also, it doesn't seem to last as long as I would have hoped. While the performance is good, I need to look further into its reliability. I hope to have a better experience in the future.
    From: Dale2010 | Date: 08/10/2023
    Was this review helpful? Yes No (0/0)
    Satisfactory reliability and smoother equipment operation.
    This 3-phase AC vacuum contactor is really quite good! Its high current capacity (200A) and high voltage (1140V) allow me to cope with all kinds of circuit requirements without any worries at all. Secondly, I am satisfied with its reliability and I no longer have to worry about sudden circuit interruptions. Importantly, this contactor runs very smoothly without any noise or vibration occurring, making my equipment run smoother.
    From: nancy | Date: 13/09/2023
    Was this review helpful? Yes No (0/0)
    Our questions about contractors
    We have forwarded the requirement to our purchase team. They will contact you for purchase of (ADC50& ADC200)? So that the logs connected to the terminals never come in contact with each other.
    From: Guez | Date: 12/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Don't provide isolation protection between terminals. But we recommend covering your terminals with protective silicone.
