    25A Star Delta Starter, 11kW/ 18.5kW, 220V/ 380V AC

    5 out of 5 based on 1 reviews | Write a review
    25A starting current star delta starter for 3 phase induction motor circuit control, economic price, 11kW/ 18.5kW power, working at 220V or 380V AC voltage, optional contact form 3P+NO or 3P+NC. This y △ motor connection starter consists of 3 contactors and an air delay head for 15Hp or 25Hp motor.
    SKU: ATO-STAR-25
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

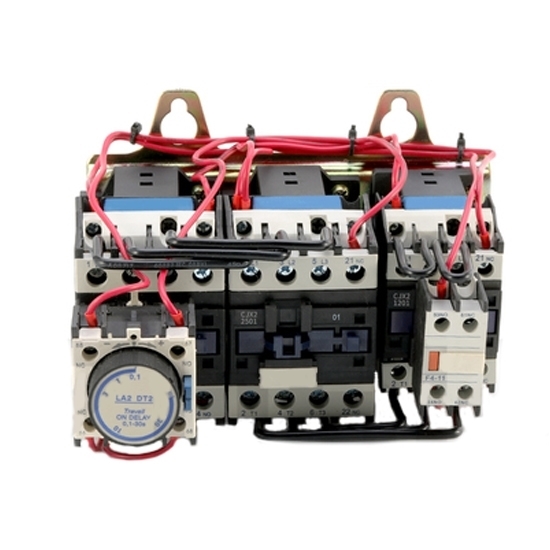

    Low price 25A 15Hp/ 25Hp star delta starter consists of 3 contactors and an air delay head. Left contactor is connected to main circuit inlet and outlet and the main contactor of the thermal overload relay. The others are reverse forward contactors.

    Star Delta Starter Specification

    • Model: ATO-QJX2-25
    • Rated Operational Current (AC-3): 25A
    • Coil Rated Voltage: 220V AC, 380V AC (Optional)
    • Contact Form: 3P+NO or 3P+NC (Optional)
    • Power of Controllable 3-phase Squirrel-cage Motor (AC-3): 220V, 11kW; 380V, 18.5kW
    • Conventional Heating Current: 40A
    • Rated Insulation Voltage: 690V
    • Electric Life: 1200 times/h
    • Mechanical Life: 3600 times/h
    • Matching Fusing Model: RT16-32
    • Average Power Consumption (20℃) @ 50Hz: Pick-up 110VA; Holding 11A
    • Rail Size: 35mm
    • Ambient Temperature: -5℃~+40℃
    • Altitude: ≤2000m
    • Class of Pollution: Class 3
    • Installation Category:
    • Dimension (L*W*H): 124mm*174mm*164mm
    • Weight: 1.6kg

    Air Delay Head Specification

    • Rated Current: 10A
    • Delay Time: Power Off Time Delay 0.1~30s
    • Dimension (L*W*H): 50mm*45mm*60mm
    • Auxiliary Contact: 1NO+1NC

    Dimension (Unit: mm)

    9-32 amp star delta starter dimension

    Wiring Diagram

    Wiring diagram of star delta starter

    Tips: Working principle of star delta starter

    For a cage-type three-phase asynchronous motor whose stator windings are connected in a delta during normal operation, if the stator windings are connected in a star shape at startup, and then connected in a delta shape after starting, the starting current can be reduced and the impact of the motor on the power grid can be reduced. Such a start-up method is called a star-delta decompression start, or Y/△ start for short. The star-delta starter is to change the wiring method of the stator winding of the three-phase asynchronous motor, so that the motor is connected in a star connection when starting, and then connected in a delta connection after the start, so as to achieve the purpose of decompression start.
