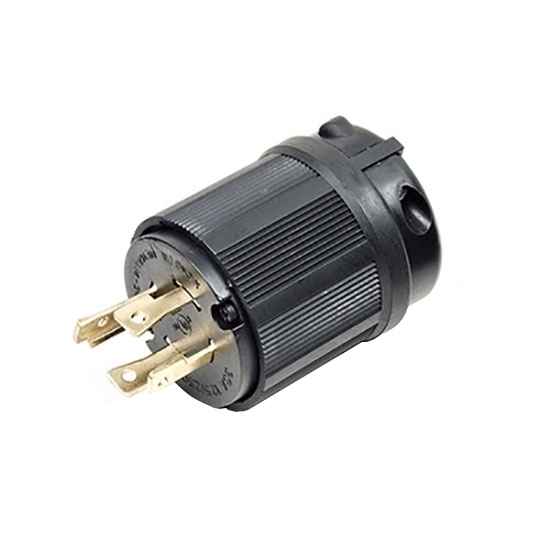

20A 125V/ 250V Locking Plug, 3 Pole 4 Wire

5 out of 5 based on 3 reviews | Write a review

$35.99

20A electrical locking plug with and 3 pole and 4 wire, 125V and 250V rated voltage. It is made of high quality nylon and full copper. The dielectric voltage withstand is 18000V minimum. Male plug and female plug with low price for your choices.

Plug *

SKU: ATO-L14-20P

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Heavy duty twist locking plug is good to use and install. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification:

Model	ATO-L14-20P
Plug Type	NEMA L14-20 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	125V/250V
Rated Current	20 Amp
Wiring & Connecting	3 Pole 4 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Tips: Why choose our locking plug?

Our locking plugs are all nylon construction.
EPDM gasket seals cord hole keep away from dust and debris.
Clear cover over wiring compartments allows you to easily inspect wiring terminations.

Purchase Guide

In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

NEMA Outlets Explained

NEMA outlets are electrical connectors that are manufactured according to standards established by the National Electrical Manufacturers Association and they are everywhere across the United States and other countries that use the standards. Among others, NEMA 5 are the most common of the non-locking connectors.

Existing reviews of 20A 125V/ 250V Locking Plug, 3 Pole 4 Wire

This locking plugs is well made.

This locking plug worked very well for my needs, I installed it on a number 10 four wire cord, only using three conductors, surprisingly it fit perfect, very pleased. I will purchase again.

From: Duncan | Date: 28/10/2022

Was this review helpful? Yes No (0/0)

Well made locking plug

This was exactly what I needed to connect the wires on my automotive lift to my Generator until I finish getting my outside garage wired for 250 volts.

From: Terry | Date: 20/05/2022

Was this review helpful? Yes No (0/0)

Good quality plug

Good quality locking plug. It is easy to install and use. It works to conduct electricity to machines. And the price is cheaper than that in the local stores, good value for the money.

From: Matt | Date: 05/05/2022

Was this review helpful? Yes No (0/0)
