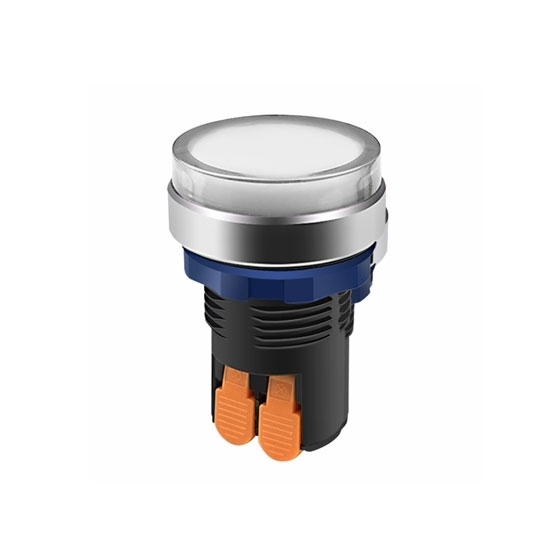

    White 220V Led Indicator Light

    5 out of 5 based on 4 reviews | Write a review
    White indicator lamps for panels, 220V AC/DC voltage, 22mm hole size, high brightness LED display, soft not dazzling, safe to use. Widely used in electricity, communications, machine tools, motors, household appliances, etc.
    SKU: ATO-IL-220V
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    220V Led pilot light hole size 22mm, rated current 10mA, soft and bright, uniform and not dazzling, IP68, simple to use and easy to connect, a variety of colors can be selected.


    Model ATO-IL-220V
    Hole Size M22mm
    Voltage 220V AC/DC
    Color Red, green, blue, yellow, white
    Rated Current ≤24V, ≤20mA, >24V, ≤10mA
    Protection Class IP68
    Heating Current 25A
    Contact Resistance ≤ 50mA
    Insulation Resistance ≥ 1000MΩ
    Shell Material PC Plastic
    Head Material PC Plastic
    Nut Material Flame retardant PA66
    Base Material Flame retardant PA66
    Head Coil Aluminum oxide natural color
    Operating Temperature -40℃~80℃
    Working Humidity 45~90% RH
    Panel Thickness ≤8mm
    Electrical Life 50,000 times
    Mechanical Life 1 Million times
    Weight 25.5g
    Warranty Period 12 Months

    220V LED Indicator Light Dimension (unit: mm)

    Indicator light dimension Indicator lamp dimension

    Tips: What is the meaning of the color of the indicator light in the application of electrical control?

    Indicator light using different colors to show the tension of the circuit, abnormal, normal, mandatory, monitoring and other different working status, so different colors of the indicator light, what is the meaning? Red means emergency, indicating dangerous situation, yellow means abnormal, indicating abnormal situation, emergency critical situation, green means normal, indicating normal situation, blue means mandatory, indicating that the operator needs action. The meaning of white is undefined, can be used in red, yellow, blue, green applications, when in doubt.

    Existing reviews of White 220V Led Indicator Light
    Good quality
    I bought a white LED indicator light, like that they came with little label tags. Lights work fine and fulfill they're purpose.
    From: wjl | Date: 21/04/2022
    Was this review helpful? Yes No (0/0)
    Indicator lights work perfectly, good quality
    They look great, little indicator lights, light up my workbench, I bought a lot of them at once, , great value for money, you will love it.
    From: Enrique | Date: 14/04/2022
    Was this review helpful? Yes No (0/0)
    Works very well
    These indicator lights work very well. I installed them in a powder coat oven I was building. They come on bright and seem to be well-made.
    From: Paulo | Date: 11/04/2022
    Was this review helpful? Yes No (0/0)
    We are very satisfied with its quality
    We use this 220Vled indicator light for electrical control, no matter what voltage/polarity, they are easy to connect. We are also very satisfied with its quality.
    From: Toniw | Date: 14/11/2021
    Was this review helpful? Yes No (0/0)
