    Yellow 48V Led Indicator Light

    5 out of 5 based on 5 reviews | Write a review
    $15.98
    48V AC/DC indicator light for switchboard, rated current 10mA, compact size, ultra-low power consumption, easy to use, achieve one second wiring, yellow, blue, white, green and red are optional, compact size, ultra-low power consumption, other voltages can be customized.
    *
    SKU: ATO-IL-48V
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Yellow indicator lamps for panels, rated voltage 48V AC/DC, 10mA rated current, high brightness LED display, small size, light weight, IP68, 12 months warranty.

    Specification:

    Model ATO-IL-48V
    Hole Size M22mm
    Voltage 48V AC/DC
    Color Red, green, blue, yellow, white
    Rated Current ≤24V, ≤20mA, >24V, ≤10mA
    Protection Class IP68
    Heating Current 25A
    Contact Resistance ≤ 50mA
    Insulation Resistance ≥ 1000MΩ
    Shell Material PC Plastic
    Head Material PC Plastic
    Nut Material Flame retardant PA66
    Base Material Flame retardant PA66
    Head Coil Aluminum oxide natural color
    Operating Temperature -40℃~80℃
    Working Humidity 45~90% RH
    Panel Thickness ≤8mm
    Electrical Life 50,000 times
    Mechanical Life 1 Million times
    Weight 25.5g
    Warranty Period 12 Months

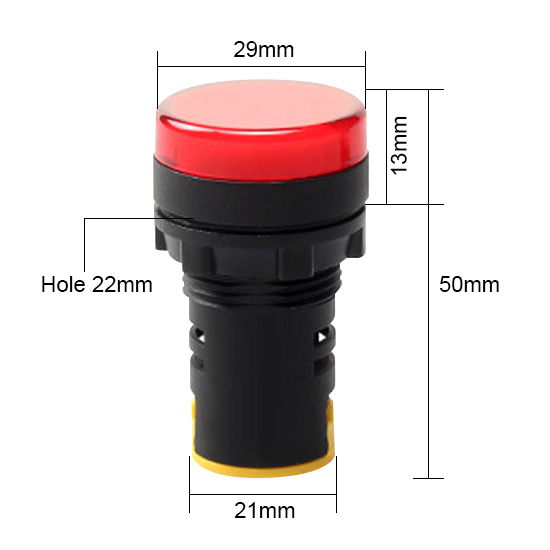

    48V LED Indicator Light Dimension (unit: mm)

    Indicator light dimension Indicator lamp dimension

    Tip: Application of indicator light

    The sturdy led indicator light is very suitable for extremely harsh outdoor environments, and is widely used in industrial machinery, instrument control panels, maritime/oil/gas industries, security and outdoor applications, and transportation dashboards.

    Existing reviews of Yellow 48V Led Indicator Light
    I have purchased 5 indicator lights and they all work very well
    The indicator lights are very reliable and perform their intended function very well. They are also easy to install and maintain. In addition, their extremely low power consumption makes them a cost-efficient solution. However, the only disadvantage of an indicator light is that it can only convey basic information, such as whether the device is switched on or off, or whether it is operating correctly. For more complex systems, more sophisticated visual cues may be required.
    From: Alger | Date: 19/02/2023
    Was this review helpful? Yes No (0/0)
    Favorite indicator light
    I bought this 48V yellow indicator light because yellow is my favorite color. It's very bright and a light yellow color, so does the good job. I like it very much.
    From: Joherry | Date: 14/11/2022
    Was this review helpful? Yes No (0/0)
    Exactly what I was looking for!
    I wanted to install these led indicator lights on the front of my camper so I could verify at a glance that the generator was running, the Fridge had power, etc. Easy to install, suitable wire length, LED, should last a long time.
    From: Nguyen | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
    Awesome
    I set this up to indicate the power is on for some systems which need to remain powered up. I like it so much. Brighter than neon light but easier to see at night or in dim situations.
    From: Dolly | Date: 20/04/2022
    Was this review helpful? Yes No (0/0)
    Good indicator light
    These lights did exactly what I needed. I only needed one but will make use of the rest. Good value for the price. Lights a decently bright.
    From: Shaun | Date: 11/04/2022
    Was this review helpful? Yes No (0/0)
