Blue 24V Led Indicator Light

5 out of 5 based on 3 reviews | Write a review
$15.74
LED indicator lamp rated voltage 24V AC/DC, hole size 22mm, rated current 20mA, easy to identify LED, soft lighting, no eye damage, high quality flame retardant enclosure, 12 months warranty, 110V LED indicator light can be customized.
*
SKU: ATO-IL-24V
This product has a minimum quantity of 5
30-day Returns
Free Shipping
Delivery date: 6-12 days

24V LED indicator light for low price, 20mA rated current, mechanical life time of one million times, IP68, high waterproof level, can choose blue, red, yellow, green and white indicator lamp.

Specification:

Model ATO-IL-24V
Hole Size M22mm
Voltage 24V AC/DC
Color Red, green, blue, yellow, white
Rated Current ≤24V, ≤20mA, >24V, ≤10mA
Protection Class IP68
Heating Current 25A
Contact Resistance ≤ 50mA
Insulation Resistance ≥ 1000MΩ
Shell Material PC Plastic
Head Material PC Plastic
Nut Material Flame retardant PA66
Base Material Flame retardant PA66
Head Coil Aluminum oxide natural color
Operating Temperature -40℃~80℃
Working Humidity 45~90% RH
Panel Thickness ≤8mm
Electrical Life 50,000 times
Mechanical Life 1 Million times
Weight 25.5g
Warranty Period 12 Months

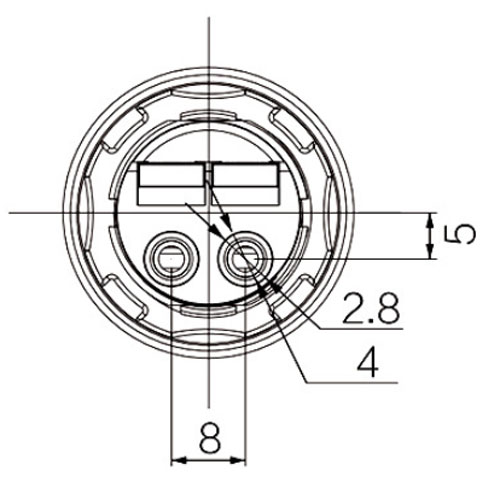

24V LED Indicator Light Dimension (unit: mm)

Indicator light dimension Indicator lamp dimension

Tips: Use environment of indicator light

In order to prevent terminal discoloration and other deterioration of the indicator light during storage, please avoid long-term storage and use in the following conditions.
1. In high temperature and humidity.
2. Corrosive gas environment
3. Places exposed to direct sunlight.
For the opening of mounting holes, please refer to the opening sizes of different switches. When opening according to the actual switch sample, there should be a certain margin. Non-waterproof switch. Please avoid the setting and use of water contact places. Please do not allow the switch to freeze and dew.
