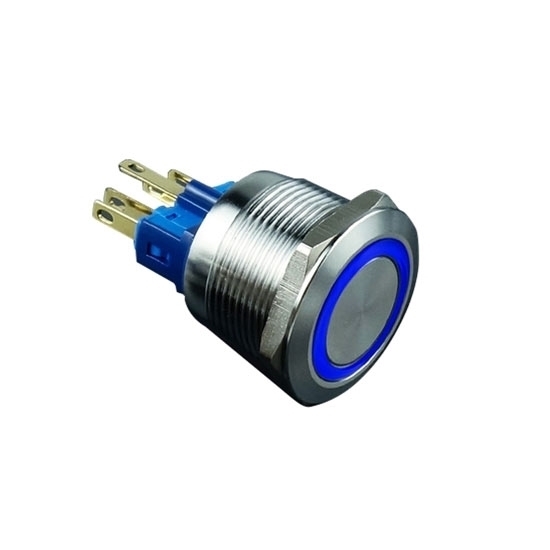

    24V Momentary Push Button Switch, 1 NO + 1 NC

    5 out of 5 based on 2 reviews | Write a review
    Momentary push button switch wuth LED, 24V rated voltage, 22mm size, the shell is made of stainless steel, waterproof, dustproof and corrosion resistant, normally open and normally closed, explosion-proof grade IK08, 12 months warranty.
    SKU: ATO-PBS-24V
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    24V momentary push button switch Protection grade IP65, the color of the lamp beads can be red, yellow, blue, green and white, 1 NO + 1NC, 2 NO + 2NC can be customized.


    Modle ATO-PBS-24V
    LED Lamp Voltage 24V
    Installation Size 22mm
    Action Form Reset/Self-lock
    Contact Combination 1 NO + 1 NC, 2 NO + 2 NC (Can be customized)
    Wiring Insert
    Rated Capacity 250V/3A, 12V/5A, 24V/3A
    Lamp Bead Color Red, yellow, blue, green, white
    Explosion Proof Grade IK08
    Protection Level IP65
    Temperature Range -25℃~80℃
    Operating Pressure 3N~5N
    Shell Material Stainless Steel
    Button Material PC Plastic
    Internal Moving Contact Silver Alloy
    Base Material Nylon PA66
    Nut Material Copper Nickel Plated
    Mechanical Life 1 Million Times
    Electrical Life 200,000 Times
    Weight 22.8g
    Warranty 12 Months

    12V Waterproof Momentary Push Button Switch Dimension (unit: mm)
    Momentary push button switch dimension
    Momentary Push Button Pin Circuit Arrangement Diagram
    Momentary push button pin circuit arrangement diagram
    How to choose Momentary Push button Switch?

    1. According to the different use occasions and specific purpose: select the type of button according to the use occasion, such as open type, protective type, waterproof type, anti-corrosion type, etc.; select the appropriate form according to the use, such as handle rotary type, key type , Emergency, with light, etc. For example, the general button on the panel of the console cabinet can be opened first; if you need to display the working status, use the indicator type; in very important places, in order to prevent unrelated personnel from misoperation, the key type should be selected; when there is corrosive gas Use anti-corrosion type.

    2. Select the color of the buttons and indicator lights according to the requirements of working status, instructions and working conditions: green for starting or energizing, and red for "stop". In addition, the voltage of the indicator light (bulb) is divided into 5V, 12V, 24V and so on.

    3. According to the needs of the control loop, determine the number of different buttons: such as single button, double button, three button, multi button, etc. For example, when three kinds of control of forward and reverse stop are required, three buttons can be used and installed in the same button box; when only start and stop control are needed, two buttons are assembled in the same button box.
