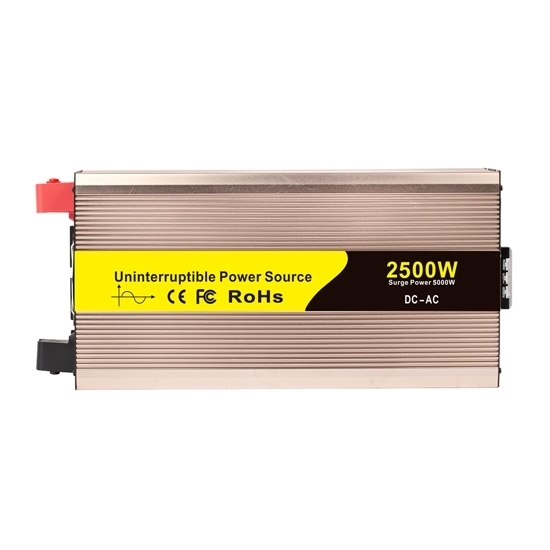

2500W (2700 VA) UPS Inverter For Home

Pure sine wave ups inverter for sale online with 2500W (2.7 kVA). Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries. Intelligent fan for cooling can improve ups inverter a long use life.

Features

• 2500 watt ups inverter with pure sine wave output (THD＜3%).
• Built-in 3-stages battery charger, allow to run loads while charging.
• Automatically switch with a ultra-fast switching time in 2.5 kW ups inverter.
• High efficiency-converts the battery's available power.
• Pure sine wave 2.7 kVA inverter with ups uses soft-start technology.
• 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
• Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries in 2500 watt ups inverter.
• Aluminum shell with good heat dissipation and strong shock resistance.
• Uninterruptible power supply with USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
• Intelligent fan for cooling, long use life.
• LED indicators for power and protections.
• Switch-mode design in 2500W ups inverter, easy to use.

Specification

• Model: ATO-UPSIV-2500
• Rated Power: 2500W (2700 VA)
• Peak Power: 5000W
• Input Voltage: DC 12V, DC 24V, DC 48V (Optional)
• Output Voltage: 100V AC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC±5% (Optional)
• Output Frequency: 50Hz±0.5Hz, 60Hz±0.5Hz (Optional)
• Phase: 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
• Output Waveform: Pure sine wave
• Waveform Distortion: THD＜3% (Linear load)
• Cooling Method: Intelligent air cooling
• Power Switching Time: ≤ 9 ms
• USB Port: 5V 1A
• Max. Efficiency: 90%
• Working Temperature: -10 ℃— +50 ℃
• Storage Temperature: -30 ℃— +70 ℃

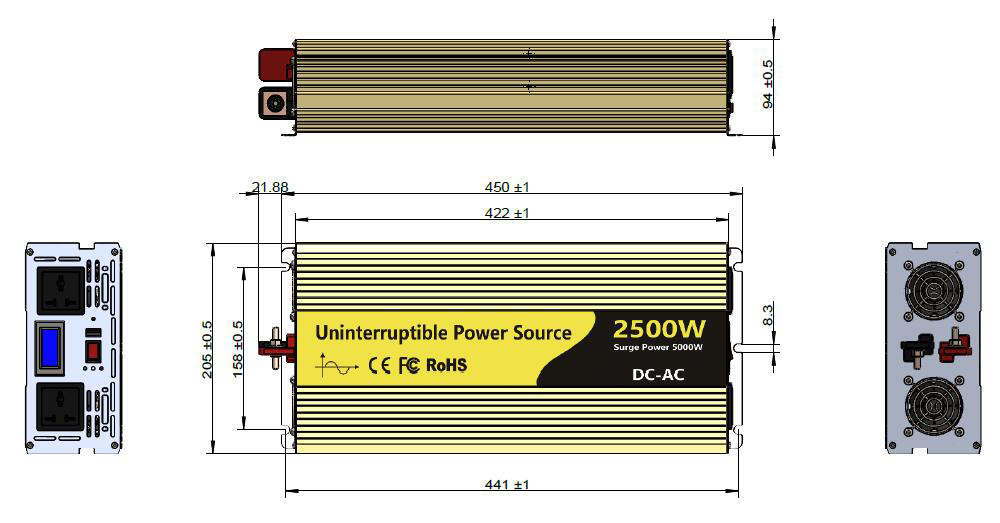

Dimension (Unit: mm)

UPS Inverter Output Socket (Optional)

Advantages of UPS Inverter:

Tips: UPS Inverter Working Principle

When the normal AC power supply is interrupted, the uninterruptible power supply device converts the DC output of the battery into continuous AC power supply. It is mainly used to provide uninterrupted power supply to a single computer, computer network system or other power electronic equipment.

When the mains input is normal, the ups will supply the mains voltage regulator to the load. At this time, the ups is an AC mains voltage regulator, and it also charges the battery inside the machine. When the mains is interrupted (accidental power outage), the ups immediately supplies 220V ac power to the load through the method of inverter conversion, so that the load can maintain normal work and protect the hardware and software of the load from damage. The ups equipment usually provides protection against both overvoltage and undervoltage.
