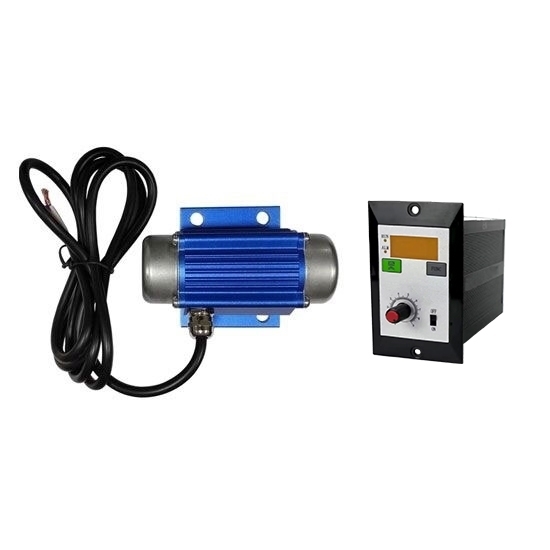

    25W 12V/24V DC Brushless Vibration Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $402.31
    12 volt or 24 volt small industrial vibration motor with power 25W, high speed 7000rpm, force 15kg can adjust the speed of rotation through a speed controller, suitable for material handling, compaction and product testing, etc.
    *
    SKU: ATO-25DCBVM12-Z03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The provided 25W DC 12V/24V DC burshless vibrating motor with eccentric weights through a rotating motor generates uneven centrifugal force, thus causing vibration, used for packing feed machines, topsoil screeners, or various industrial applications.

    Features

    • 25W 12V/24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-25DCBVM12-Z03
    Rated Speed 7000rpm
    Rated Voltage (Motor & Controller) 12V 24V
    Rated Current 2.4A 1.2A
    Power 25W
    Force 15 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Dimensions 105.4mm x 75mm x 47.35mm
    Weight 1.2 kg
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

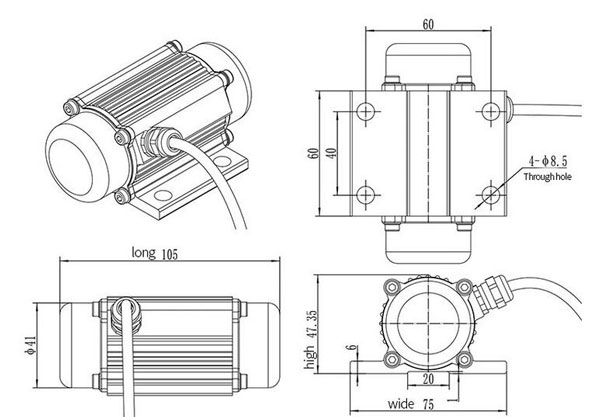

    Dimension (Unit: mm)

     DC brushless vibration motor dimension

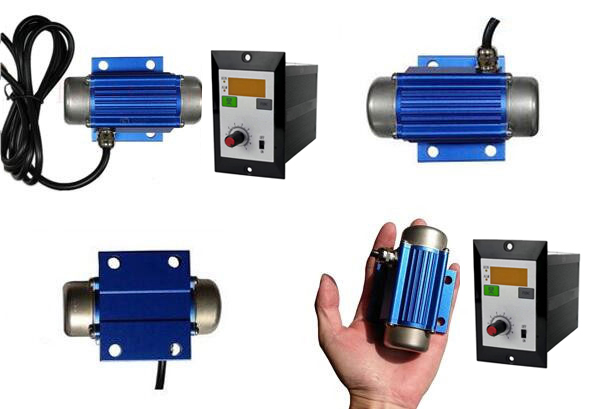

    Appearance Contrast Chart

    DC brushless vibration motor with controller

    Applications

    ATO 25W 12V/24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: Industrial Vibration Electric Motor Working Principle

    ATO industrial vibration motor works by using a rotating electric motor to drive an unbalanced mass (typically an eccentric weight), which generates centrifugal force as it spins, causing vibrations in the equipment or material. The intensity and frequency of the vibration can be controlled by adjusting the motor speed and the size of the eccentric weight. These industrial vibration electric motors are commonly used in applications like material handling, compaction, or product durability testing, where vibrations help move materials, reduce air pockets, or simulate different working conditions.

    Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?
