    12V/24V DC Brushless Vibration Electric Motor with Controller, 10W

    5 out of 5 based on 3 reviews | Write a review
    $388.48
    12V/24V DC brushless vibration motor manufacturer direct sale. This small vibrating electric motor comes with 10W power, 3000rpm rated speed, variable speed controller, stable operation, long service time, and can used for packing feed machine and for topsoil screener.
    *
    SKU: ATO-10DCBVM12-Z03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price 10W 3000rpm brushless vibration electric motor for sale online. 12V or 24 volt DC mini vibration motor can be selected. It is equipped with variable speed display control, IP65 dustproof and waterproof, CE certified, special for industrial needs.

    Features

    • 10W 12V/24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation. It is highly efficient and energy-saving, saving 40-60% of electricity than ordinary motors, and has a long service life, which is 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output. It is resistant to deformation and oxidation and can withstand long-term high-speed operation.

    Specification

    Model ATO-MVB5DCB12-1 ATO-MVB5DCB21-1
    Rated Speed 3000rpm
    Rated Voltage (Motor & Controller) 12V 24V
    Rated Current 0.8A 0.4A
    Power 10W
    Force 3 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Dimensions 105.4mm x 75mm x 47.35mm
    Weight 1.2 kg
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

     DC brushless vibration motor dimension

    Appearance Contrast Chart

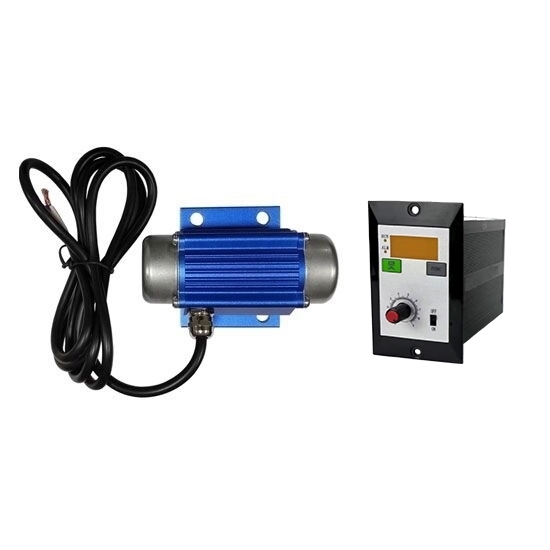

    DC brushless vibration motor with controller

    Applications

    ATO 10W 12V/24V 3000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor with applications

    Tips: Advantages of 10W DC Brushless Vibration Motor

    The working part of the vibrator is a hollow cylinder with a stick makeup. The inside is equipped with an eccentric vibrator. The DC brushless vibrating motor drives the high-speed rotation to generate high-frequency micro-vibration. The vibration frequency can reach 1,200-15,000 times/min, and the vibrating effect is good.

    The structure of the ATO DC vibrating electric motors is simple and the service life is longer than that of an ordinary DC brushless motor, suitable for vibrating beams, columns, walls and other components and general concrete.

    Video 1: How to do VFD control wiring with a self-lock push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 12V/24V DC Brushless Vibration Electric Motor with Controller, 10W
    About variable speed display control
    10W DC Brushless vibration motor 12V / 24V 3000 rpm, variable speed display control. Will this motor run at extremely low rpm? Is it compatible with 120V home power? Run continuously for 8 hours? Is there a smaller model suitable to low rpm vibration of whole bed?
    From: Jeffy | Date: 02/08/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Sorry, the minimum speed of the ATO 10W DC brushless vibration motor is 1000 rpm, and there is no lower speed. In addition, if you require 120V household power supply, you can only chose AC vibration motor, please see on: https://www.ato.com/ac-vibration-motors.
    I have purchased one of the motors here.
    I have purchased one of the motors here. I did not purchase the control unit. I was hoping I could wire the motor directly to a power source and switch it on/off manually. Is this possible?
    From: Stephanie | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, the motor you purchased is a brushless motor, so you cannot wire the motor directly to a power source, you must configure the controller to use it normally.
    Small vibration motor
    This is a small vibration motor with speed regulation function. It works very well after turning on the power, responds quickly, and is lightweight. This vibration motor is a good choice.
    From: Mick | Date: 17/01/2020
    Was this review helpful? Yes No (0/0)
