    30W 12V/24V DC Brushless Vibration Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $407.12
    Factory price 30W 12V/24V DC brushless vibrating electric motor for sale. It is equipped with a variable speed display control, high speed 7000rpm, force 20kg, and IP 65 waterproof level. High quality miniature vibration motor has a longer life than ordinary motors, special for industrial use.
    *
    SKU: ATO-30DCBVM12-Z03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    30W micro DC brushless vibration motor is designed for industrial use. 12 volt or 24 volt variable speed vibration motor can be chosen. High speed 7000rpm, force 20kg, and IP 65 waterproof level, manufacturer direct sale.

    Features

    • 30W 12V/24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-MVB20DCB12-1 ATO-MVB20DCB21-1
    Rated Speed 7000rpm
    Rated Voltage (Motor & Controller) 12V 24V
    Rated Current 3A 1.5A
    Power 30W
    Force 20 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Dimensions 105.4mm x 75mm x 47.35mm
    Weight 1.2 kg
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

     DC brushless vibration motor dimension

    Appearance Contrast Chart

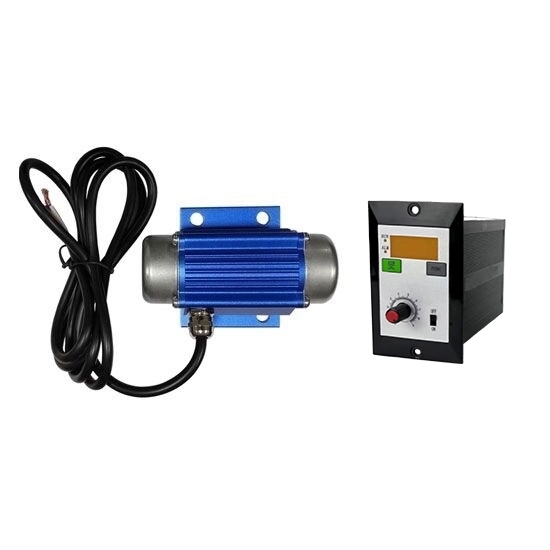

    DC brushless vibration motor with controller

    Applications

    ATO 30W 12V/24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: What is the voltage of a vibration electric motor?

    The voltage of a vibration electric motor can vary widely depending on the specific type, model, and its intended application. Generally, vibration motors are used in small devices (like phones or industrial equipment) and can range from:

    • DC Vibration MotorsTypically operate at voltages like 3V, 5V, 6V, 12V, or 24V. Smaller motors (used in devices like phones or toys) might operate on low voltage like 3V or 5V.
    • AC Vibration MotorsThese can range from 110V to 220V depending on the region and application, though they can be designed for specialized applications that operate on different voltages (like 50V, 80V, etc.).

    For example, vibration motors used in mobile phones or small portable devices often run on low-voltage DC, while larger motors used in industrial settings or for heavy-duty applications might use higher AC voltages.

    Video 1: How to do VFD control wiring with a self-lock push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 30W 12V/24V DC Brushless Vibration Electric Motor with Controller
    Interested in your 30W 24v dc vibrator motor system
    I'm interested in your 30W 24v dc vibrator motor system and have a few questions.
    1. Can it be triggered by an external source?  Or is it manual only?
    2. What are the materials of construction for the motor case and end caps?
    We were using a different vibrator motor (not yours) that failed EMI testing, so we are looking for a replacement.
    From: miah | Date: 28/02/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Our 30W 24v dc vibrator motor can be triggered to start by an external switch signal, and the speed can be adjusted with a 0-5V signal.
    2. The structural material of the motor shell and end cover is aluminum alloy. But we also don't have EMI testing.
    Load more reviews...
