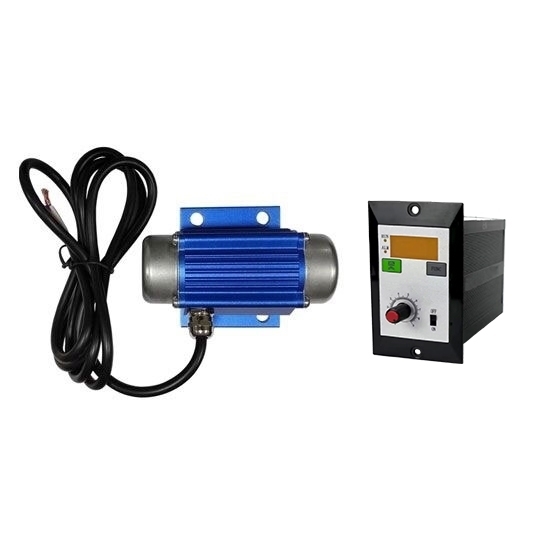

    15W 12V/24V 4500rpm DC Brushless Vibration Motor with Variable Speed Display Control

    5 out of 5 based on 1 reviews | Write a review
    12V DC vibration motor, 15W, 12V and 24V are optional, rated speed of 4500rpm, variable display control, mini size, low noise and high speed. DC brushless vibration motor are widely used in coal construction, electric power and other industries, manufacturer direct sale.
    SKU: ATO-15DCBVM12-Z03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Variable speed display 15W DC vibration motor, 12V or 24V can be selected, rated speed 4500rpm, force 5 KN. It has the features of long service life, accurate digital display and simple speed regulation.

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    1. Stable operation, long life, can adjust the speed of rotation.
    2. Brushless vibration motor is energy-efficient and efficient. The power saving rate is 40-60% of ordinary motors. It has a long span lifetime and 5 times longer life than ordinary motors.
    3. Regulator positioning is accurate and rapid, analog quantity.
    4. Highly light, resistant to deformation and oxidation. Can withstand long-term high-speed operation.


    Model ATO-MVB10DCB12-1 ATO-MVB10DCB21-1
    Rated Speed 4500rpm
    Rated Voltage (Motor & Controller) 12V 24V
    Rated Current 1.2A 0.6A
    Power 15W
    Force 5 kg (Test at no load)
    Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Dimensions 105.4mm x 75mm x 47.35mm
    Weight 1.2 kg
    Certificate CE

    Dimension (unit: mm)

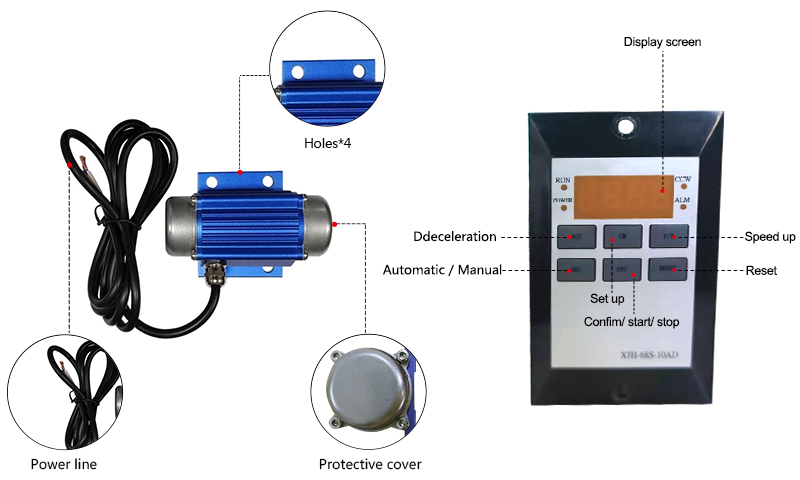

     DC bushless variable dispaly speed vibration motor dimensionAppearance Contrast Chart
    DC brushless vibration motor variable speed-display control.

    Tips: How to deal with the noise of the micro vibration motor?
    1. When changing the pole and rewinding, the fit of the groove is not suitable
    If this is the case, all we have to do is verify the stator and fit the rotor slots.
    2. Friction of the rotor
    Rotor abrasion will also cause noise in micro-vibration motors. The most important thing is to rub against insulating paper or slot wedges. What we have to do is to cut insulation paper or repair slot wedges, which can avoid noise. of.
    3.Bearing is worn or bearing is broken
    If it is faulty, repair or replace it in time.
    4. Looseness of stator and rotor cores
    The first thing we need to do is to check and eliminate the cause of the vibration, and then carry out the core treatment, so as to fundamentally prevent the occurrence of loosening again.
    5. Three-phase voltage imbalance
    What needs to be done is to measure the power supply voltage, and at the same time, it is necessary to check why this imbalance occurs.
    6. Stator winding is wrongly connected
    It will also cause noise in micro-miniature vibration motors. You need to adjust the wiring diagram and then connect it according to the correct method. In addition, a fault in the winding, such as a short circuit, will also cause noise. Open the circuit. The part is heated, and then the broken part is repaired with the wire of the same specification, and then painted.
    Therefore, if there is noise in a small-scale vibration motor, you can use these methods to deal with it, so as to ensure better use.

    This video will show you how to run a variable speed DC vibration motor.

    This video will show you how the speed controller controls the DC brushless motor.

    Existing reviews of 15W 12V/24V 4500rpm DC Brushless Vibration Motor with Variable Speed Display Control
    Speed adjustment of vibration motor
    Here is my situation. The 60w adjustable speed vibrator you make works for my application at 2800-2900 rpm. However, it's very expensive. I would like to find a way to get a vibrator where I can set the rpm. We plan on needing 20 per day, but this is a new product and we are only comfortable getting quotes for 20 at a time at this point.
    From: Ckjaguar | Date: 08/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you can adjust the speed of this motor to 2800-2900 rpm via its speed controller, and will it work at that speed continuously with no issue.
