    DC Brushless Vibration Motor Controller, 24V

    5 out of 5 based on 1 reviews | Write a review
    $178.62
    DC vibration motor variable speed display controller, 24 volt, maximum current limit 12 amp, speed adjustment by rotating panel buttons, LED display, input voltage 20V to 50V, easy to use.
    SKU: ATO-VMC-68S-10AD24
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Variable speed controller for 24V dc vibration motor, LED display, rated current 10A, small size, light weight, stable performance.

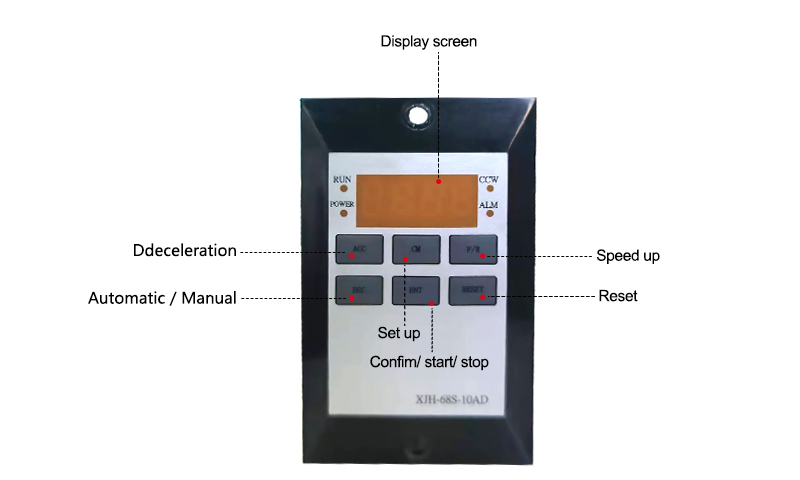

    Variable Speed Display Controller Function

    • Start stop
    • Potentiometer speed control
    • Inertial stop
    • Under-over-voltage protection
    • Limiting
    • Overcurrent protection
    • Locked-rotor protection
    • Alarm signal output
    • Speed signal output
    • No Hall position detection

    Specification

    Model ATO-VMC-68S-10AD24
    Reated Voltage 20-50VDC
    Motor Voltage 24V
    Rated Current 10A
    Limit Current 12A
    Support Maximum Speed Speed above 20000 rpm, the specific speed depends on the motor itself and the load
    Speed Mode 1. Control panel potentiometer: use this potentiometer to adjust the speed
    2. External potentiometer: connect the potentiometer to the terminal block behind the controller for speed regulation
    3. External 5V speed regulation voltage: Connect 5V speed regulation voltage from the terminal block on the back of the controller
    Speed Output PG signal: There is a 5V speed pulse output between this port and the ground. The output frequency is set to P (Hz), the number of motor stages is N, and the speed is F (RPM), then the output speed frequency: P=F*N/60
    Alarm Output ALM signal: There is an alarm pulse output between this port and the ground
    1. In normal operation, this port outputs 5V high level
    2. When it is turned on, but the speed control signal is very low and the motor does not rotate, the port signal is low, that is: when the EN enable key is turned on, as long as the motor does not rotate, the alarm port signal is always low , Prompting that the current status is abnormal or there is a question, to be dealt with
    3. In the case of undervoltage, overvoltage, locked rotor, phase loss, phase short circuit, etc., the port signal is low level
    Forward and Reverse Function F/R: An external switch is connected to the corresponding position of the rear terminal block, one end of the switch is connected to the F/R port, one end is grounded, the switch is turned on and off, and the rotation direction of the motor can be changed
    Start Stop 1. Toggle switch on the panel
    2. Connect the switch to the corresponding position of the rear terminal block to control the start and stop
    Note: The two methods cannot be used at the same time. When using one method, the switch of the other method should be in the on position
    Locked Rotor Protection When the motor is locked, the motor stops working and restarts when the power is turned on
    Power Light Green light: always on when power is on
    Status Light Red light
    When the boot is enabled, the potentiometer or the external voltage is not turned on, and it is in the semi-standby state, it flashes once at an interval
    Enable is not turned on, in standby state, flashes seven times at intervals
    Insulation Resistance Under normal temperature and pressure>100MΩ
    Dielectric Strength 0.5KV at normal temperature and pressure, 1 minute
    Storage Temperature -20℃~ +65℃
    Use Occasions Avoid direct contact with dust, oil fume and corrosive gases
    Operating Temperature 0-45℃
    Humidity <80%, no frost, no frost
    Shock 5.9m/S² MAX
    Storage Humidity 0~95%RH
    Volume 110mm(length)*54mm(width)*118mm(height)
    Weight 0.8kg

    24V DC Brushless Vibration Motor Controller Dimension
    VIbration motor controller dimension
    DC vibration motor controller
    Vibration Motor Controller Wiring Diagram

    Vibration motor controller wiring diagram

    DC Vibration Motor Controller Troubleshooting

    1. The motor does not rotate.
    Check whether the power supply is normal, check whether the wiring of the motor wire is firm and correct, and whether the wiring of the potentiometer is correct and rotated to the correct position.
    2. The motor speed is very slow
    Check whether the voltage is normal.
    3. The alarm LED is always on or flashing continuously
    Except for the blinking of standby and semi-standby, check whether the working voltage is normal.
    4. Alarm and LED is always on
    Check whether the rotor is blocked, check whether there is phase loss, and check whether the phase line is short-circuited.
