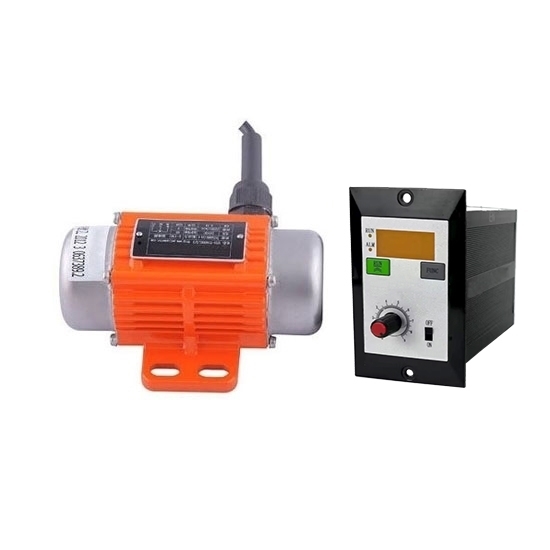

    50W 24 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 5 reviews | Write a review
    $564.41
    Waterproof 50W 24 volt DC brushless vibrating electric motor features a speed display controller, current 3.3A, high speed 7000rpm, 50W power and small size, ideal for material handling, compaction, and other industrial processes.
    SKU: ATO-50DCBVM-244
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low noise 24V DC micro brushless vibrating electric motor offers a digital speed display controller, 50W power, 3.3A current,1.8 kN force, 7000rpm rated speed, suitable for shaker table, mining, chemicals, medical equipment, and food machinery.

    Features

    • 50W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-50DCBVM-244
    Voltage 24V
    Rated Speed Max: 7000rpm, Min: 400rpm
    Current 3.3A
    Power 50W
    Force 1.3 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

    50W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 50W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: DC Vibration Motor Installation on Vibrating Screen Motion Trajectories

    Different DC vibration motor installations and combination methods can generate different vibration trajectories for the vibrating screen machinery to complete various sieving operations. For example, installing a single DC vibration motor can generate circular or elliptical motion trajectories, which is long used in rotary vibrating screens other equipment, installed with the same model and the opposite direction of rotation of the vibration motor can generate a linear motion trajectory, often used in linear vibrating screens and other equipment.

    It is also possible to install two DC vibration motors with different models and different speeds to make the device generate a composite motion trajectory, usually in two forms: dual-frequency composite and dual-amplitude composite. For example, two vibration motors are installed at the feeding end and the discharging end of the vibration screening equipment, so that the feeding end presents large amplitude and low-frequency vibration. In contrast, the output end presents a small amplitude and high-frequency vibration. The middle of the vibration screening equipment overlaps two This kind of movement makes the equipment play a more effective screening role.

    Video 1: How to do VFD control wiring with a self-lock push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 50W 24 Volt DC Brushless Vibrating Electric Motor with Controller
    Lead time for an order of vibration motor
    We are seeing some strange behavior from the 50 Watt drive boards we ordered in October 2022 and would like to order 10 more of the 50W drive boards only, information is below:
    Model ATO-50DCBVM-244
    50W, 24V, 7000rpm DC Brushless Vibration Motor
    Customized low-temperature bearing version with Controller (just the drive PCB only).
    We are also planning to order 100 of these 50 Watt motors with boards plus about 750 of the 30 Watt versions for delivery beginning January 2024.
    Can you give a rough estimate of the lead time for an order of this size?
    From: oz | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Regarding the control board of the 50W vibration motor, could you please provide a video for our reference and confirmation?
    Also, do you want to re-purchase a 50W, 24V, 7000rpm DC Brushless Vibration Motor, PCB drive control board?
    If yes, what is the specific quantity?
    2. For 100 50W motors and 750 30W motors, the estimated lead time is about 30 days.
    Information on technical specifications of 50W brushless DC vibration motor
    Don't you have a pamphlet explaining the relationship between rpm and force?
    ATO-50DCBVM-244
    Then the force for ATO-25DCBVM12-Z03 is expressed in kg, not kN. I just would like some info on all these technical specs. The force for ATO-25DCBVM12-Z03 is expressed in 15kg, equivalent to 150N.
    From: Maven | Date: 10/09/2021
    Was this review helpful? Yes No (0/0)
    Parameters of 50W brushless vibration motor
    Don't you have a pamphlet explaining the relationship between rpm and force?
    ATO-50DCBVM-244
    Then the force for ATO-25DCBVM12-Z03 is expressed in kg, not kN. I just would like some info on all these technical specs.
    The force for ATO-25DCBVM12-Z03 is expressed in 15kg, equivalent to 150N.
    From: Natali | Date: 09/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    When the motor speed is higher, the vibration force will be bigger and the amplitude will be lower, and when the speed is lower, the vibration force will be smaller and the amplitude will be bigger.
    My question about 50W DC brushless vibration motor
    Don't you have a pamphlet explaining the relationship between rpm and force?
    ATO-50DCBVM-244
    Then the force for ATO-25DCBVM12-Z03 is expressed in kg, not kN. I just would like some info on all these technical specs.
    ATO-50DCBVM-244
    From: Nikki | Date: 03/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Then the force for ATO-25DCBVM12-Z03 is expressed in kg, not kN. I just would like some info on all these technical specs.
    The force for ATO-25DCBVM12-Z03 is expressed in 15kg, equivalent to 150N.
    50W DC brushless vibration motor speed
    What is your 24V DC brushless vibration motor minimum speed?
    From: Frizz | Date: 19/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    7200rpm DC vibration motor minimum speed is 1000 rpm.
