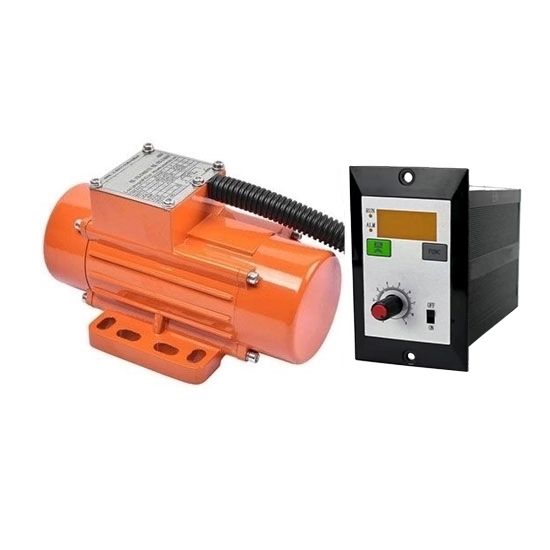

    80W 24 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $596.47
    Wholesale price 80W brushless vibration electric motor operates at 24V DC voltage, 5000 rpm high speed and 3A current. This small vibrate DC motor provides overload and stop protection functions and a user-friendly display speed controller for easy operation.
    SKU: ATO-80DCBVM-2414
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

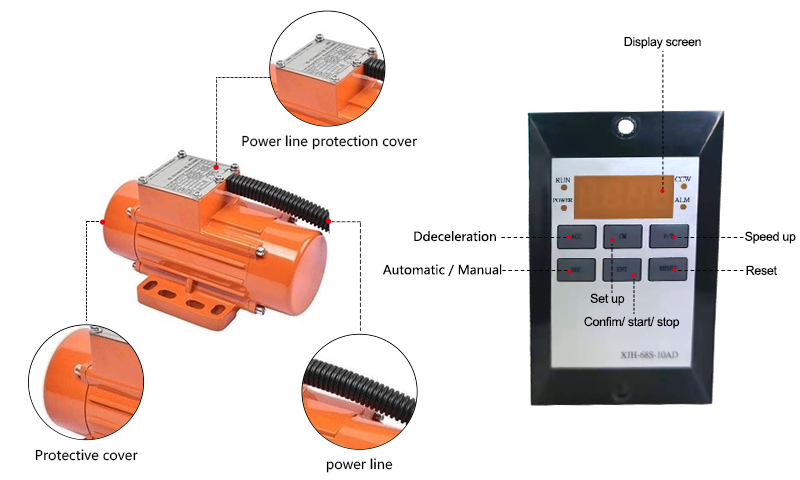

    24 volt DC industrial brushless vibrating electric motor with a digital speed display controller, 80W power, 3A current, 1.6 kN force, 5000rpm rated speed, ideal for mining, chemicals, medical equipment, and food machinery.

    Features

    • 80W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-80DCBVM-2414
    Voltage 24V
    Rated Speed 5000rpm
    Current 3A
    Power 80W
    Force 1.6 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 2.6 kg
    Dimensions 176mm x 110mm x 99mm
    Frame No 14
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

    80W-100W dc brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N O
    14 176 110 99 12 68 25 91.5 85 82 63.5 26.5 15 8.5 8.5 16.5


    Applications

    ATO 80W 24V 5000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: DC Brushless Vibration Motor Working Principle

    The brushless DC vibration motor comprises the motor body and the driver. The motor's stator windings are mostly made of a three-phase symmetric star connection, which is very similar to the three-phase asynchronous motor. To detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, whose function is to receive the start, stop and brake signals of the motor to control the start, stop and brake of the motor. It receives the position sensor signal and the positive and negative rotation signal, which is used to control the on-off of each power tube of the inverter bridge and generate continuous torque. Receive speed instructions and speed feedback signals to control and adjust the speed. Provide protection and display, etc.

    Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?
