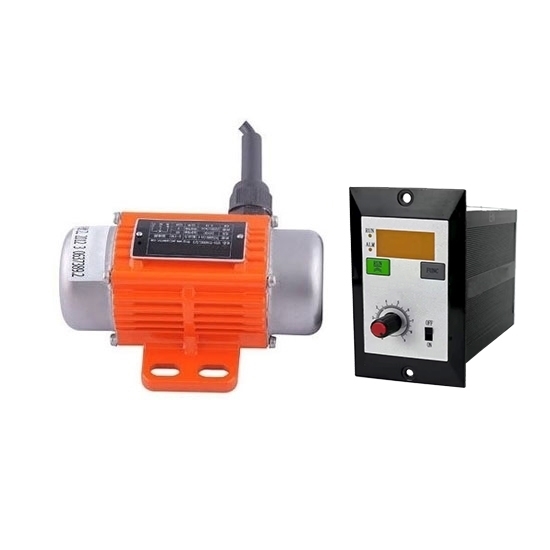

    65W 24 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 2 reviews | Write a review
    $564.41
    Adjustable speed 65W DC 24V brushless vibration motor, 7000rpm rated speed, with speed display controller, convenient speed regulation, accurate digital display. Special voltage, power and speed please contact us, it can be customized.
    SKU: ATO-65DCBVM-244
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    24V DC 65W brushless vibrator motor for sale, rated speed of 7000rpm, current with 3.5A, IP65, waterproof and dust proof, 12 month warranty.

    Features

    • 65W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation. It is highly efficient and energy-saving, saving 40-60% of electricity than ordinary motors, and has a long service life, which is 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output. It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-65DCBVM-244
    Voltage 24V
    Rated Speed 7000rpm
    Current 3.5A
    Power 65W
    Force 1.8 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

    Dimension (Unit: mm)

    65W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 65W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: What is an industrial vibration electric motor?

    An industrial vibration electric motor is a specialized motor designed to generate controlled vibrations for various industrial applications. These motors are used in machinery and equipment where vibration is required to aid in processes like material handling, sorting, compaction, or testing.

    Typically powered by either AC or DC electricity, these motors are built with robust materials such as aluminum or steel to withstand harsh environments. They work by using mechanisms like eccentric masses or linear actuators to create vibrations, ensuring efficient movement and processing of materials. Industrial vibration motors are durable, low-maintenance, and often come with controllers for precise speed and vibration control, making them essential for applications such as vibrating feeders, screens, or conveyors in industries like mining, food processing, and manufacturing.

    Video 1: How to do VFD control wiring with a self-lock push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 65W 24 Volt DC Brushless Vibrating Electric Motor with Controller
    I need help
    I'm looking for details such as eccentric mass weights and radius/other details, shaft thickness, and a frequency vs force curve. I would also like to know how you would go about adjusting the exciting force as shown on https://www.ato.com/65w-dc-brushless-vibration-motor. Further, I would like CAD models/step files for these three motors if possible. Thank you.
    From: Darnell | Date: 18/09/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The vibration force of the motor is regulated by the speed of the driver. If the speed is reduced, the vibration force will be reduced accordingly. The higher the speed, the greater the vibration force.
    2. Unfortunately, we do not provide 3D step files for vibration motors at present. You can only refer to the dimension drawings on the website.
    Questions about 65W DC vibration motor
    Can your 65W DC vibration motor shake the human body (70-100 kg) if it is attached somehow on a platform where a person stands? Can we adjust its speed? And to what range?
    From: Byrne | Date: 18/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the motor can shake up to 160kg. And its speed can be adjusted in the range 400rpm To 7200rpm via its own controller.
