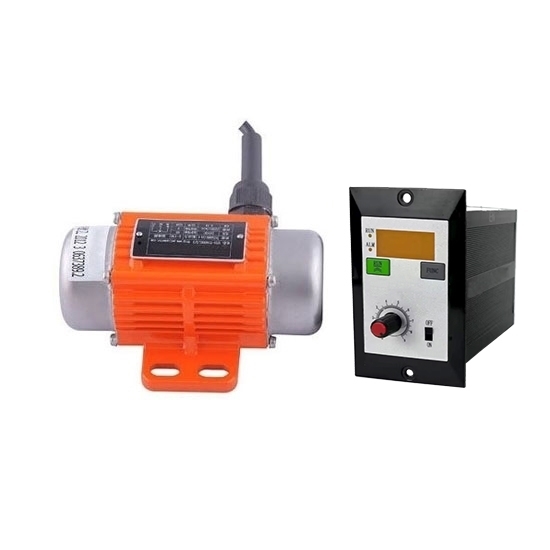

    60W 36 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 2 reviews | Write a review
    $575.29
    Variable 36 volt DC brushless vibration electric motor for sale online, 60W, 2.6 amps, 7000 rpm, with display speed controller, aluminum alloy material, IP65 waterproof and dustproof. Special speed and voltage can be customized.
    SKU: ATO-60DCBVM-364
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Wholesale price 60W brushless vibration motor operates at 36V voltage, 7000 rpm high speed and 2.6A current. The small vibrate DC motor has overload and stop protection functions and a user-friendly display speed controller for easy operation.

    Features

    • 60W 36V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-60DCBVM-364
    Voltage 36V
    Rated Speed 7000rpm
    Current 2.6A
    Power 60W
    Force 1.6 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

    Dimension (Unit: mm)

    60W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 60W 36V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: 2 Types of Industrial DC Vibration Motors

    In the context of industrial DC vibration motors, they are generally classified into brushless DC vibration motors and brushed DC vibration motors. Here’s a breakdown of these two types:

    • Brushless DC Vibration Motors
      No brushes or commutators, reducing friction and wear, which increases efficiency and longevity. Typically more efficient and quieter than brushed motors. Can be controlled with precision, offering smoother operation and more control over vibration intensity and frequency.
    • Brushed DC Vibration Motors
      Use brushes and a commutator to switch the direction of the current and generate motion. Generally simpler and more cost-effective than brushless motors. Can produce more vibration at lower speeds, but the brushes wear out over time and require maintenance.

    Video 1: How to do VFD control wiring with a self-lock push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 60W 36 Volt DC Brushless Vibrating Electric Motor with Controller
    Speed controller suitable for 60W vibration motor
    For your 60W vibration motor. What type of speed controller came with the motor? Does it use pulse width modulation or some other method to reduce the rpm?
    From: Simmons | Date: 28/10/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The control principle of the speed controller is to change the frequency & voltage to adjust the motor speed.
    And for motor capacities above 200W; It will use a VFD, which can use pulse width modulation method to adjust the motor speed.
    Good variable vibration motor
    Good vibration motor with speed control, works well for my project, favorable price.
    From: Sam | Date: 18/01/2020
    Was this review helpful? Yes No (0/0)
