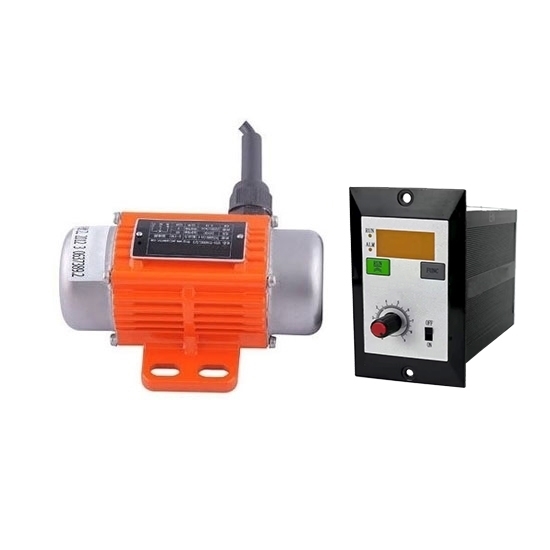

    25W 24 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $500.41
    24V DC micro brushless vibrating electric motor with a digital speed display controller, 25W power, 0.6A current, 0.4 kN force, 3000rpm rated speed, ideal for shaker table, mining, chemicals, medical equipment, and food machinery.
    SKU: ATO-25DCBVM-244
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a 25W 3000rpm 24 volt DC brushless vibration motor at factory price. It comes with 0.6A current, 3000rpm rated speed, IP 65 dustproof and waterproof level, 0.4 kN force, small size and lightweight, manufacturer direct sale.

    Features

    • 25W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-25DCBVM-244
    Voltage 24V
    Rated Speed 3000rpm
    Current 0.6A
    Power 25W
    Force 0.4 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

    25W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 25W 24V 3000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: Why buy a 25W DC brushless electric vibration Motor?

    1. This DC brushless vibration electric motor can replace DC motor speed regulation, frequency converter+frequency conversion motor speed regulation, and asynchronous motor+reducer speed regulation.
    2. 25W 24V DC vibration motor has the advantages of traditional DC motor and eliminates the structure of carbon brush and slip ring.
    3. DC vibration motor can run at low speed and high power and can drive large loads directly without a reducer.
    4. Excellent torque characteristics, medium and low-speed torque performance, large starting torque, small starting current.
    5. Small size, light weight, large output. Stepless speed regulation, wide range of speed regulation, strong overload capacity.
    6. Soft start and stop, braking characteristics, can save the original mechanical braking or electromagnetic braking device.

    Video 1: Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 25W 24 Volt DC Brushless Vibrating Electric Motor with Controller
    Can we adjust the speed of the 25W DC vibration motor?
    Can your 25W DC vibration motor shake the human body (70-100 kg) if it is attached somehow on a platform where a person stands? Can we adjust its speed? And to what range?
    From: Flore | Date: 24/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the motor can shake up to 160kg. And its speed can be adjusted in the range 400rpm To 7200rpm via its own controller.
