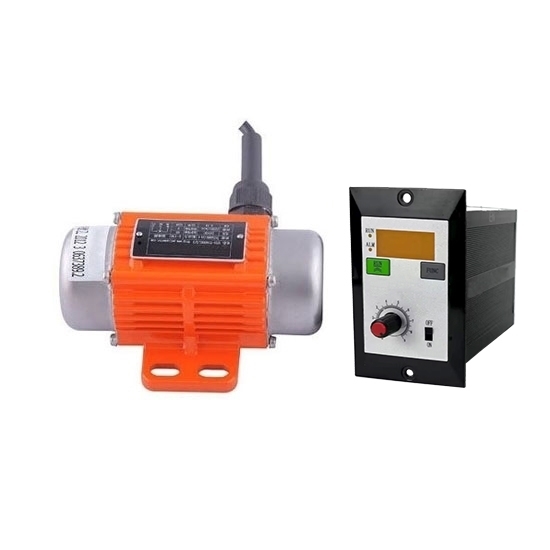

    35W 24 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $525.14
    Buy a 35W 24 volt DC brushless vibration motor online, 0.8 kN force, 4700rpm high speed, IP65 dustproof and waterproof. With a speed display controller, this mini vibrating electric motor can be connected to the computer display to provide accurate data and convenient speed control, suitable for packing feed machines and topsoil screeners.
    *
    SKU: ATO-35DCBVM-244
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    35W miniature brushless vibration electric motor, operating at 24V DC with a rated speed of 4700rpm and a current of 1.3A. Its small design and high efficiency make it an ideal choice for material handling, compaction, and other industrial processes.

    Features

    • 35W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-35DCBVM-244
    Voltage 24V
    Rated Speed 4700rpm
    Current 1.3A
    Power 35W
    Force 0.8 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    Dimension (Unit: mm)

    35W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 35W 24V 4700rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: Vibrating Electric Motors for Screening Equipment

    As a commonly used vibration source for vibration screening equipment, vibrating electric motors have been widely used in various vibration machinery because of their characteristics of strong adaptability, simple use and maintenance, large excitation force, long service life, and economical practicality. Selecting different types of vibration motors and using different installation combinations can bring different vibration trajectories to the vibration screening machine and complete the screening of various equipment.

    A set of adjustable eccentric blocks is installed at each end of the rotor shaft of the vibration electric motor, and the exciting force is generated by the high-speed rotation of the shaft and the eccentric block. The excitement force generated by the block is transmitted to the vibration machine through the motor. Adjust the outside eccentric block to make the included angle with the inside eccentric block to change the excitation force steplessly.

    Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?
