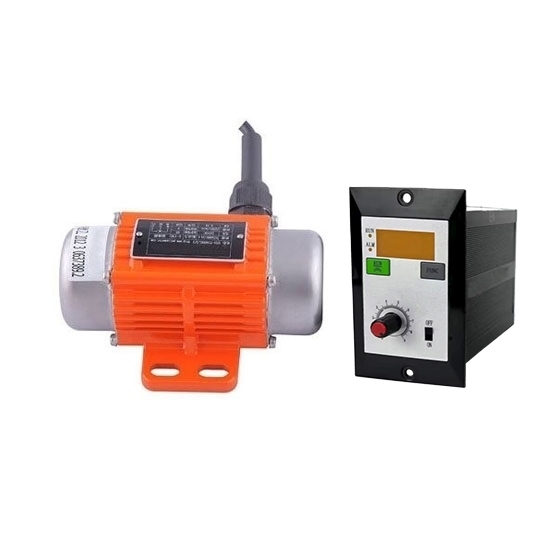

    60W 12 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 2 reviews | Write a review
    $564.41
    60W 12V DC brushless vibrating motor drives a rotor with eccentric weights through a rotating electric motor, generating uneven centrifugal force to cause vibration. 7000rpm rated speed, 5A current, speed display controller, IP65 dustproof and waterproof, adjustable industrial vibration motor, manufacturer direct sale.
    SKU: ATO-60DCBVM-124
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a 60W 7000rpm 12 volt DC brushless vibration electric motor at factory price. It comes with 5A current, 73000rpm rated speed, IP 65 dustproof and waterproof level, 1.6 kN force, small size and lightweight.

    Features

    • 60W 12V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-60DCBVM-124
    Voltage 12V
    Rated Speed 7000rpm
    Current 5A
    Power 60W
    Force 1.6 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

    Dimension (Unit: mm)

    60W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 60W 12V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: Vibration Motor Use Environment

    1. Don't run lightly
      If in normal use, the vibration motor is always in the light-load operation stage, then it is very easy to cause the problem of low working efficiency because the power value is too low. In this case, the input-output ratio is Inappropriate and will lead to the waste of equipment.
    2. Three-phase current imbalance
      There are three main reasons for the current imbalance, which are errors and short circuits in the wiring, and the voltage of the vibration motor being unbalanced.
    3. Don't leave the device in a low-temperature environment for a long time
      If this is the case, it will make the click difficult to start, and many other problems will occur, such as the bearing grease will be frozen, so it can not perform well, and it will appear larger when the equipment is working Noise pollution, and not smooth during operation.
    4. Don't use it in high-altitude places
      If the altitude is too high, it is very unfavorable to the equipment, and because the temperature rise is relatively large, the output power will be smaller, so the output of the equipment will be less, which will easily lead to waste of equipment This is also an aspect that we need to pay special attention to when using vibration motors.

    Video 1: Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 60W 12 Volt DC Brushless Vibrating Electric Motor with Controller
    Can 60W 12V 7200rpm DC Brushless Vibration Motor run based on 14VDC?
    For your 60W 12V 7200rpm DC Brushless Vibration Motor, can it run based on 14VDC? What is the least speed it can be adjusted to?
    From: Pierre | Date: 23/09/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Its okay as long as the input voltage variation is in the range +/- 20%.. And the lower speed you can adjust to is 600rpm.
    What is the maximum weight that 60W DC vibration motor can shake?
    Can your 60W DC vibration motor shake the human body (70-100 kg) if it is attached somehow on a platform where a person stands? Can we adjust its speed? And To what range?
    From: Mack | Date: 07/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the DC vibration motor can shake up to 160kg. And its speed can be adjusted in the range 400rpm To 7200rpm via its own controller.
