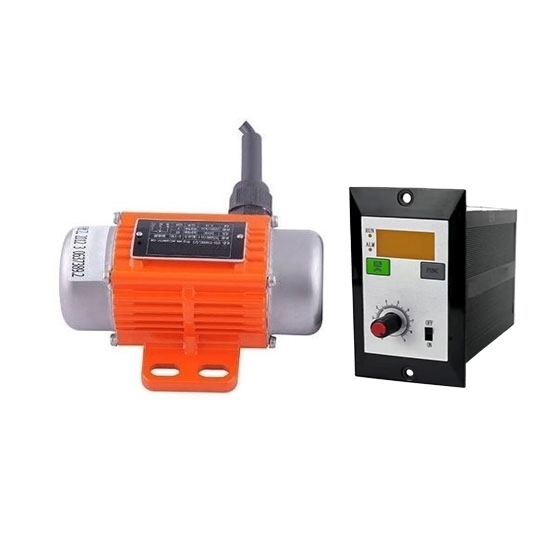

    65W 48 Volt DC Brushless Vibrating Electric Motor with Controller

    5 out of 5 based on 2 reviews | Write a review
    $564.41
    65W 48V DC small brushless vibration electric motor manufacturer direct sale. 7000rpm rated speed, 1.8 kN force, 2A current. This industrial vibration motor is specially equipped with a digital speed controller, which can easily adjust and confirm the speed of rotation.
    SKU: ATO-65DCBVM-484
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a micro vibration motor from ATO.com. It is a brushless vibrating electric motor that provides 65W power, 48 volt DC voltage, 7000rpm rated speed, and 2A current, widely used in the industrial, chemical industry, and food machinery.

    Features

    • 65W 48V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
    • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
    • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
    • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
    • Special voltage and speed can be customized, please contact us.

    Specifications

    Model ATO-65DCBVM-484
    Voltage 48V
    Rated Speed 7000rpm
    Current 2A
    Power 65W
    Force 1.8 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Notes

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

    Dimension (Unit: mm)

    65W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16


    Internal Structure

    DC brushless vibration motor internal structure

    Applications

    ATO 65W 48V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    DC brushless vibration motor applications

    Tips: How to prevent the DC vibration electric motor from heating up?

    To prevent a DC electric vibration motor from overheating, consider the following steps:

    1. Proper Sizing: Ensure the vibration motor is correctly sized for your application to avoid overloading. An undersized motor will struggle and overheat, while an oversized motor can run inefficiently.
    2. Speed Control: Use a motor controller with speed regulation and current limiting to prevent the motor from drawing excessive current and overheating.
    3. Adequate Ventilation: Ensure the vibration electric motor has sufficient airflow, using fans or heat sinks if necessary, to dissipate heat effectively.
      Avoid Overloading: Always operate the motor within its rated load limits to prevent stress and excessive heat generation.
    4. Regular Lubrication: Keep bearings well-lubricated to minimize friction and heat. Worn bearings increase resistance and heat.
    5. Ambient Temperature: Ensure the motor operates in a suitable temperature range. If the surrounding environment is too hot, it may increase the risk of overheating.
    6. Protection Devices: Install thermal protection and overload relays to automatically shut down the vibration motor if it exceeds safe temperature levels.
    7. Proper Wiring: Ensure the wiring is properly sized and connections are secure. Poor electrical connections can cause resistance and generate heat.

    Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 65W 48 Volt DC Brushless Vibrating Electric Motor with Controller
    Here are some questions
    On the link for the 65W motor, what is the maximum weight you can put? What is the shaft diameter? Is the 1.8kN specified force the default of the device, but I can make it heavier? Or is that the maximum that the system will allow?
    From: Wilmoth | Date: 29/09/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. 1.8KN is the maximum vibration force of a 65W motor. The vibration force of the motor is set to the maximum when it leaves the factory. The vibration force of the motor can only be adjusted downward, Not upward.  So if you want a stronger vibration force, you can only buy a motor with a larger capacity.
    2. The vibration force can also be adjusted by adjusting the angle of the eccentric block to reduce the vibration force. The larger the opening angle of the eccentric block, the greater the vibration force. But note: the number and angle of the eccentric blocks at both ends need to be kept consistent during adjustment.
    Recommendations for brushless vibration motors
    The vibration platform area is 1.5m x 1.5m
    I don't know the needed force
    I just know the weight of the platform and the load
    Both are about 150 to 200 kgm
    So I need to know the suitable motor for vibrating this total load. Advice, please.
    From: Derekw | Date: 17/06/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
