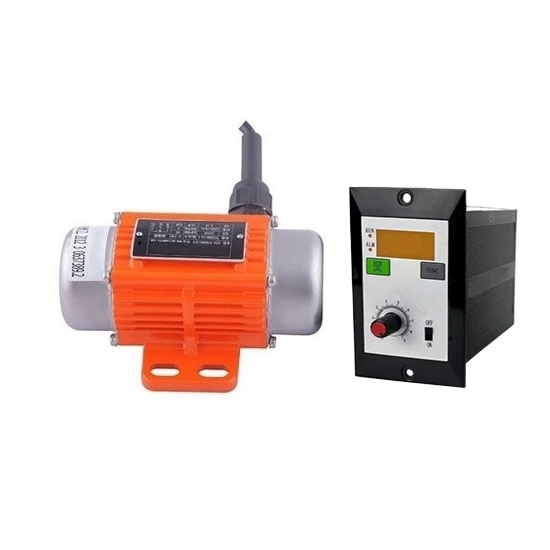

    70W 36V 7000rpm DC Brushless Vibration Motor with Speed Display Controller

    5 out of 5 based on 2 reviews | Write a review
    70W DC brushless vibration motor, 36V, rated speed of 7000rpm, with speed digital speed display controller. High efficiency and low noise, special voltage and speed can be customized, manufacturer direct sale.
    SKU: ATO-70DCBVM-364
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    36V DC brushless vibration motor, 70W, 7000rpm, force 2 KN, it can equip with display speed controller, precise digital display and easy to use.

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

    1. Brushless vibration motor is energy-efficient and efficient. The power saving rate is 40-60% of ordinary motors. It has a long life and 5 times longer life than ordinary motors.
    2. Regulator positioning is accurate and rapid, analog quantity.
    3. Highly light, resistant to deformation and oxidation. Can withstand long-term high-speed operation.
    4. Special voltage and speed can be customized, please contact us.


    Model ATO-70DCBVM-364
    Voltage 36V
    Rated Speed 7000rpm
    Current 2.8A
    Power 70W
    Force 2 kN (Test at no load)
    Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 1.8 kg
    Dimensions 146mm x 110mm x 69mm
    Frame No 4
    Certificate CE

    Dimension (unit: mm)
    25W DC brushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N
    4 146 110 68.5 9 60.4 27.5 45 27.5 30.5 91.5 9 17.5 55 M-16

    Internal Structure
    DC brushless vibration motor internal structure

    DC brushless vibration motor applications

    Tips: Why do you need an ATO vibration motor?

    1. Low vibration and noise
    The vibration and noise of motors are a common problem. The use of vibration motors can significantly reduce the noise during the operation of mechanical equipment. The excitation force generated by eccentric blocks and shaft centrifugation, coupled with appropriate power, the resulting vibration force is large. However, due to the weight and volume of the vibration motor itself, the noise of the mechanical operation will be significantly reduced.
    2. Rarely affected by power
    When the power supply voltage fluctuates, ordinary motors are always affected because of this, resulting in large changes in the excitation force, which is also very unfavorable to the operation of the machine. Vibration motors are rarely affected by fluctuations in the power supply voltage, so there is almost no need to worry about this.
    3. Low maintenance cost
    When customers buy a motor, in addition to considering the purchase price of the motor, they often have to consider the later maintenance costs of their equipment. The equipment height of ATO vibration motor motor is low, so it is more convenient to check the cables regularly. Bearings are the core components of yzs motors. Therefore, during the regular maintenance of vibration motor motors, do not forget to check the use of bearings. Because electromagnetic motors use springs, the weight and spring clearance must be adjusted regularly.

    This video will show you how to run a variable speed DC vibration motor.

    This video will show you how the speed controller controls the DC brushless motor.

    Existing reviews of 70W 36V 7000rpm DC Brushless Vibration Motor with Speed Display Controller
    What is the vibration amplitude of 70W DC vibration motor?
    What is the amplitude of vibration for your 70W DC vibration motor?
    From: Michael | Date: 14/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    At 3000rpm, the vibration amplitude of 70W DC vibration motor is 1-2mm.
    At 7200 rpm, the vibration amplitude of the 70W DC vibration motor is 0.5-1.5 mm.
    Not bad DC Vibration Motor
    I received it on the eighth day after I paid, and we were satisfied with the exquisite appearance, small motor, good vibration, lol.
    From: Greg | Date: 02/01/2020
    Was this review helpful? Yes No (0/0)
