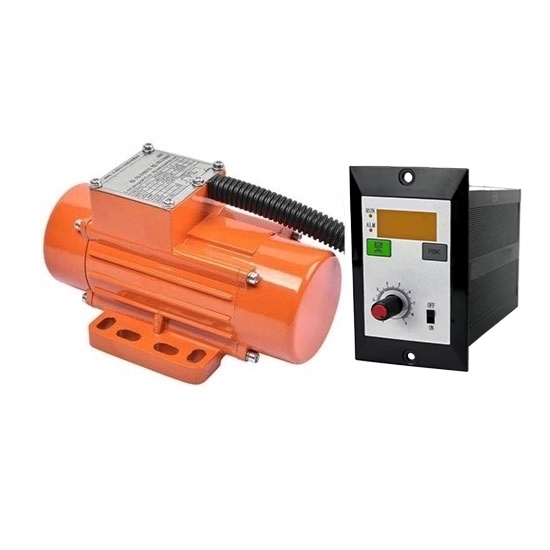

    80W 36V 5000rpm DC Brushless Vibration Motor with Speed Display Controller

    36V DC brushless vibration motor, 80W, 5000rpm rated speed, equip with speed digital controller, speed and current can be accurately displayed. It is used in mining, metallurgy, coal, and electric power.
    SKU: ATO-80DCBVM-3614
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    80W DC 36V brushless vibrating motor for sale, rated speed 5000 rpm,  the service life is five times that of ordinary motor. Low cost and manufacturer direct sale.

    1. +/- 20% voltage tolerance.
    2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

    1. Brushless vibration motor is energy-efficient and efficient. The power saving rate is 40-60% of ordinary motors. It has a long life and 5 times longer life than ordinary motors.
    2. Regulator positioning is accurate and rapid, analog quantity.
    3. Highly light, resistant to deformation and oxidation. Can withstand long-term high-speed operation.
    4. Special voltage and speed can be customized, please contact us.


    Model ATO-80DCBVM-3614
    Voltage 36V
    Rated Speed 5000rpm
    Current 2A
    Power 80W
    Force 1.6 kN (Test at no load)
    Note: In practical application, the seismic force may be reduced by about 30%.
    Protection Rank IP65 (Dustproof and Waterproof)
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)
    Cooling Mode Natural Cooling (IC410)
    Working System S1 (Continuous Duty)
    Weight 2.6 kg
    Dimensions 176mm x 110mm x 99mm
    Frame No 14
    Certificate CE

    Dimension (unit: mm)
    80W-100W dc bushless vibration motor dimension

    Frame No A B C D E F G H I J K L M N O
    14 176 110 99 12 68 25 91.5 85 82 63.5 26.5 15 8.5 8.5 16.5

    DC brushless vibration motor applications

    Tips: Reasons for smoke emission during vibration motor operation

    1. Cage rotor broken bars inside the vibration motor.
    2. The vibration motor is overloaded or started frequently when running.
    3. The fan of the vibration motor fails, resulting in poor ventilation.
    4. When the vibration motor is running, the phase is missing, and the two phases are running. The lack of phase means the lack of a live wire. If the vibration motor lacks a live wire due to various reasons, it will rotate unevenly and slowly while the vibration motor is running. At the same time, it will generate heat. Symptoms of smoke or burning of vibration motor.

    Solution to smoke generated by vibration motor in operation
    1. The solution is to activate the thermal relay protection. In the absence of phase, the contactor can protect two of them to open automatically when the phase is missing, and the thermal relay can cut off the contactor when the current is overcurrent.
    2. Check, repair and replace the fan of the vibration motor.
    3. At this point, we need to pay attention to the start of the vibration motor when the load reduction operation is taken.
    4. At this time, we can reduce the power supply voltage of the vibration motor (such as adjusting the transformer of the power supply transformer) and correct the connection method.

    This video will show you how to run a variable speed DC vibration motor.

    This video will show you how the speed controller controls the DC brushless motor.
