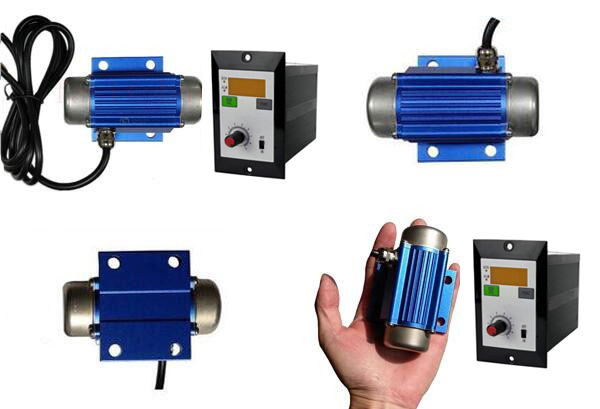

    20W 24V DC Brushless Vibration Electric Motor with Controller

    5 out of 5 based on 1 reviews | Write a review
    $552.46
    Waterproof 20W 24V DC brushless vibration electric motor has a variable speed controller, force up to 20kg and 7000 rpm high speed. High-quality copper wire, low heat generation, long lifespan, factory price, manufacturer direct sale.
    SKU: ATO-20DCBVM12-Z03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The provided 20W brushless vibrating motor operates at 24 volt DC voltage and 7,000 rpm high speed, designed for concrete mixer trucks, construction site vibrating rulers, highway snowplows, small vibrating screens, vegetable washers and other equipment.

    Features

    • 20W 24V DC brushless vibration motor is designed for consistent operation with extended durability, capable of adjusting rotation speed as needed.
    • It features computer-based speed control and electrode start-stop technology, ushering in the era of smart vibration motors.
    • This industrial DC vibration electric motor ensures low heat generation and fast heat dissipation, providing excellent energy efficiency and extended service life.
    • IP 65 Dustproof & Waterproof: Built to withstand harsh environments, can continuous operation for up to 24 hours.

    Specifications

    Controller model ATO-XJH-68S-8AD-RS
    Vibration meter model ATO-PT-MVB5DCB24
    Rated Speed 7000rpm
    Rated Voltage (Motor & Controller) 24V
    Rated Current 1.5A
    Power 20W
    Protection Rank IP65 (Dustproof and Waterproof)
    Working System S1 (Continuous Duty)
    Weight 20kg
    Material Aluminum alloy
    Dimensions 107mm x 60mm x 40.7mm
    Insulation Grade F (The Highest Heat Resistant Temperature is 155℃)

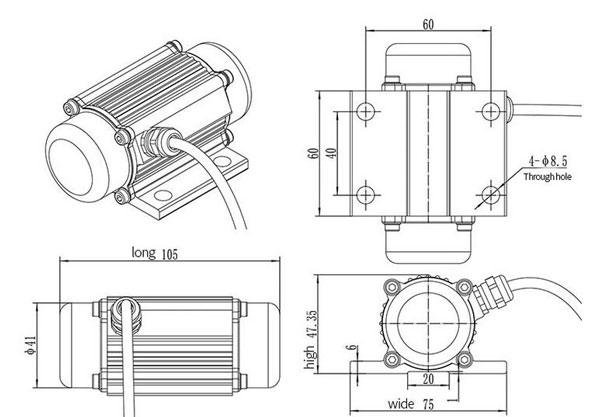

    Dimension (Unit: mm)

     Dimensions of brushless vibration motor with controller

     Micro brushless vibration motor

    Applications

    ATO 20W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

    Applications of vibration motor with controller

    Tips: 20W 24V DC Brushless Vibration Motor Controller Installation instructions

    It is necessary to install and use drivers correctly, as DC vibration electric motors require controllers to operate.

    Control/power input terminal:

    • Brown blue thick wire, connect to 24V DC power supply, be careful not to connect positive/negative in reverse. Brown is connected to positive pole+, blue is connected to negative pole -.
    • Blue and black thin wires can be connected to an additional start-stop switch, and the vibration motor can be started and stopped without the need for a computer.
    • Red and yellow thin lines, connected to USB to RS485 adapter, red connected to A, yellow connected to B.

    Motor control output terminal:

    • The bare wire version should be connected to the driver, and the corresponding color should be connected. After connection, pay attention to insulation.
    • The aviation plug can be directly inserted into the controller output port and tightened to complete the installation.

    20W 24V DC brushless vibration motor controller Installation instructions

    Video 1: Video 1: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Video 2: How does the speed controller control the DC brushless motor?

    Video 3: How to run a variable speed DC vibration motor?

    Existing reviews of 20W 24V DC Brushless Vibration Electric Motor with Controller
    What is your 20W DC vibration motor minimum speed?
    What is your 20W DC vibration motor minimum speed?
    From: Blembocki | Date: 08/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    20W DC vibration motor minimum speed is 1000rpm.
