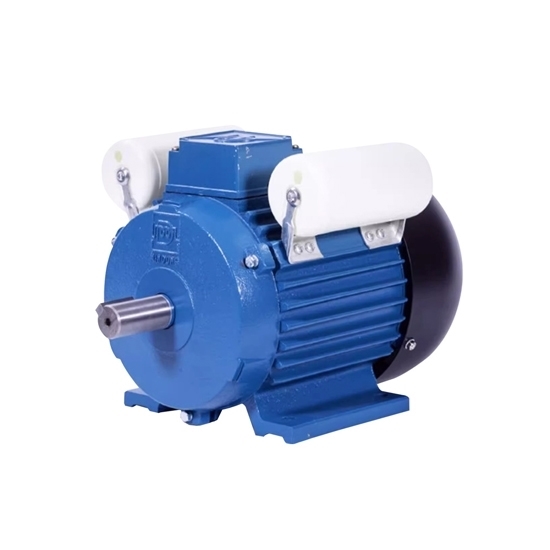

3/4 hp (0.55kW) 220V Single Phase AC Induction Motor

5 out of 5 based on 2 reviews | Write a review

$323.23

High efficiency 0.75 hp single phase motor for sale online. It works at 50Hz/60Hz frequency and is available with speed 1500rpm/3000rpm, 220V/110V/230V/240V voltage. Economical 550W 1 phase induction motor has a start capacitor and run capacitor to provide zero starting torque at rest, easy to repair and maintain, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Voltage (V) *
Speed *

SKU: ATO-SPM-550

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview
Related Video

Low price 0.75 hp single phase induction motor with two ac capacitors is an induction motor. 1500rpm/3000rpm speed and 220V/110V/230V/240V voltage for selection. 550W single phase asynchronous motor can provide zero starting torque when stationary, high efficiency for homes, offices, stores and smalll non-industrial companies.

Specifications

Model	ATO-YL712-2	ATO-YL801-4
Rated Output	0.55kW (0.75hp)
Efficiency	70%	68%
Power Factor	0.92 COSφ
Rated Speed	2800rpm	1400rpm
Rated Current	3.71A	2.69A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times
ls/ln	21 times	12 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	145	145	140	105	180	255
80	125	100	50	19	40	6	15.5	80	10	160	165	150	120	200	295

Details

Tips: Applications Of Single Phase Induction Motors

Single phase induction motors are widely used. Not only is it used in large quantities in production, but it is also closely related to people's daily life. With the improvement of people's living standards, the consumption of single phase motors for household appliances is increasing.

Single phase motors are used in the production of micro water pumps, refiners, threshers, grinders, woodworking machinery, medical equipment, etc. In terms of life, there are electric fans, hairdryers, exhaust fans, washing machines, refrigerators, etc. There are many types, but the power is relatively small.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of 3/4 hp (0.55kW) 220V Single Phase AC Induction Motor

Do you have 4 pole motors?

I need it to have four poles.

From: Michael | Date: 04/09/2023

Was this review helpful? Yes No (0/0)

ATO Responded

We can make 4 pole motors, please note 4 poles when placing an order, the price remains unchanged.
Please refer to our website to purchase: https://www.ato.com/3-4-hp-single-phase-motor

Believe to be smart purchase

I bought a 0.55kW induction motor, which came in timely, easy to hook up and is working great. Used it on a compressor.

From: zzt | Date: 26/04/2022

Was this review helpful? Yes No (0/0)

Write your review for 3/4 hp (0.55kW) 220V Single Phase AC Induction Motor
