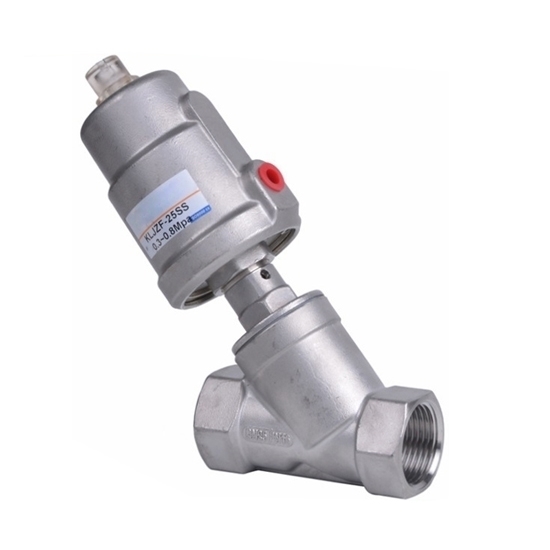

    3/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position

    $111.19
    Lightweight pneumatic angle seat valve is equipped with single acting stainless steel or plastic actuator to control air, water, oil, gas and steam, 3/4 inch (DN20) thread port, 2 way 2 position, stainless steel body and PTFE sealing, air pressure 0.4~0.8MPa, high performance and low price.
    SKU: ATO-ANGLE-20
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Compact size pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

    Specification

    • Model: ATO-KLJZF-DN20
    • Thread Port: ZG3/4 inch (DN20)
    • Working Medium: Air, Water, Oil, Gas, Steam
    • Medium Temperature: -10℃~+180℃
    • Ambient Temperature: -10℃~+60℃
    • Nominal Pressure: 1.6MPa
    • Air Pressure: 0.4~0.8MPa
    • Valve Body Material: Stainless Steel (SS304, SS316)
    • Sealing Material: PTFE
    • Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

    Angle Seat Valve with SS Actuator Dimension (Unit: mm)

    Dimensions of angle seat valve with stainless steel actuator

    Actuator D R P G H L L1 T
    50 62 33.5 ZG1/8" ZG3/4" 138 144 75 16


    Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

    Dimensions of angle seat valve with plastic actuator

    Actuator D A B C φE F G H
    50 ZG3/4" 95 180 16 64 44 112 145

    Tips: What are the connection methods of pneumatic angle seat valve?

    There are four types of connection methods of pneumatic angle seat valve, including tri-clamp connection, threaded connection, flanged connection, welding connection, but the most widely used method is threaded connection.

    1. Tri-clamp connection: Now the light industrial automation assembly line equipment is developing rapidly, the pressure range tri-clamp angle seat valve is basically low, generally controlled at 0.6~1.6mpa, which is convenient for technical installation and disassembly.
    2. Threaded connection: It refers to the installation of internal thread screws at both ends of the angle seat valve, which is basically used for operation at high temperature, and the temperature resistance is up to +300 degrees Celsius.
    3. Flange connection: It means that the two ends of the angle seat valve are connected by flanges, and the scope of use is mainly engineering pipelines to control the flow.
    4. Welding connection: It means that the two ends of the angle seat valve are directly welded and connected to the corresponding pipe port.
