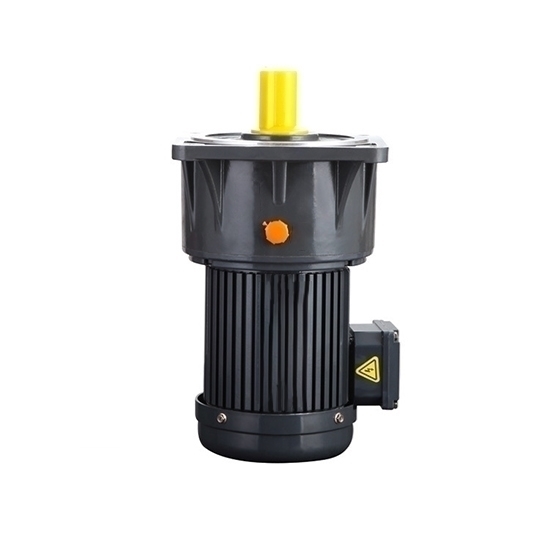

    3 hp (2.2kW) 3-Phase AC Gear Motor, Vertical, Ratio 3~100

    5 out of 5 based on 1 reviews | Write a review
    $952.31
    High torque AC gear motor with competitive price, operated by 3-phase 220V/380V power supply, input power 3 hp (2.2kW), gear ratio range from 3:1~100:1 for selection, torque 3.2~126 kg.m, supports vertical or horizontal installation. For power cut engine conveniently, a brake is recommended to match with AC geared motor.
    SKU: ATO-GEAR-HV2200
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    2200 watt 3-phase gear motor outputs high torque and low rpm, gear ratio is available in 3~100:1. The 3 hp gear reduction motor can be mounted in vertical or horizontal direction.

    Basic Specification

    Model ATO-CV40-2200-10-S
    Rated Power 3 hp (2200W)
    Rated Voltage 3-phase 220V, 50/60Hz
    3-phase 380-415V, 50/60Hz
    Gear Ratio 3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 45:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1
    Duty Continuous running
    Working Environment Temperature 10℃~+40℃
    Humidity ≤90%
    Pole 4P (6P)
    Working Height ≤1000m
    Standard GB755/IEC-60034

    3 hp (2.2kW) AC Gear Motor Load Current Value

    Phase 3-Phase
    Frequency 50Hz 60Hz
    Voltage 220V 380V 415V 440V 220V 380V 440V 460V
    Current 8.94A 5.18A 4.47A 4.47A 8.70A 5.04A 4.35A 4.16A

    3 hp (2.2kW) AC Gear Motor Output Torque

    Gear Ratio  3 5 10 15 20 25 30 40 45 50 60 70 80 90 100
    Output Speed (rpm) 50Hz 465 300 150 100  75  60  50  37  33  30  25 21 19 17 15
    60Hz 570 360  180 120 90 72  60  45 40 36 30 25 23 20 18
    Output Torque (kg.m)  50Hz 3.8 6.72 13.7 20.1 26.8 33.6 40.3 52 49.8 65.1 78.1 92.5 105 113 126
    60Hz 3.2 5.6 11.2 16.8 22.4 28 33.6 43.4 49.6 54.3 65.1 77.1 87.5 94.3 105

    3 hp (2.2kW) Horizontal AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M X Y Z S P Q W T Weight (kg)
    3~40 40 530 150 210 265 205 15 36 83 23 220 250 165 160 40 65 60 10 43.5 58
    45~100 50 580 170 265 335 238 18 51 120 31.5 220 308 200 160 50 80 75 14 54 97

    3 hp (2.2kW) Vertical AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M Y Z S P Q W T Weight (kg)
    3~40 40 530 230 310 290 268 15 36 83 21 220 5 160 40 65 60 10 43.5 58
    45~100 50 580 280 390 369 341 18 51 92 25 220 5 160 50 80 75 14 54 97

    Terminal Box Direction (From Output Shaft)

    Terminal Box Direction of 3-Phase AC Gear Motor, Horizontal/vertical

    AC Gear Motor Standard Installation

    • All the ATO 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
    • In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
    • In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

    Air hole direction of 3-Phase AC Gear Motor, Horizontal/vertical

    Tips: 3-Phase AC gear motor troubleshooting.

    Trouble Cause Analysis Solution
    Noise Knocking Hurt Gear Surface Replace Gear Set
    Continually Bad Bearing Replace Bearing
    Periodically Particle Inside Check Gear
    fizzing Lack of Lubricant Fill With Lub-Oil
    Intermittently Dirty Lubricant Replace Lubricant
    Vibration Mounting Base Vibration Bad Surface Mounting Re-Adjust Mounting Base
    Output Shaft Vibration Bad Bearing Replace Bearing
    Inside Gear Parts vibration Gear Wounded Replace Wounded Gear
    Housing Vibration Bad Gear Assembly Re-Adjust Gear Set
    Leakage Oil Seal Leakage Oil Seal Too Harden Replace Wounded Oil Seal
    Housing Leakage Housing Had Sand Hole Replace Sand Hole Housing
    Connect Surface Leakage O-Ring Broken Replace Wounded O-Ring
    Bad Oil Seal Oil Seal Too Tight Replace Tighten Oil Seal
    Over Heating Housing Too Heat Over Load Running Re-Calculate Loading
    Less Lubricant Lack of Lubricant FilI With Lubricant
    Motor Too Heat Overload Motor Replace New Motor
