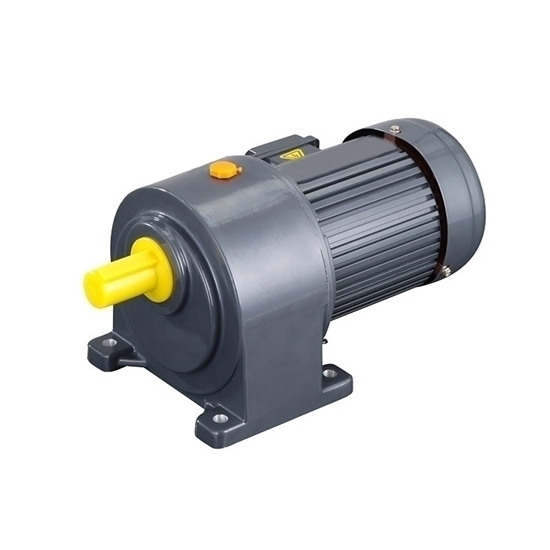

    1 hp (750W) 3-Phase AC Gear Motor, Ratio 3~100

    5 out of 5 based on 1 reviews | Write a review
    $611.69
    Good price 3-phase AC gear motor works at 1 hp rated power, gear ratio 3:1~100:1 for selection, torque 1.1~43.2 kg.m, shaft diameter 28mm/32mm, power supply 1-phase/3-phase 110V/220V/380V, horizontal/vertical installation. 750W electric gear motor can operated with a 90V brake to control power cutting.
    SKU: ATO-GEAR-HV750
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    1 hp 3 -phase AC gear motor is the electric motor for speed control, producing high torque, matched brake is optional, different gear ratio to choose (3~100:1), the smaller reduction ratio, the higher gearbox output speed.

    Basic Specification

    Model ATO-CH28-750-15-S-G1
    Rated Power 750W (1 hp)
    Rated Voltage Single-phase 110V, 50/60Hz
    Single-phase 220V, 50/60Hz
    3-phase 220V, 50/60Hz
    3-phase 380-415V, 50/60Hz
    Gear Ratio 3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 45:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1
    Duty Continuous running
    Working Environment Temperature 10℃~+40℃
    Humidity ≤90%
    Pole 4P (6P)
    Working Height ≤1000m
    Standard GB755/IEC-60034

    1 hp (750W) AC Gear Motor Load Current Value

    Phase 3-Phase
    Frequency 50Hz 60Hz
    Voltage 220V 380V 415V 440V 220V 380V 440V 460V
    Current 3.67A 2.13A 1.94A 1.84A 3.40A 1.96A 1.70A 1.63A
    Phase Single-Phase
    Frequency 50Hz 60Hz
    Voltage 110V 115V 220V 230V 110V 115V 220V 230V
    Current 11.40A 10.80A 5.80A 5.40A 9.50A 9.00A 4.83A 4.50A

    1 hp (750W) AC Gear Motor Output Torque

    Gear Ratio  3 5 10 15 20 25 30 40 45 50 60 70 80 90 100
    Output Speed (rpm) 50Hz 465 300 150 100  75  60  50  37  33  30  25 21 19 17 15
    60Hz 570 360  180 120 90 72  60  45 40 36 30 25 23 20 18
    Output Torque (kg.m)  50Hz 1.3 2.2 4.5 6.8 9 11.2 13.5 17.5 20.6 21.9 26.2 31.5 35.5 39.3 43.2
    60Hz 1.1 1.9 3.8 5.7 7.5 9.4 11.3 14.6 17 18.3 21.9 26.3 29.6 32.8 36

    1 hp (750W) Horizontal AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M X Y Z S P Q W T Weight (kg)
    3~25 28 380 90 140 178 120 11 20.8 70 14 160 178 116 125 28 45 40 7 31 14.5
    30~120 32 415 130 170 200 168 13 30.2 70 18 160 215 138.5 125 32 55 50 10 35 28

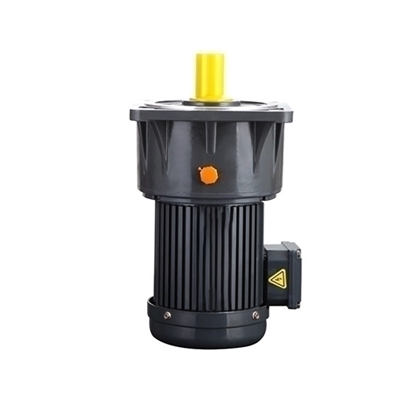

    1 hp (750W) Vertical AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M Y Z S P Q W T Weight (kg)
    3~25 28 380 170 220 218 200 11 20.8 58 14 160 4 125 28 45 40 7 31 15
    30~120 32 415 185 255 248 225 13 30 66 16 160 4 125 32 55 50 10 35 26.5

    Terminal Box Direction (From Output Shaft)

    Terminal Box Direction of 3-Phase AC Gear Motor, Horizontal/vertical

    AC Gear Motor Standard Installation

    • All the ATO 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
    • In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
    • In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

    Air hole direction of 3-Phase AC Gear Motor, Horizontal/vertical

    Tips: Precautions for using 3-phase AC gear motor.

    1. Do not use 3-phase AC gear motor outside the specifications specified on the gearbox and motor nameplate or product catalog to avoid electric shock, injury and damage to the device.
    2. Do not put your fingers or objects into the opening of gear box or the 3-phase AC gear motor.
    3. Do not use a damaged gearbox or gear motor to avoid injury, fire, etc.
    4. Do not remove the nameplate. If users modify the 3-phase AC gear motor privately, the damage will not be covered by the warranty.
    5. When moving the 3-phase AC gear motor, avoid dangerous actions such as falling off or overturning.
    6. It is strictly forbidden to place combustibles around the gearbox and motor to avoid fire.
    7. Do not place objects around the 3-phase AC gear motor to avoid affecting the ventilation and cooling of the motor, or even burns or fire due to excessive heat.
    8. Do not touch the wheel, the end of motor shaft, and the key groove of gear without gloves to avoid injury.
    9. In the rotating part of 3-phase AC gear motor, please install a safety cover or other devices to prevent injuries.
    10. Before connecting with other machinery, please confirm the rotation direction. If the rotation direction is incorrect, it may cause personal injury or damage the device.
