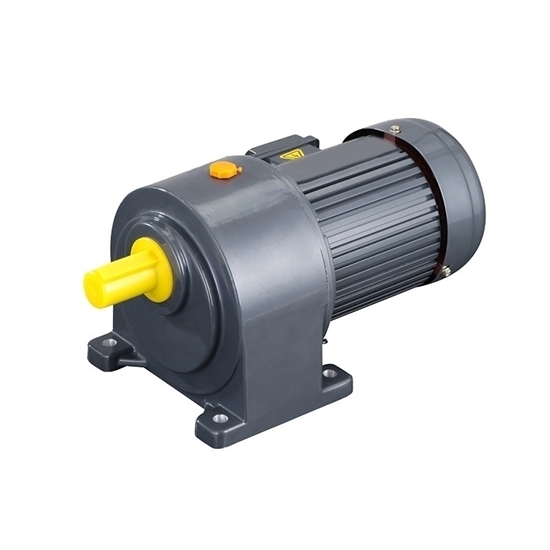

    200W 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    5 out of 5 based on 1 reviews | Write a review
    $405.69
    Buy 3-phase AC gear motor at good price. Rated power 200W, power supply 110V/220V/380V at 3-phase or single phase, optional gear ratio 3:1~100:1, output torque 0.31-11.5 kg.m, output shaft diameter 18mm/22mm/28mm, horizontal/vertical installation. Matched with brake to control speed better.
    SKU: ATO-GEAR-HV200
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Low rpm 3-phase AC motor adds reduction gearbox working at 200W power. Gear ratios 3:1 to 100:1 to choose, corresponding speed rpm value 465~15, horizontal or vertical mounting direction. A brake is recommended to be used with the electric geared motor, for stopping machine safely.

    Basic Specification

    Model ATO-CH22-200-15-S
    Rated Power 200W
    Rated Voltage Single-phase 110V, 50/60Hz
    Single-phase 220V, 50/60Hz
    3-phase 220V, 50/60Hz
    3-phase 380-415V, 50/60Hz
    Gear Ratio 3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 45:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1
    Duty Continuous running
    Working Environment Temperature 10℃~+40℃
    Humidity ≤90%
    Pole 4P (6P)
    Working Height ≤1000m
    Standard GB755/IEC-60034

    200W AC Gear Motor Load Current Value

    Phase 3-Phase
    Frequency 50Hz 60Hz
    Voltage 220V 380V 415V 440V 220V 380V 440V 460V
    Current 1.15A 0.67A 0.70A 0.58A 1.10A 0.63A 0.55A 0.52A
    Phase Single-Phase
    Frequency 50Hz 60Hz
    Voltage 110V 115V 220V 230V 110V 115V 220V 230V
    Current 3.00A 2.80A 1.50A 1.40A 2.50A 2.30A 1.25A 1.16A

    200W AC Gear Motor Output Torque

    Gear Ratio  3 5 10 15 20 25 30 40 45 50 60 70 80 90 100
    Output Speed (rpm) 50Hz 465 300 150 100 75 60 50 37 33 30 25 21 19 17 15
    60Hz 570 360 180 120 90 72 60 45 40 36 30 25 23 20 18
    Output Torque (kg.m)  50Hz 0.37 0.62 1.24 1.8 2.4 3 3.6 4.6 5.4 5.7 6.9 8 9.2 10.3 11.5
    60Hz 0.31 0.52 1.04 1.5 2 2.5 3 3.9 4.4 4.8 5.8 6.8 7.7 8.6 9.6

    200W Horizontal AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M X Y Z S P Q W T Weight (kg)
    3~10 18 290 40 110 135 65 9 16 50 14 129 132 88.5 110 18 30 25 5 20 6.5
    15~90 22 320 65 130 158 90 11 18.17 60 13 129 152 97.5 110 22 40 35 7 25 8
    100~200 28 355 90 140 178 120 11 20.8 70 14 129 178 116 110 28 45 40 7 31 10.5

    200W Vertical AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M Y Z S P Q W T Weight (kg)
    3~10 18 (B) 290 50 140 120 120 9 16 39 10 129 6 110 18 30 25 5 20 8
    15~90 22 320 148 185 176 165 11 18.17 45 12 129 3.5 110 22 40 35 7 25 8.8
    100~200 28 355 170 220 218 200 11 20.8 58 14 129 4 110 28 45 40 7 31 10.8

    Terminal Box Direction (From Output Shaft)

    Terminal Box Direction of 3-Phase AC Gear Motor, Horizontal/vertical

    AC Gear Motor Standard Installation

    • All the ATO 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
    • In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
    • In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

    Air hole direction of 3-Phase AC Gear Motor, Horizontal/vertical

    Tips: How to calculate torque for 3-phase AC gear motor?

    After calculating the gear ratio, convert the torque using the conditions of the machine used.

    1. First, calculate the torque of the conveyor pulley (T1)
      T1 = (μ × load × roller radius) ÷ η1
    2. Convert the result into the torque required by AC gear motor output shaft (T2)
      T2 = (T1 × sprocket reduction ratio) ÷ η2

    Calculation example

    1. T1 = μ × W (D/2) ÷ η1
      = 0.15 × 600 × (0.2/2) ÷ 0.95 = 9.5kgf-m
    2. T2 = (T1 × 1/2) ÷ η2
      = (9.5 × 1/2) ÷ 0.9 = 5.28kgf-m
    Existing reviews of 200W 3-Phase AC Gear Motor, Horizontal, Ratio 3~100
    Wonderful gear motor!
    My 20:1 gear motor works fine. I would like to know why the torque of the gear motor decreases as the speed increases?
    From: Rex | Date: 19/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    When the gear motor is rotating, the inductance of each phase of the motor winding will create a reverse electric potential. The higher the frequency, the higher the reverse electromotive force. Under its action, the phase current of the motor decreases with the increase of frequency (or speed), which leads to the decrease of torque.
