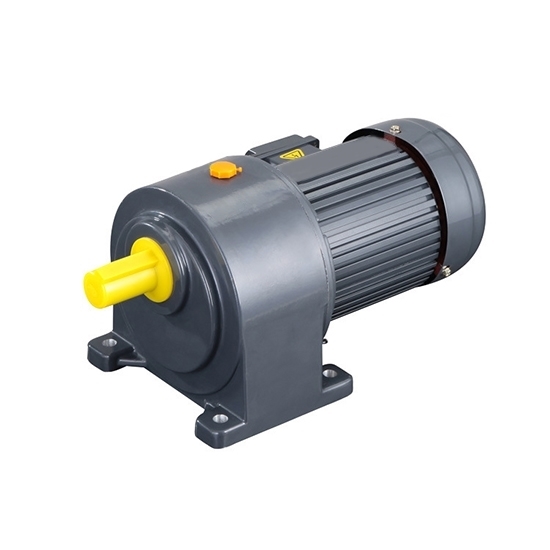

    100W 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    5 out of 5 based on 1 reviews | Write a review
    $362.62
    Cheap AC gear motor for sale. Rated power 100W, optional power supply 110V/220V/380V (3-phase or single phase), gear ratio 3:1 to 100:1 for selection, output torque 0.16-5.8 kg.m, output shaft diameter 18mm/22mm, installation direction horizontal or vertical. Adding brake for power cutting is available.
    SKU: ATO-GEAR-HV100
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Low price 100W 3-phase AC gear motor has optional gear ratios of 3~100:1, horizontal or vertical mounting is available. A higher gear ratio has a lower output speed (15~570 rpm) and higher torque (0.16-5.8 kg.m).

    Basic Specification

    Model ATO-CH18-100-25-S
    Rated Power 100W
    Rated Voltage Single-phase 110V, 50/60Hz
    Single-phase 220V, 50/60Hz
    3-phase 220V, 50/60Hz
    3-phase 380-415V, 50/60Hz
    Gear Ratio 3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 45:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1
    Duty Continuous running
    Working Environment Temperature 10℃~+40℃
    Humidity ≤90%
    Pole 4P (6P)
    Working Height ≤1000m
    Standard GB755/IEC-60034

    100W AC Gear Motor Load Current Value

    Phase 3-Phase
    Frequency 50Hz 60Hz
    Voltage 220V 380V 415V 440V 220V 380V 440V 460V
    Current 0.60A 0.40A 0.32A 0.30A 0.06A 0.40A 0.30A 0.29A
    Phase Single-Phase
    Frequency 50Hz 60Hz
    Voltage 110V 115V 220V 230V 110V 115V 220V 230V
    Current 1.60A 1.50A 0.80A 0.75A 1.34A 1.25A 0.66A 0.63A

    100W AC Gear Motor Output Torque

    Gear Ratio  3 5 10 15 20 25 30 40 45 50 60 70 80 90 100
    Output Speed (rpm) 50Hz 465 300 150 100 75 60 50 37 33 30 25 21 19 17 15
    60Hz 570 360 180 120 90 72 60 45 40 36 30 25 23 20 18
    Output Torque (kg.m)  50Hz 0.19 0.31 0.62 0.91 1.2 1.4 1.8 2.2 2.7 2.8 3.4 4.3 4.8 5.2 5.8
    60Hz 0.16 0.26 0.52 0.76 1 1.2 1.5 1.9 2.2 2.4 2.9 3.6 4 4.4 4.9

    100W Horizontal AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M X Y Z S P Q W T Weight (kg)
    3~50 18 255 40 110 135 65 9 16 50 14 129 132 88.5 110 18 30 25 5 20 5.6
    6~100 22 285 65 130 158 90 11 18.17 60 13 129 152 97.5 110 22 40 35 7 25 6.3

    100W Vertical AC Gear Motor Dimensions (Unit: mm)

    Dimensions of 3-Phase AC Gear Motor, Horizontal, Ratio 3~100

    Gear Ratio Shaft Diameter A D E F G H J K L M Y Z S P Q W T Weight (kg)
    3~50 18 (B) 255 50 140 120 120 9 16 39 10 129 6 110 18 30 25 5 20 5.8
    6~100 22 (B) 285 148 185 176 165 11 18.17 45 12 129 3.5 110 22 40 35 7 25 7.3

    Terminal Box Direction (From Output Shaft)

    Terminal Box Direction of 3-Phase AC Gear Motor, Horizontal/vertical

    AC Gear Motor Standard Installation

    • All the ATO 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
    • In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
    • In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

    Air hole direction of 3-Phase AC Gear Motor, Horizontal/vertical

    Tips: Gear ratio calculation for 3-phase AC gear motor.

    To select the reduction ratio of 3-phase AC gear motor, we use the necessary revolutions number (rpm) of the input shaft and output shaft.

    1. Calculate the rpm of conveyor belt rollers (N1)
      N1 = Conveying speed ÷ (roller diameter × π)
    2. Calculate the output shaft rpm of 3-phase AC gear motor (N2)
      N2 = N1 × (number of sprocket gear ÷ gear number of motor)
    3. Calculate the gear ratio with a 3φ.60Hz motor (i)
      i = the output shaft rpm ÷ the input shaft rpm (motor rpm N)

    Calculation example

    1. N1 = V ÷ (D × π) = 9.5 ÷ (0.2×3.14) = 15r/min (rpm)
    2. N1 = N1 × (26/13) = 15 × 2/1 = 30r/min (rpm)
    3. i = N2/N1 = 30/1800 = 1/60 (motor rpm)
    Existing reviews of 100W 3-Phase AC Gear Motor, Horizontal, Ratio 3~100
    High quality and good value
    What is the working temperature of this gear motor?
    From: Noel | Date: 19/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    ATO gear motor can work normally at the temperature of 10℃~+40℃. The high temperature of the gear motor will first demagnetize the magnetic material of the motor, which will lead to the decrease of torque and even to the loss of step. So, the material of the motor is very important. ATO AC gear motor is made of excellent heat dissipation material and equipped with full copper coil, which ensures a long service life.
