3 Phase Voltage Monitor Relay, 3-wire 127V-265V/4-wire 220V-460V

5 out of 5 based on 1 reviews | Write a review

$68.39

The three-phase voltage monitoring relay has SPDT (2 C/O) contacts, accurate pressure measurement, and is suitable for quickly cutting off or connecting the circuit when the power supply voltage exceeds or falls below the set range for 3-wire AC 127V-265V/ 4-wire AC 220V-460V to ensure the safe and reliable operation of the power system. The 3-phase relay is equipped with LED lights to indicate the working status and is lightweight and easy to install.

Monitoring Voltage *

SKU: ATO-MR-GRV810

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

The 3-phase voltage monitor relay has an LED indicator to indicate the working status, with a normal/ emergency power switch, which can effectively detect voltage imbalance and protect the equipment from accidents caused by the reverse operation. There are two open and two closed contacts, and the flame-retardant shell is reinforced. This three-phase relay has 8 rated voltages that are adjustable, with a wide range of applications, and can be used for field equipment, agricultural equipment, refrigerated vehicle lights, and mobile equipment connection control.

Feature

Controls its own supply voltage (True RMS measurement).
Set 8-level rated operating voltage through the knob.
Set the reset delay time through the knob.
2C/O output.
Measuring frequency range: 45Hz-65Hz.
Voltage measurement accuracy <1%.
Relay status is indicated by LED.
2-MODULE, DIN rail mounting.
Ultra-small size, only 36mm width, 35mm rail installation.

Specification

Model	ATO-GRV8-10M265	ATO-GRV8-10M460
Function	Monitor L-N voltage (3-phase 4-wire system)	Monitor L-L voltage (3-phase 3-wire)
Monitoring Terminals	L1-L2-L3-N	L1-L2-L3
Supply Terminals	L1-L2-L3-N	L1-L2-L3
Voltage Range	127-132-138-220-230-240-254-265 (P-N)	220-230-240-380-400-415-440-460 (P-P)
Rated Surge Withstand Voltage	2.5kV
Rated Insulation Voltage	500
Rated Supply Frequency	45-65Hz
Measuring Range	101-318V	176-552V
Threshold Adjustment Voltage	2%-20% of unselected
Adjustment of Asymmetry Threshold	5%-15%
Hysteresis	2%
Phase Failure Voltage	70% of the rated voltage
Supply Indication	Green LED
Time Delay	Adjustable 0.1 s - 10 s, 10%
Measurement Error	≤1%
Run-up Delay at Power-up	Adjustable 0.1 s - 10 s, 10%
Konb Setting Accuracy	10% of scale value
Reset Time	Adjustable 0.1 s - 10 s, 10%
Temperature Coefficient	0.05%°C, at=20°C (0.05%°F, at=68°F)
Output	2×SPDT
Current Rating	8A/AC1
Switching Voltage	250VAC/ 24VDC
Min. breaking Capacity DC	500MW
Output Indication	Red LED
Mechanical Life	1×10⁷
Electrical Life (AC1)	1×10⁵
Operating Temperature	-20°℃ to +55℃ (-4°F to 131°F)
Storage Temperature	-35℃ to +75℃ (-22°F to 158°F)
Mounting/ DIN rail	Din rail EN/ IEC 60715
Protection Degree	lP40 for front panel/ IP20 terminals
Installation	35mm rail installation
Operating Position	Any
Overvoltage Cathegory	III.
Pollution Degree	2
Max. cable Size (mm²)	Solid wire max.1×2.5 or 2×1.5/ with sleeve max.1×2.5 (AWG 12)
Dimensions	90mm×36mm×64mm
Weight	100g
Standards	EN 60255-1, lEC60947-5-1

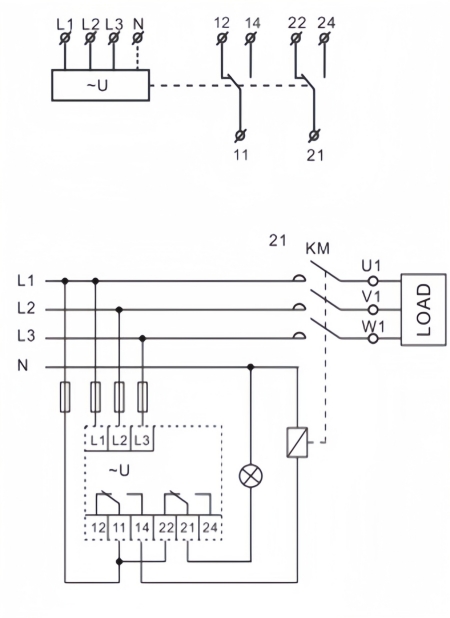

Wiring Diagram

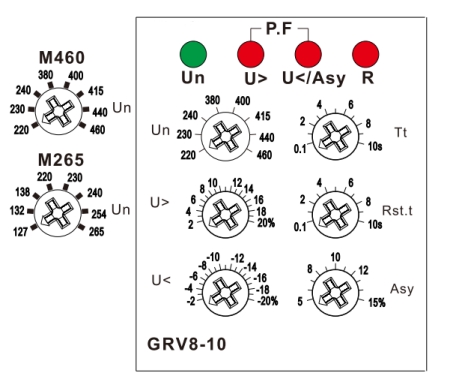

Panel Diagram

Function Diagram

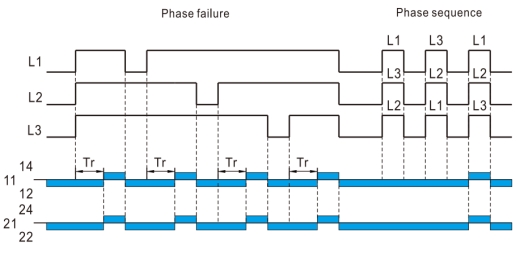

Phase failure and phase sequence function diagram

Asymmetry function diagram

To: Overvoltage threshold tripping delay.
Tu: Undervoltage threshold tripping delay.
Ta: Asymmetry threshold tripping delay.
Tr: Power-up delay.

Overvoltage and undervoltage function diagram

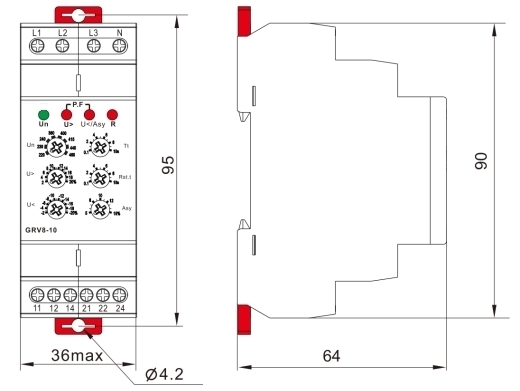

Dimensions (mm)

Tips: Maintenance of 3-Phase voltage monitor relay

Use a soft brush or air blow gun to remove dust from the outside and inside of the relay and maintain a dry and clean environment.

Tighten the screws and regularly replace aging parts such as worn contacts or coils to keep the relay in normal working condition. Regularly check the contact point pressure and arc marks of the relay to ensure that the contact point pressure is appropriate and there is no abnormal wear or corrosion.

Ensure that the power supply voltage is stable to prevent the relay from bearing a current load exceeding the rated capacity to prevent overload damage. The working environment temperature should be appropriate. If it exceeds the specified temperature range, heat dissipation measures need to be taken.

3-Phase Monitoring Relay Phase Failure & Phase Sequence Testing

In this video, we will give you a test of ATO 3-phase monitoring relay on phase failure and phase sequence, and the relay does the job at such these cases to protect the motor. In addition, this multi-purpose monitoring relay has other monitoring functions such as undervoltage, overvoltage, voltage unbalance, timer & counter.

Working Principles 3-Phase Monitoring Relay

3-phase Monitoring Relay Phase Failure and Sequence Test

In this video, the phase failure and sequence test of the 3-phase monitoring relay is introduced.

Electromagnetic Switches: Relays VS. Contactors

In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

Relays vs Circuit Breakers: What’s the Difference

In this video, we've described the difference between a relay and a circuit breaker as well as explaining their basic working and operation by means of animation. If you find this video helpful, please LIKE it and SHARE with your friends. Don't forget to check out the purchase links above if any featured items're of your interest.
