    3 Phase Monitoring Relay, SPDT, Phase Failure/Undervoltage/Overvoltage

    $88.89

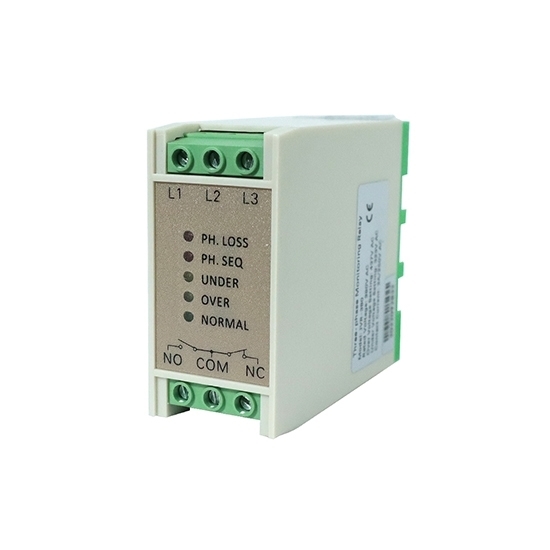

    Low price 3 phase voltage monitoring relay with SPDT (1 C/O) contact, used for monitoring phase failure/loss, phase sequence, phase unbalance, overvoltage and undervoltage at the rated voltage of AC 220V, 380V, 440V, 460V, or 480V 50/60Hz, LED lights indicating working state, compact size and DIN rail mounting, provide a safe protection for electric motors, air compressors, pumps and other equipment or devices.
    SKU: ATO-MR-JVR
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Three phase monitoring relay with SPDT (1 C/O) contact, performs the monitoring functions including phase loss, phase sequence, phase unbalance, overvoltage and undervoltage in the 3 phase AC power system of 220V AC, 380V AC, 440V AC, 460V AC, or 480V AC 50/60Hz. The phase failure/voltage monitoring relay is widely applied in air compressors, electric motors, pumps, fans, air-conditioning system, blowers, lifts, elevators, cranes, refrigeration units, mining excavators and conveyors, etc.

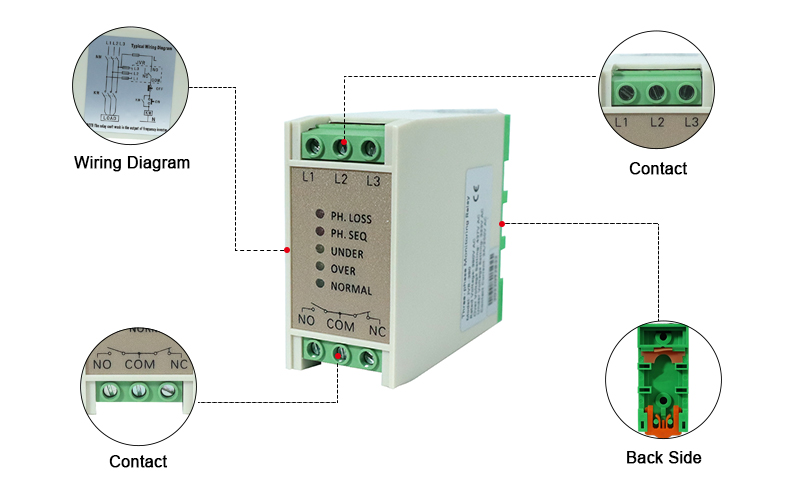

    Features

    • Compact size in DIN rail mounting
    • Three-phase monitoring of phase sequence, phase loss (phase failure), phase unbalance, overvoltage and undervoltage
    • Powered by the measuring circuit
    • Monitoring relay with 1 C/O (SPDT) contacts
    • 5 LED lights for status indication

    Specification

    Model ATO-JVR
    Measuring Circuit 3-Phase AC: L1, L2, L3
    Monitoring Functions Phase Sequence (Reversal), Phase Loss (Failure), Phase Unbalance
    Overvolatege, Undervoltage
    Rated Voltage (line voltage) (Optional) 220V AC, 380V AC, 440V AC, 460V AC, 480V AC 50/60Hz
    Voltage Setting Range (Optional) Model Suffix Undervoltage Overvolatege
    Blank -15% +15%
    A -10% +10%
    B -10% +12.5%
    C -12.5% +15%
    Voltage Unbalance Threshold 15% fixed
    Delay Time for Undervoltage & Overvoltage 5-8s fixed
    Delay Time for Phase Loss, Phase Unbalance, Phase Sequence 1-2s fixed
    Reset Time 0.5s fixed
    Indicator LED indicating phase sequence, phase loss, overvolatege, undervoltage, and normal status
    Output Contacts 1 C/O (SPDT or 1 Form C)
    Contact Capacity 3A, 250V AC (resistive load)
    Degree of Protection IP 20
    Working Conditions Operating Temperature -25℃~65℃
    Humidity ≤85%RH, non-condensing
    Mechanical Durability 1,000,000 cycles
    Dielectric Strength >2kVAC 1min
    Mounting 35mm DIN rail
    Weight 110g
    Dimensions (H*W*D) 68*30*76mm

    Wiring Diagram 3-phase Voltage Phase Monitoring Relay SPDT Wiring Diagram

    Monitoring relay contacts position shown in "Power-off" condition

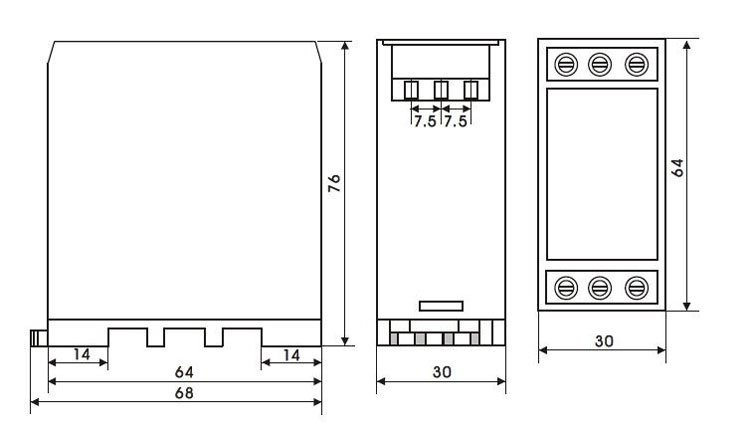

    Dimensions (Unit: mm)

    3-Phase Voltage Phase Monitoring Relay SPDT Dimension

    Tips: Working Principle of Phase Sequence Monitoring Relay

    Sampling three-phase power supply for processing, when the phase sequence of the power supply matches the phase sequence of the input of the phase sequence monitoring relay, the output of the relay is turned on, and the main control circuit of the device is turned on.

    When the phase sequence of the power supply changes, the phase sequence does not match, and the output of the phase sequence monitoring relay cannot be turned on, thereby protecting the device and avoiding accidents. The other type of phase monitoring relay uses digital micro-core technology products, which can realize automatic phase sequence identification and automatic phase sequence conversion to ensure that the motor rotates in a constant phase sequence.

    The three-phase power supply is connected to the U, V, W (some are R, S, T or L1, L2, L3) of the monitoring relay in sequence. The phase sequence monitoring relay generally have one normally open and one normally closed auxiliary contacts. For the connection to the control loop, the specific connection of normally open or normally closed contacts should be based on the control principle or wiring diagram. When the phase sequence is wrong or the phase is losing, the auxiliary contact of the relay acts from normally open to normally closed, and normally closed to normally open.

    3-Phase Monitoring Relay Phase Failure & Phase Sequence Testing

    In this video, we will give you a test of ATO 3-phase monitoring relay on phase failure and phase sequence, and the relay does the job at such these cases to protect the motor. In addition, this multi-purpose monitoring relay has other monitoring functions such as undervoltage, overvoltage, voltage unbalance, timer & counter.
