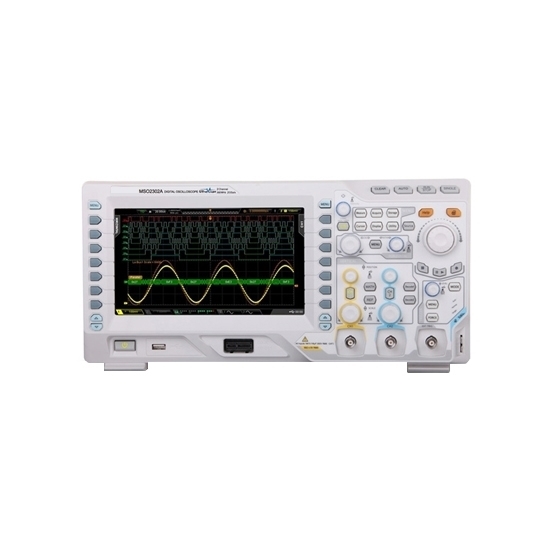

300 MHz Digital Oscilloscope, 2 Channels, 2 GSa/s

300 MHz Digital Oscilloscope Features

• Bandwidth up to 300 MHz
• 2 analog channels, 16 digital channels (MSO model) with 2 GSa/s sample rate
• Lower noise floor, 500 uV/div~10 V/div wider vertical range
• Waveform capture rate up to 50,000 wfms/s
• A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
• 8 inch TFT (800x480) WVGA and 256 level intensity grading display

Models and Key Specifications

DS/MSO2000A Series Rigol Digital Oscilloscope Specs PDF

Digital Oscilloscope Detail
Tips: AC calibration method for oscilloscope probe
High performance oscilloscope for testing high speed signal is very difficult to ensure that the amplitude and phase frequency response is absolutely flat because of the wide bandwidth. In order to improve the measurement accuracy, the frequency response of the band is required, so that the oscilloscope and the probe test system have the consistent amplitude and frequency response in the whole bandwidth. DC calibration cannot modify frequency response. The probe AC calibration method is to use the network analyzer to test the S parameters of the active probe amplifier, and to correct the frequency response of the probe by testing the loss of each frequency point. The oscilloscope manufacturer will test the S parameters of each probe amplifier and store it in the memory inside the probe. When the user USES the probe, the oscilloscope reads the probe S parameter for AC calibration.
